Multipurpose Throughhole Kit
Plated Through holes

Plated Through Hole Kit
Machine Run and Hand Assembly

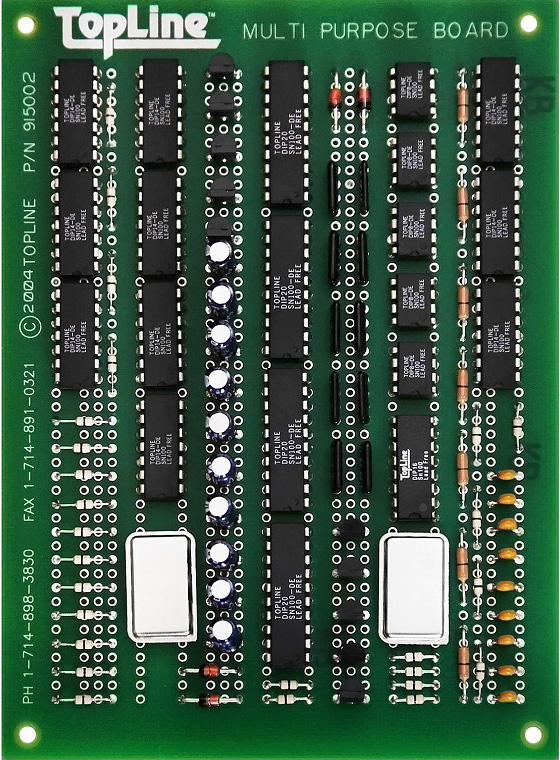

Enlarge: Top Side After Assembly
Board Size 4"x5.5" (10x14cm)

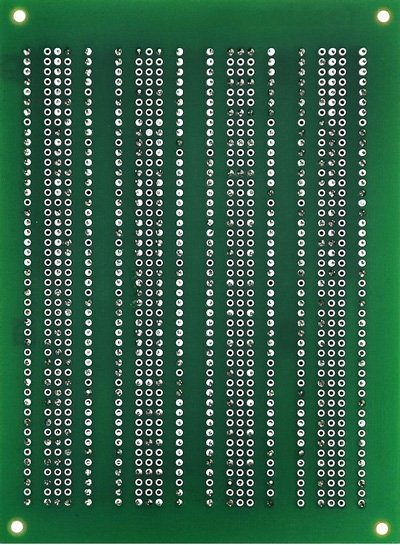

Click Solder Side Bottom After Assembly




Kit includes the PC Board and a wide assortment of through hole components. Includes PDIP, axial lead and radial leasd components. You decide where to insert the components. Kits are available for machine run or manual.

Board Features:

  • Choice of Final finish:
        • HASL SnPb
        • Immersion Tin (Sn)
        • ENIG (Ni/Au)Gold
        • OSP Copper
        • Immersion Silver
  • LPI Solder Mask - PSR4000 AUS5
  • FR4 Tg=170°C
  • Size - 4"x5.5" (10x14cm)
  • Thickness 0.062" (1.6mm)
  • 2-Layer - Double Sided
  • Solderable Land Pads Ø0.050" (Ø1.27mm)
  • Plated Holes Ø0.035" (Ø0.88mm)
  • Plated Holes Per Board: 920x
  • Hole Pitch CL 0.10" , 0.20" , 0.30"
  • RoHS Compliant
  • Tooling Holes .125" (3.17mm)
  • Without Fiducials

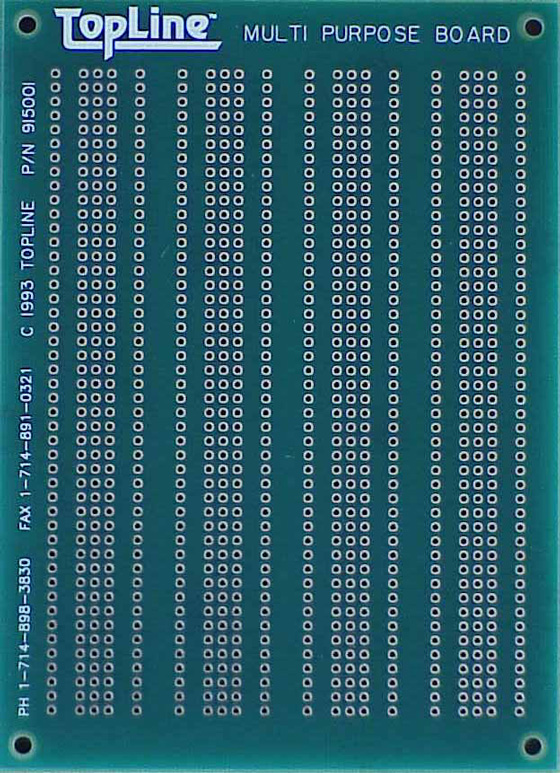

    Enlarge:  Top Side Before Assembly
    Click Pad Details

  •
      BOM Kit Contents
    Multipurpose Throughhole Kit

    Kit Quantities Available
    Hand Assembly | Machine Run
    Kit BOM Components
    Per
    Board
    Order #
    916X00
    1 Kit
    Order #
    916X10
    10 Kits
    Order #
    916X25
    25 Kits
    Order #
    916X50
    50 Kits
    Order #
    916X100
    100 Kits
    |
    |
    |
    Order #
    915X50
    50 Kits
    Order #
    915X100
    100 Kits
    Board HASL - SnPb
    X = 0
    4th Digit Order#
      1 10 25 50 100 |
    |
    |
    50 100
    Board - Tin (Sn)
    X = 2
    4th Digit Order#
    RoHS Pb-Free 1 10 25 50 100 |
    |
    |
    50 100
    Board Silver (Ag)
    X = 6
    4th Digit Order#
    RoHS Pb-Free 1 10 25 50 100 |
    |
    |
    50 100
    Board OSP (Cu)
    X = 8
    4th Digit Part#
    RoHS Pb-Free 1 10 25 50 100 |
    |
    |
    50 100
    Board - ENIG
    Gold (Ni/Au)
    X = 9
    4th Digit Order#
    RoHS Pb-Free 1 10 25 50 100 |
    |
    |
    |
    50 100
    8-PIN DIP 5 5 50 100 200 400 | 200 400
    14-PIN DIP 5 5 50 100 200 400 | 200 400
    16-PIN DIP 5 5 50 100 200 400 | 200 400
    SIP R-Network 10 10 50 100 200 400 | 200 400
    Oscillator 2 2 20 40 100 200 | 100 200
    Radial Capacitor 10 10 100 250 500 1000 | 500 1000
    1/8W Axial Resistor 25 25 500 1000 2500 5000 | 2500 5000
    1/4W Axial Resistor 25 50 500 1000 2500 5000 | 2500 5000
    1/2W Axial Resistor 25 25 200 1000 2000 4000 | 2000 4000
    Total Components - 140 1500 3700 8000 17000 | 8000 17000

    Download Solder Paste Gerber & Parts Placement Data
    Step 1. Click Here for TopLine's Document Center. Sign up and Log in.
    Step 2. Click link "Gerber Files"
    Step 3. Click link "915001a" Multi Purpose Throughhole
    Step 4. Download files

    Kit Order Number System
    916 2 # #
    Series Board Finish Quantity
    915=Machine Run
    916=Hand Assembly
    4"x5.5" (10x14cm)
    0 = HASL
    2 = Tin (Sn)
    6 = Silver (Ag)
    8 = OSP (Cu)
    9 = ENIG Gold (NiAu)
    00 = 01 Kits
    10 = 10 Kits
    25 = 25 Kits
    50 = 50 Kits
    99 = 100 Kits
    100 = 100 Kits

    Other quantites available.

    Spare Boards
    Board Finish Lead-Free
    Pb-Free
    Order Number
    HASL (SnPb) Non RoHS 915001
    Tin (Sn) RoHS 915002
    Silver (Ag) RoHS 915006
    OSP (Cu) RoHS 915008
    ENIG Gold (Ni/Au) RoHS 915009


    Spare Parts
    Plating Lead-Free
    Pb-Free
    SnPb
    Tin/Lead
    Tin
    Sn
    RoHS Ask for available
    alternative components
    Tin/Lead
    SnPb
    Non-RoHS Ask for available
    alternative components
