Challenger 2 Kit
Daisy Chain BGA and SMT

Go to: More Kits

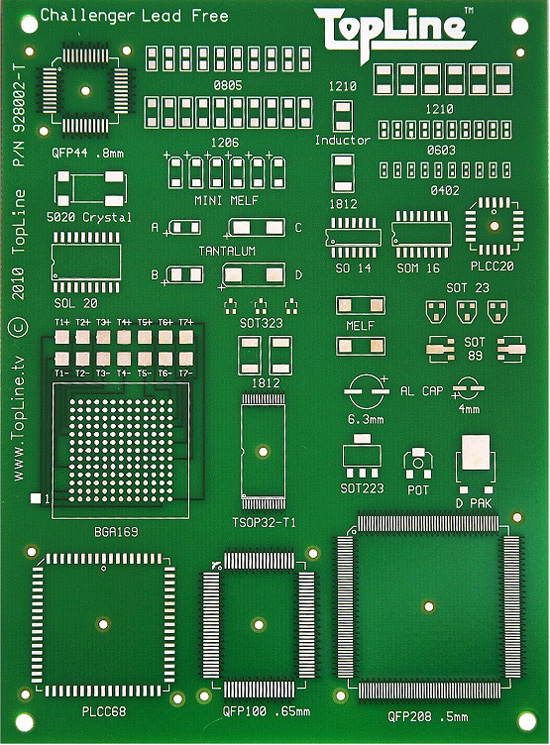

Enlarge: Bare Board
Board Size 4"x5.5" (10x14cm)
Same pattern repeated on bottom side.



TopLine Challenger 2 Kit. Top side has daisy chain BGA, QFP, SOIC, SOT, PLCC, SMT chips and more. Test points for checking continuity after mounting daisy chain BGA169 to verify correct assembly with a simple ohm-meter.

Board Features:

  • Choice of Final finish:
        • Immersion Tin (Sn)
        • ENIG (Ni/Au)Gold
        • OSP Copper
        • Immersion Silver
        • HASL SnPb
  • LPI Solder Mask - PSR4000 AUS5
  • FR4 Tg=170°C
  • Size - 4"x5.5" (10x14cm)
  • Thickness 0.062" (1.6mm)
  • 2-Layer Board
  • Lead Free RoHS Version
  • Plated Throughholes (PTH)
  • Tooling Holes .125" (3.17mm)
  • IPC Fiducials - 0.062" (1.57mm)

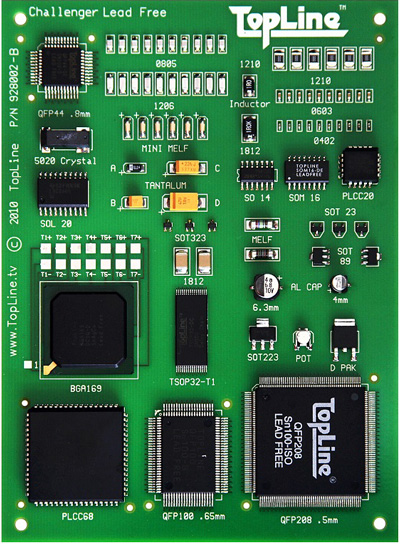

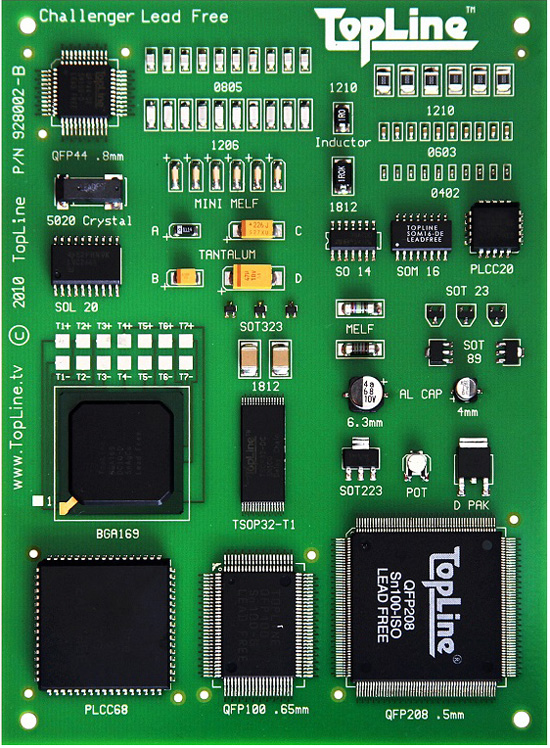

    Enlarge:  Shown After Assembly

    •
      BOM Kit Contents
    Challenger 2 Kit
    Kit Quantities Available
    Kit BOM Components
    Per
    Board
    Order #
    928X00
    1 Kit
    Order #
    928X10
    10 Kits
    Order #
    928X25
    25 Kits
    Order #
    928X50
    50 Kits
    Order #
    928X99
    100 Kits
    Board HASL - SnPb
    X = 0
    4th Digit Order#    		 Tin-Lead 1 10 25 50 100
    Board - Tin (Sn)
    X = 2
    4th Digit Order#    		 RoHS Pb-Free 1 10 25 50 100
    Board Silver (Ag)
    X = 6
    4th Digit Order#    		 RoHS Pb-Free - - 25 50 100
    Board OSP (Cu)
    X = 8
    4th Digit Part#    		 RoHS Pb-Free - - 25 50 100
    Board - ENIG
    Gold (Ni/Au)
    X = 9
    4th Digit Order#    		 RoHS Pb-Free 1 10 25 50 100
    BGA169
    Size 23x23mm
    Pitch 1.5mm
    With Daisy Chain    		 1 1 10 25 50 100
    QFP208
    Size 28x28mm
    Pitch 0.5mm (19.7mil)
    		 1 1 10 25 50 100
    QFP100
    Size 14x20mm
    Pitch 0.65mm (25.6mil)    		 1 1 10 25 50 100
    QFP44
    Size 10x10mm
    Pitch 0.8mm (30mil)    		 1 1 10 25 50 100
    TSOP32 (I)
    Size 8x20mm
    Pitch 0.5mm (19.7mil)    		 1 1 10 25 50 100
    PLCC20
    Pitch 1.27mm (50mil)    		 1 2 10 50 50 100
    PLCC68
    Pitch 1.27mm (50mil)    		 1 1 10 25 50 100
    SO14
    Pitch 1.27mm (50mil)    		 1 1 10 25 50 100
    SOM16
    Pitch 1.27mm (50mil)    		 1 1 10 25 50 100
    SOL20
    Pitch 1.27mm (50mil)    		 1 1 10 25 50 100
    SOT23 3 3 30 500 500 500
    SOT89 2 10 20 100 100 200
    SOT223 1 1 10 25 50 100
    SOT323 3 3 25 300 300 300
    DPAK
    TO-252AA    		 1 1 10 25 50 100
    Crystal 1 1 10 25 50 100
    TANTALUM A
    EIA 3216    		 1 1 10 25 50 100
    TANTALUM B
    EIA 3528    		 1 1 10 25 50 100
    TANTALUM C
    EIA 6032    		 1 1 10 25 50 100
    TANTALUM D
    EIA 7343    		 1 1 10 25 50 100
    Aluminum Cap 4mm 1 1 10 25 50 100
    Aluminum Cap 6.3mm 1 1 10 25 50 100
    0402 Chip
    Metric 1005    		 10 10 100 250 500 1000
    0603 Chip
    Metric 1608    		 10 10 100 250 500 1000
    0805 Chip
    Metric 2012    		 10 10 100 250 500 1000
    1206 Chip
    Metric 3216    		 10 10 100 250 500 1000
    1206 mini MELF
    Metric 3216    		 6 6 60 150 300 600
    1210 Chip
    Metric 3225    		 6 6 60 150 300 600
    1210 Inductor
    Metric 3225    		 1 1 10 25 50 100
    1812 Chip
    Metric 4532    		 2 2 20 50 100 200
    1812 Inductor
    Metric 4532    		 1 1 10 25 50 100
    1812 Potentiometer
    Metric 4mm    		 1 1 10 25 50 100
    2308 MELF
    Metric 5922    		 2 2 20 50 100 200


    Free Download Solder Paste Gerber & Parts Placement Data
    Step 1. Click Here for TopLine's Document Center. Sign up and Log in.
    Step 2. Click link "Gerber Files"
    Step 3. Click link "928001a" Challenger 2
    Step 4. Download files


    Kit Order Number System
    928 2 # #
    Series Board Finish Quantity
    Challenger 2

    Board Size:
    4"x5.5" (10x14cm)    		 0 = HASL
    2 = Tin (Sn)
    6 = Silver (Ag)
    8 = OSP (Cu)
    9 = ENIG Gold (NiAu)    		 00 = 1 Kit
    10 = 10 Kits
    25 = 25 Kits
    50 = 50 Kits
    99 = 100 Kits

    Other quantites available.

    Spare Boards
    Board Finish Lead-Free
    Pb-Free    		 Order Number
    HASL (Sn/Pb) Tin-Lead 928001
    Tin (Sn) RoHS 928002
    Silver (Ag) RoHS 928006*
    OSP (Cu) RoHS 928008*
    ENIG Gold (Ni/Au) RoHS 928009
      *Check Availability


    Spare Parts
    Full range of RoHS Lead Free and Tin-Lead spare parts available.
    Ask for quote on Spare Parts Kit for second side of board.
    Contact TopLine for to discuss your requirements.
