Rotational Placement Kit
SMT Components placed 360° on board

Go to: 914xxx Mixed Technology

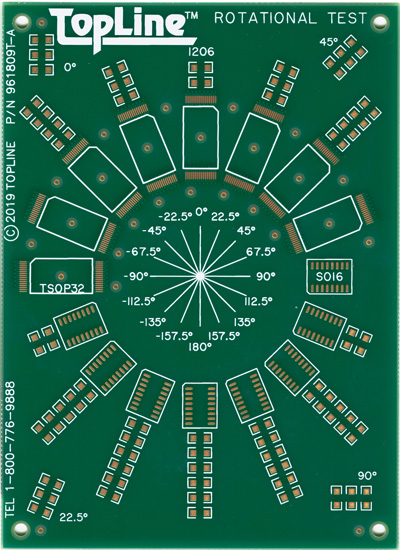

Enlarge: Bare Board
Board Size 4"x5.5" (10x14cm)

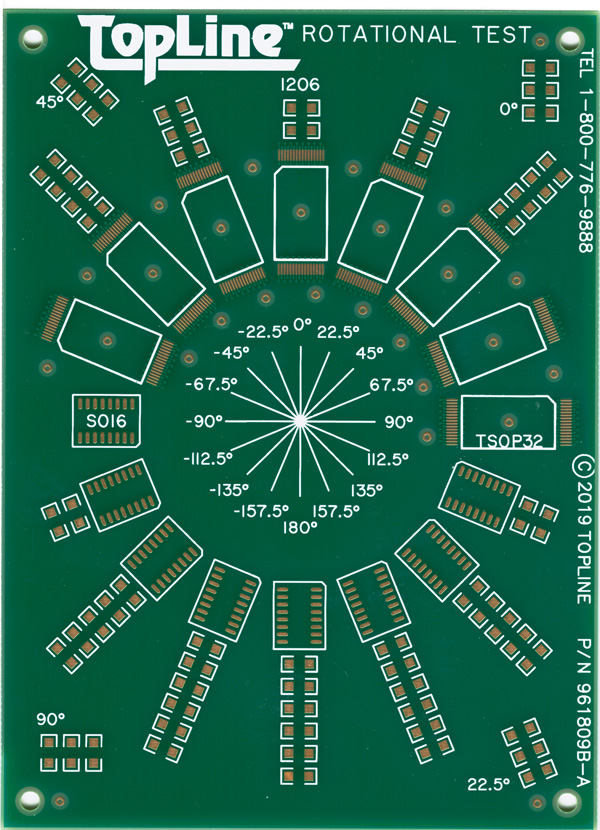

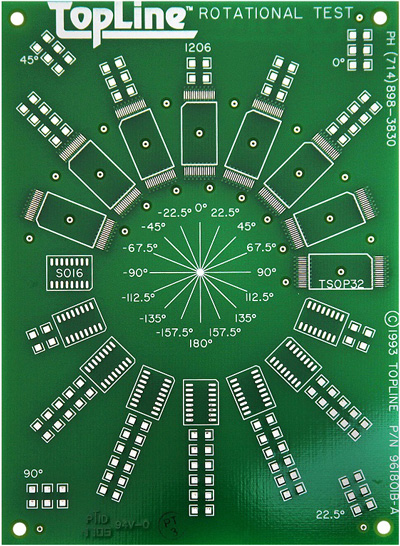

Same pattern repeated on bottom side.




TopLine Rotational Placement Kit. Each side has pads for TSOP(I), SOIC and chip Resistors. Components are place radially around a center focal point, spaced on 22.5° angles.

Board Features:

  • Choice of Final finish:
        • Immersion Tin (Sn)
        • ENIG (Ni/Au)Gold
        • OSP Copper
        • Immersion Silver
        • HASL SnPb
  • LPI Solder Mask - PSR4000 AUS5
  • FR4 Tg=170°C
  • Size - 4"x5.5" (10x14cm)
  • Thickness 0.062" (1.6mm)
  • 2-Layer Board
  • Lead Free RoHS Version
  • Plated Throughholes (PTH)
  • Tooling Holes .125" (3.17mm)
  • IPC Fiducials - 0.062" (1.57mm)

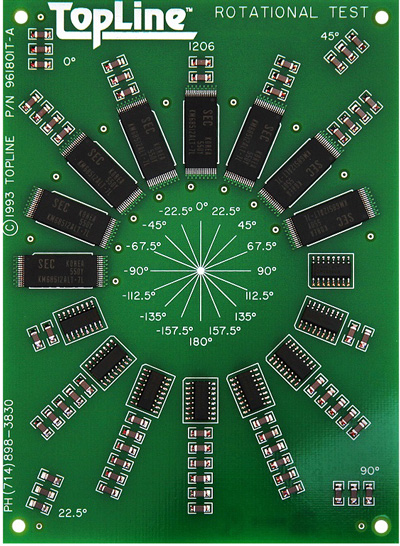

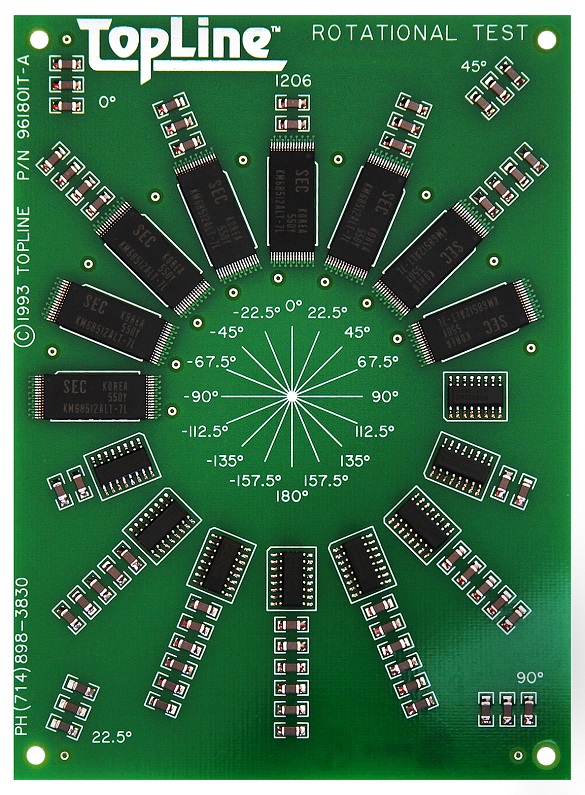

    Enlarge:  Top (Shown After Assembly)

  •
    Tin-Lead (Non-RoHS) BOM Kit Contents
    Rotational Placement Kit

    Kit Quantities Available
    SnPb Kit BOM Components
    Per
    Board

    Order #
    961800
    1 Kit

    Order #
    961803
    3 Kits

    Order #
    961806
    6 Kits

    Order #
    961812
    12 Kits

    Order #
    961825
    25 Kits
    Board HASL - SnPb Tin-Lead 1 3 6 12 25
    TSOP32 (I)
    Size 8x20mm
    Pitch 0.5mm (19.7mil)
    8 8 24 48 96 200
    SO16
    Pitch 1.27mm (50mil)
    8 8 24 48 96 200
    1206 Chip
    Metric 3.2x1.6mm
    60 60 180 360 720 1500

    Lead Free (RoHS) BOM Kit Contents
    Rotational Placement Kit

    Kit Quantities Available
    Lead Free Kit BOM Components
    Per
    Board

    Order #
    9618X1
    12 Kit

    Order #
    9618X2
    25 Kits

    Order #
    9618X4
    50 Kits
    Board - Tin (Sn)
    X = 2
    5th Digit Order#
    RoHS Pb-Free 12 25 50
    Board Silver (Ag)
    X = 6
    5th Digit Order#
    RoHS Pb-Free 12 25 50
    Board OSP (Cu)
    X = 8
    5th Digit Part#
    RoHS Pb-Free 12 25 50
    Board - ENIG
    Gold (Ni/Au)
    X = 9
    5th Digit Order#
    RoHS Pb-Free 12 25 50
    TSOP32 (I)
    Size 8x20mm
    Pitch 0.5mm (19.7mil)
    8 48 96 200
    SO16
    Pitch 1.27mm (50mil)
    8 48 96 200
    1206 Chip
    Metric 3.2x1.6mm
    60 360 720 1500


    Free Download Solder Paste Gerber & Parts Placement Data
    Step 1. Click Here for TopLine's Document Center. Sign up and Log in.
    Step 2. Click link "Gerber Files"
    Step 3. Click link "961801a" Rotational
    Step 4. Download files


    Tin Lead HASL
    Kit Order Number System
    9618 00
    Series Quantity
    Rotational

    Board Size:
    4"x5.5" (10x14cm)
    00 = 1 Kit
    03 = 3 Kits
    06 = 6 Kits
    12 = 12 Kits
    25 = 25 Kits

    Other quantites available.

    Lead Free
    Kit Order Number System
    9618 X #
    Series Board Finish Quantity
    Rotational

    Board Size:
    4"x5.5" (10x14cm)
    2 = Tin (Sn)
    6 = Silver (Ag)
    8 = OSP (Cu)
    9 = ENIG Gold (NiAu)
    1 = 12 Kits
    2 = 25 Kits
    4 = 50 Kits

    Other quantites available.

    Spare Boards
    Board Finish Lead-Free
    Pb-Free
    Order Number
    HASL (Sn/Pb) Tin-Lead 961801
    Tin (Sn) RoHS 961802
    Silver (Ag) RoHS 961806*
    OSP (Cu) RoHS 961808*
    ENIG Gold (Ni/Au) RoHS 961809
      *Check Availability


    Spare Parts
    Full range of RoHS Lead Free and Tin-Lead spare parts available.
    Ask for quote on Spare Parts Kit for second side of board.
    Contact TopLine for to discuss your requirements.
