CERQUAD and CQFP |
 | |
|
|||||||
|
|
Nbr Leads |
Pitch mil |
Pitch mm |
Body Size |
Lead Style |
Order Number Standard Dummy With Lid Attached |
Order Number with Daisy Chain and Lid Attached |
Order Number Open Package without Lid |
| 24 | 40 mil | 1.0mm | .27" SQ | Flat | CERQUAD24F40 | CERQUAD24F40-DE | CERQUAD24F40-N |
| 24 | 50 mil | 1.27mm | .40" SQ | Flat | CERQUAD24F50 | CERQUAD24F50-DE | CERQUAD24F50-N |

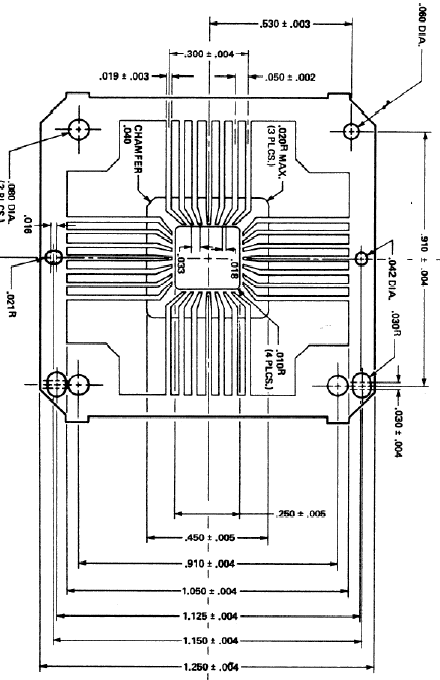

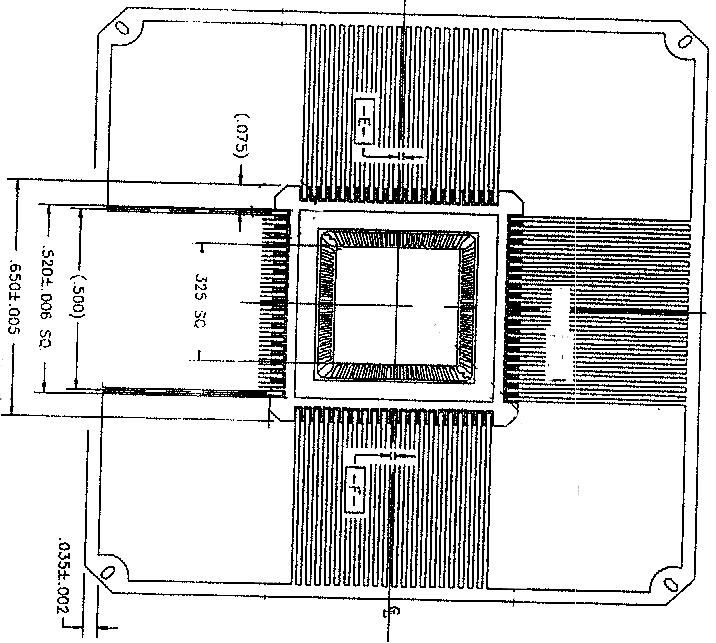

| 28 | 50 mil | 1.27mm | .45" SQ | Flat | CERQUAD28F50 | CERQUAD28F50-DE | CERQUAD28F50-N |
| 40 | 40 mil | 1.0mm | .48" SQ | Flat | CERQUAD40F40 | CERQUAD40F40-DE | CERQUAD40F40-N |
| 44 | 31.5 mil | 0.8mm | .394" SQ | Gull | CERQUAD44G30 | CERQUAD44G30-DE | CERQUAD44G30-N |
| 44 | 40 mil | 1.0mm | .551" SQ | Flat | CERQUAD44F40 | CERQUAD44F40-DE | CERQUAD44F40-N |
| 44 | 40 mil | 1.0mm | .551" SQ | Gull | CERQUAD44G40 | CERQUAD44G40-DE | CERQUAD44G40-N |
| 44 | 50 mils | 1.27mm | .65" SQ | Flat | CERQUAD44F50 | CERQUAD44F50-DE | CERQUAD44F50-N |
| 52 | 40 mil | 1.0mm | .62" SQ | Flat | CERQUAD52F40 | CERQUAD52F40-DE | CERQUAD52F40-N |
| 52 | 50 mils | 1.27mm | .75" SQ | Flat | CERQUAD52F50 | CERQUAD52F50-DE | CERQUAD52F50-N |
| 64 | 31.5 mil | 0.8mm | .551" SQ | Flat | CERQUAD64F30 | CERQUAD64F30-DE | CERQUAD64F30-N |
| 64 | 31.5 mil | 0.8mm | .551" SQ | Gull | CERQUAD64G30 | CERQUAD64G30-DE | CERQUAD64G30-N |
| 64 | 40 mil | 1.0mm | 14 x 20mm | Gull | CERQUAD64G40 | CERQUAD64G40-DE | CERQUAD64G40-N |
| 68 | 25 mil | 0.635mm | .482" SQ | Flat | CERQUAD68F25 | CERQUAD68F25-DE | CERQUAD68F25-N |
| 68 | 50 mil | 1.27mm | .872" SQ | Flat | CERQUAD68F50U | CERQUAD68F50-DE | CERQUAD68F50-.87NU |
| 68 | 50 mil | 1.27mm | .95" SQ | Flat | CERQUAD68F50 | CERQUAD68F50-DE | CERQUAD68F50-N |
| 76 | 50 mils | 1.27mm | 1.05" SQ | Flat | CERQUAD76F50 | CERQUAD76F50-DE | CERQUAD76F50-N |
| 80 | 25.6 mil | 0.65mm | .551" SQ | Gull | CERQUAD80G25 | CERQUAD80G25-DE | CERQUAD80G25-N |
| 80 | 31.5 mil | 0.8mm | 14mm X 20mm | Gull | CERQUAD80G30 | CERQUAD80G30-DE | CERQUAD80G30-N |
| 84 | 25mil | 0.635mm | .65" SQ | Flat | CERQUAD84F25 | CERQUAD84F25-DE | CERQUAD84F25-N |
| 84 | 40 mil | 1.0mm | .92" SQ | Flat | CERQUAD84F40 | CERQUAD84F40-DE | CERQUAD84F40-N |

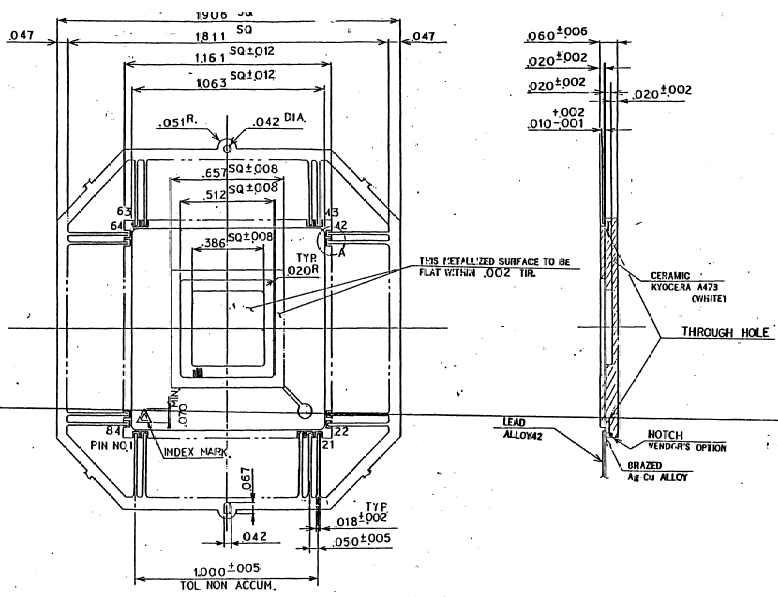

| 84 | 50 mil | 1.27mm | 1.16"SQ | Flat | CERQUAD84F50 | CERQUAD84F50-DE | CERQUAD84F50-N |
| 100 | 19.7 mil | 0.5mm | .551" | Gull | CERQUAD100G19.7 | CERQUAD100G19.7-DE | CERQUAD100G19.7-N |
| 100 | 25.0 mil | 0.635mm | .75" SQ | Flat | CERQUAD100F25SQ.75 | CERQUAD100F25SQ-.75-DE | CERQUAD100F25SQ.75-N |
| 100 | 25.6 mil | 0.65mm | .67" | Flat | CERQUAD100F25 | CERQUAD100F25-DE | CERQUAD100F25-N |
| 100 | 25.6 mil | 0.65mm | 14 x 20mm | Gull | CERQUAD100G25 | CERQUAD100G25-DE | CERQUAD100G25-N |

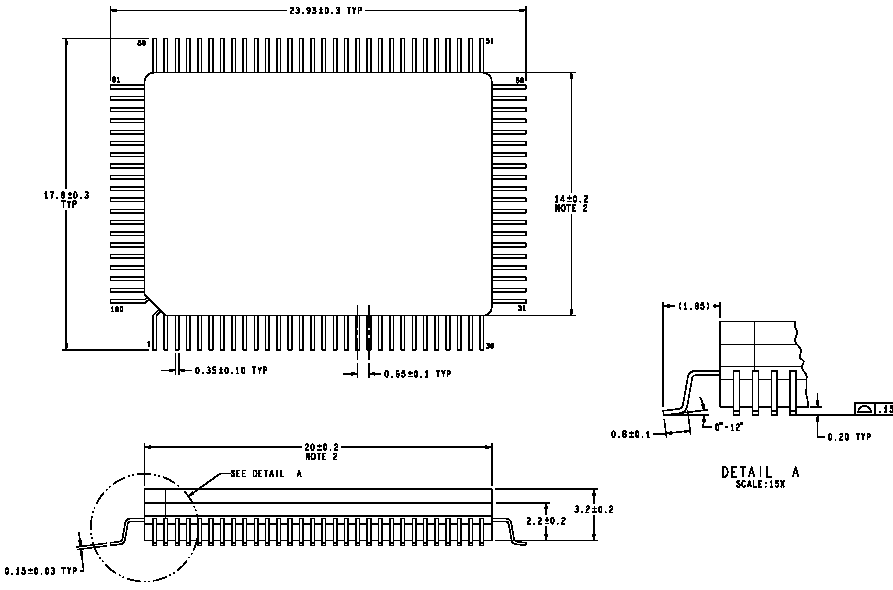

| 100 | 25.6 mil | 0.65mm | 14 x 20mm | Gull Trimmed |
CERQUAD100G25-3.9 | CERQUAD100G25-DE | CERQUAD100G25-3.9-N |
| 100 | 25.6 mil | 0.65mm | 14 x 20mm | Flat | CERQUAD100F25 | CERQUAD100F25 | CERQUAD100F25-N |
| 120 | 31.5 mil | 0.8mm | 1.102" SQ | Gull | CERQUAD120G30 | CERQUAD120G30-DE | CERQUAD120G30-N |
| 128 | 19.7 mil | 0.5mm | 14 X 20mm | Flat | CERQUAD128F19.7 | CERQUAD128F19.7-DE | CERQUAD128F19.7-N |
| 128 | 31.5 mil | 0.8mm | 1.102" SQ | Gull | CERQUAD128G30 | CERQUAD128G30-DE | CERQUAD128G30-N |
| 132 | 25 mil | 0.635mm | .872" SQ | Flat | CERQUAD132F25-.87 | CERQUAD132F25-.87-DE | CERQUAD132F25-.87-N |
| 132 | 25 mil | 0.635mm | .95" SQ | Flat | CERQUAD132F25 | CERQUAD132F25-DE | CERQUAD132F25-N |
| 132 | 25 mil | 0.635mm | .95" SQ | Gull | CERQUAD132G25 | CERQUAD132G25-DE | CERQUAD132G25-N |
| 132 | 40 mil | 1.0mm | 1.45" SQ | Flat | CERQUAD132F40 | CERQUAD132F40-DE | CERQUAD132F40-N |
| 144 | 19.7 mil | 0.5mm | 0.756" SQ | Gull | CERQUAD144G19.7 | CERQUAD144G19.7-DE | CERQUAD144G19.7-N |
| 144 | 25.6 mil | 0.65mm | 1.102" SQ | Flat | CERQUAD144F25 | CERQUAD144F25-DE | CERQUAD144F25-N |

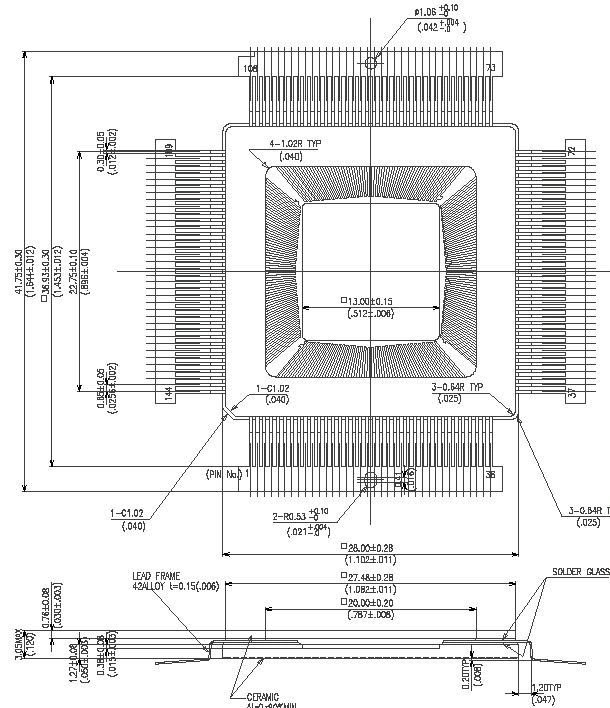

| 144 | 25.6 mil | 0.65mm | 1.102" SQ | Gull | CERQUAD144G25 | CERQUAD144G25-DE | CERQUAD144G25-N |
| 160 | 25.6 mil | 0.65mm | 1.102" SQ | Flat | CERQUAD160F25 | CERQUAD160F25-DE | CERQUAD160F25-N |
| 160 | 25.6 mil | 0.65mm | 1.102" SQ | Gull | CERQUAD160G25 | CERQUAD160G25-DE | CERQUAD160G25-N |

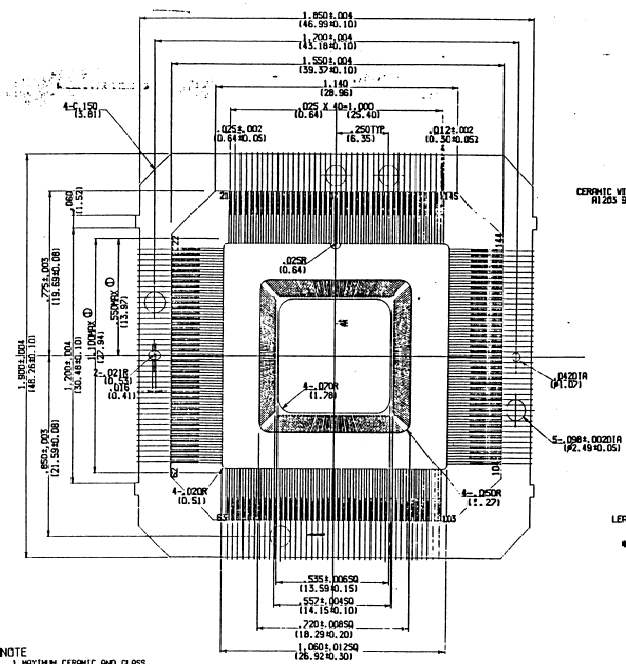

| 164 | 25 mil | 0.635mm | 1.06" SQ | Flat | CERQUAD164F25 | CERQUAD164F25-DE | CERQUAD164F25-N |
| 172 | 25 mil | 0.635mm | 1.15" SQ | Flat | CERQUAD172F25 | CERQUAD172F25-DE | CERQUAD172F25-N |
| 196 | 25 mil | 0.635mm | 1.35" SQ | Flat | CERQUAD196F25 | CERQUAD196F25-DE | CERQUAD196F25-N |
| 208 | 19.7 mil | 0.5mm | 1.102" | Gull | CERQUAD208G19.7 | CERQUAD208G19.7-DE | CERQUAD208G19.7-N |
| 240 | 19.7 mil | 0.5mm | 1.228" | Gull | CERQUAD240G19.7 | CERQUAD240G19.7-DE | CERQUAD240G19.7-N |
| 256 | 20.0 mil | 0.508mm | 1.46" SQ | Gull Trimmed |
CERQUAD256G20-4.8 |  Rotatable SolidworksModel |
- |
| 256 | 19.7 mil | 0.50mm | 1.46" SQ | Flat | CERQUAD256G19.7 | - | - |
| 304 | 19.7 mil | 0.5mm | 1.543" SQ | Gull | CERQUAD304G19.7 | CERQUAD304G19.7-DE | CERQUAD304G19.7-N |
| 340 | 15.0 mil | 0.381mm | 1.39" SQ | Flat | CERQUAD340F15 | CERQUAD340F15-DE | CERQUAD340F15-N |
| 352 | 019.7 mil | 0.5mm | 1.89" SQ | Flat | CERQUAD352F19.7 | CERQUAD352F19.7-DE | - |
| e-Drawings software to view rotatable:
PC Version • Mac Version | |||||||
 Open Cavity (Option -N) | |
| Optional Features. Add Suffix Below to end of Part Number | |||||
| With Lid Attached |
Without Lid Open Cavity |
Gold Leads | Solder Coated Leads |
All Leads Isolated For SIR Testing |

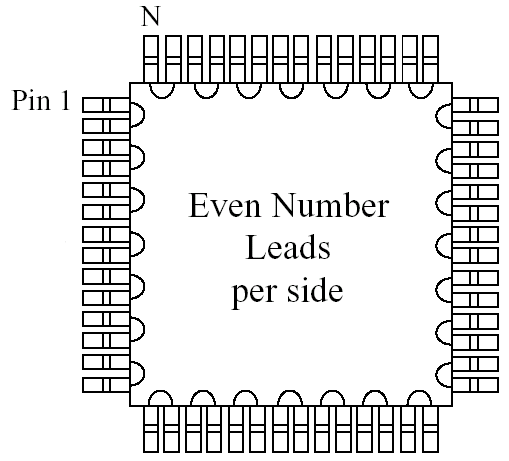

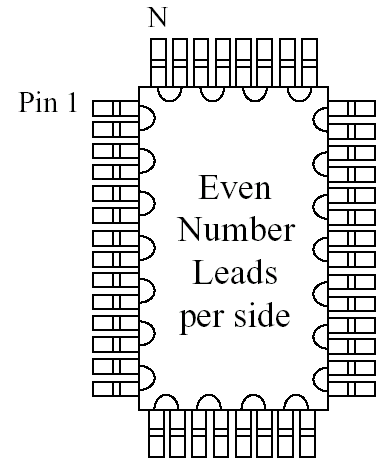

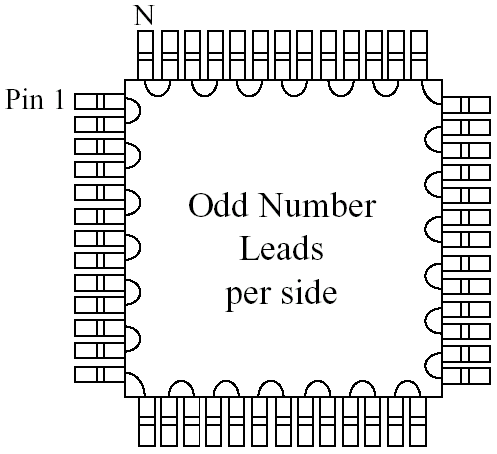

Daisy Chain |
| Blank | -N | Blank | -SC | -ISO | -DE |
|
Standard Lead Frame and Bond Finger Material is Kovar, Alloy-42 or equivalent with Gold Plating 60 micro inches minimum thickness. For Solder Coated Leads, add -SC to end of part number. Ceramic Body AL3O3 More Products TopLine Home
|
|||||
