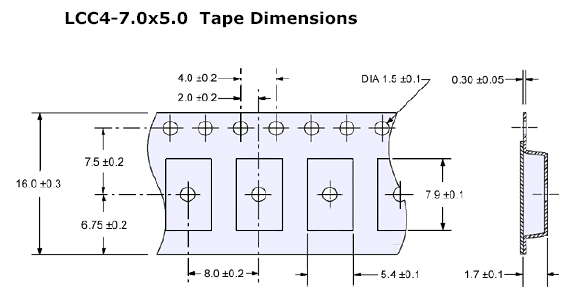

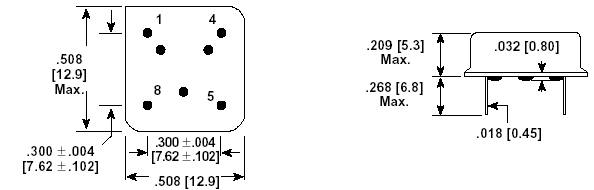

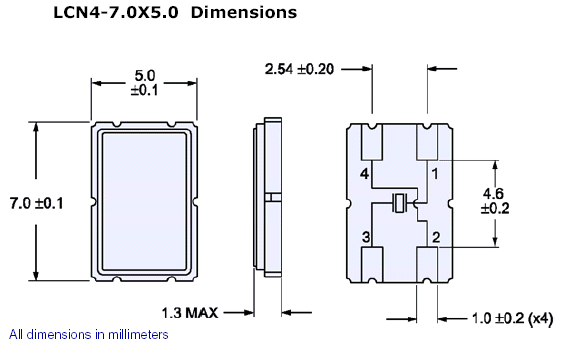

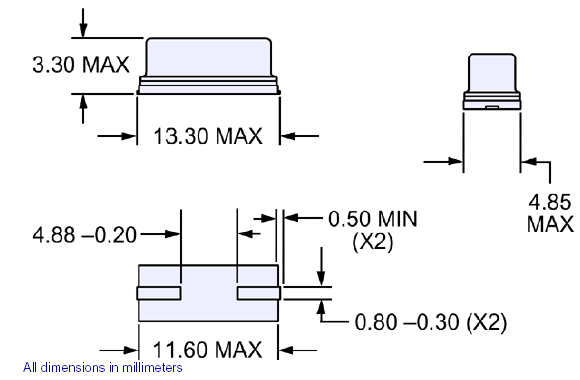

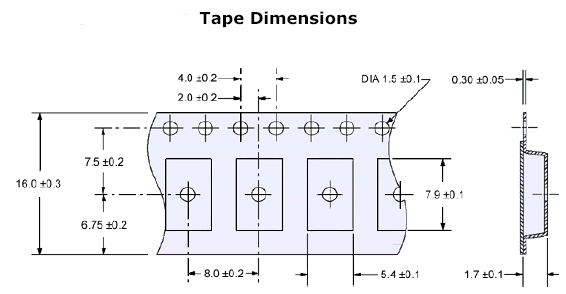

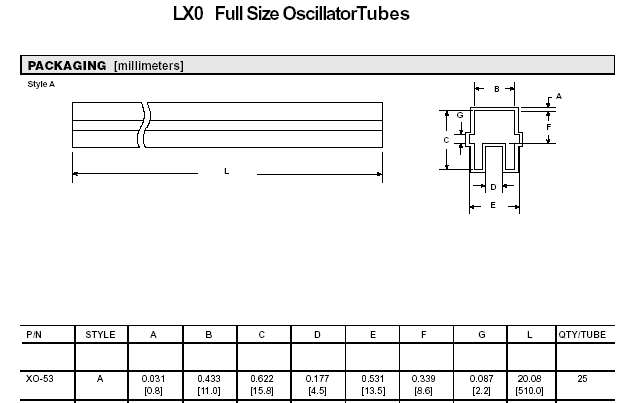

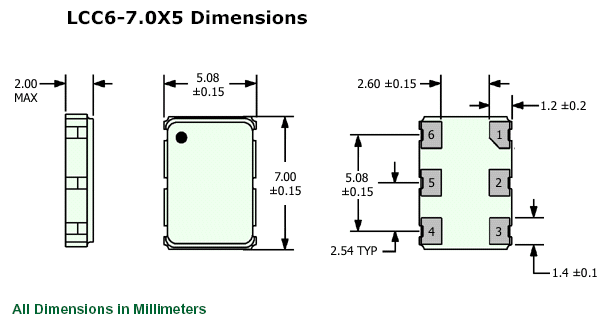

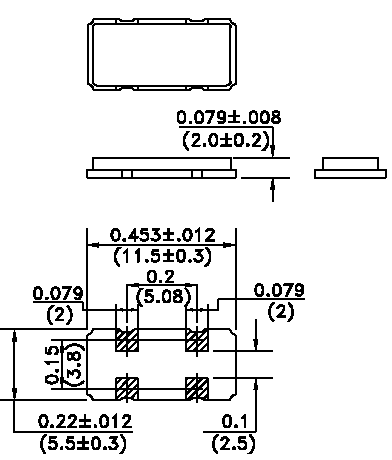

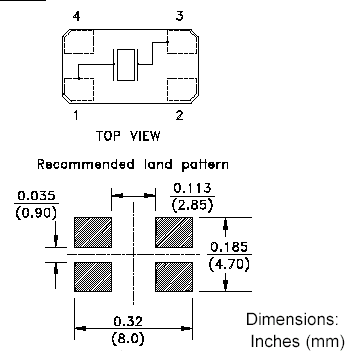

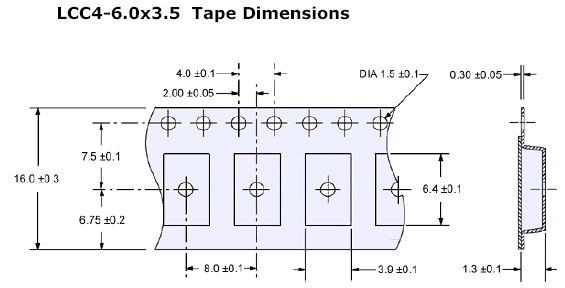

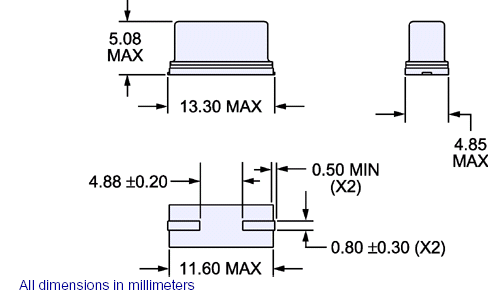

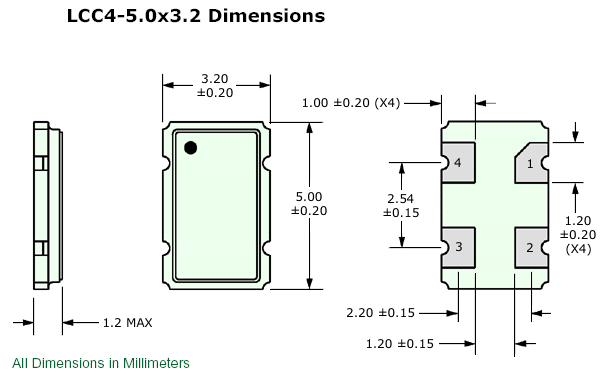

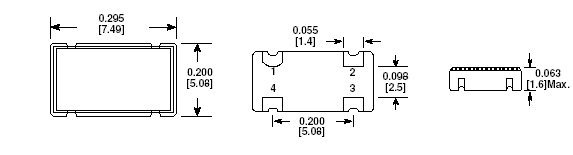

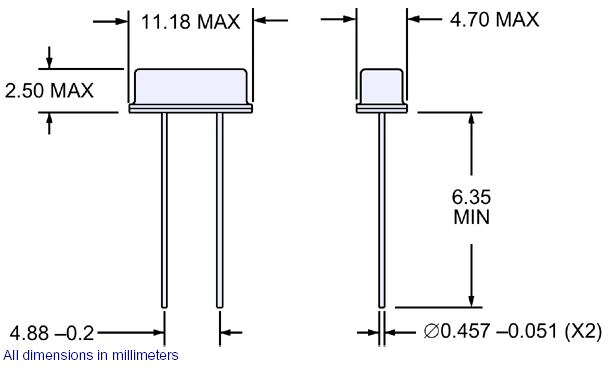

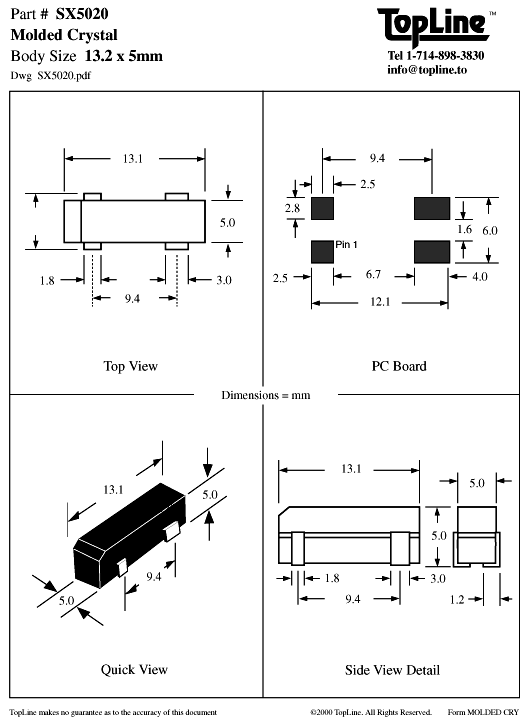

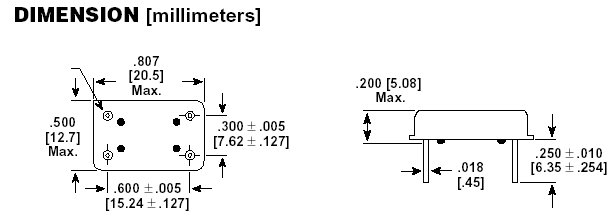

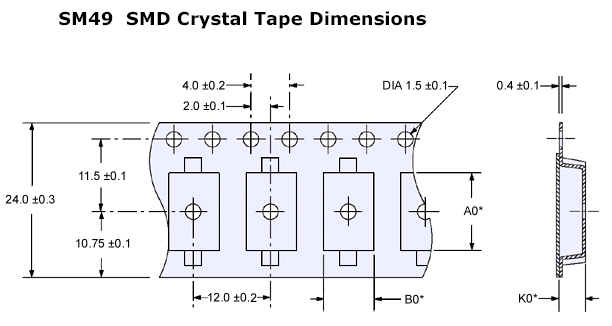

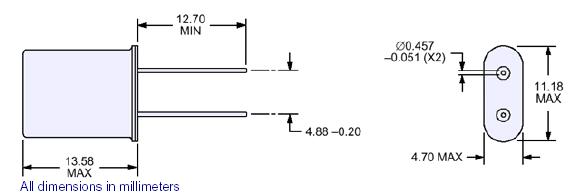

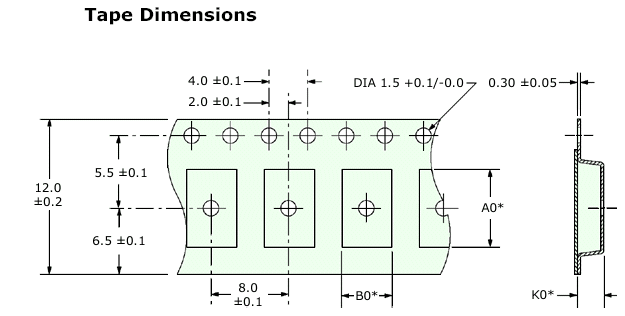

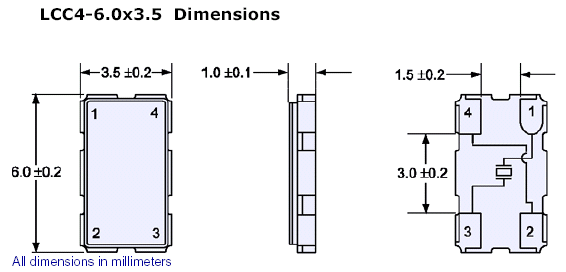

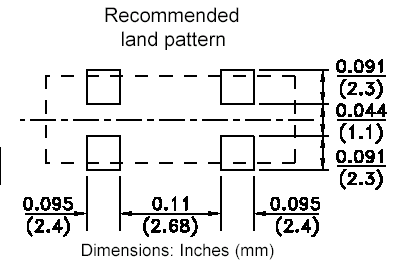

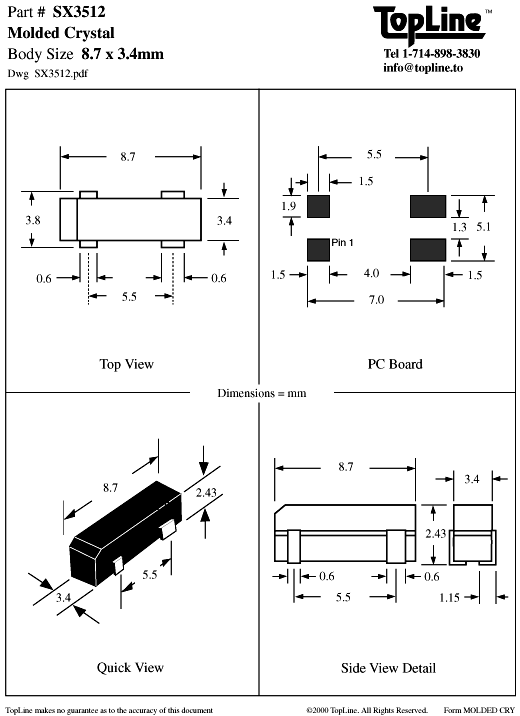

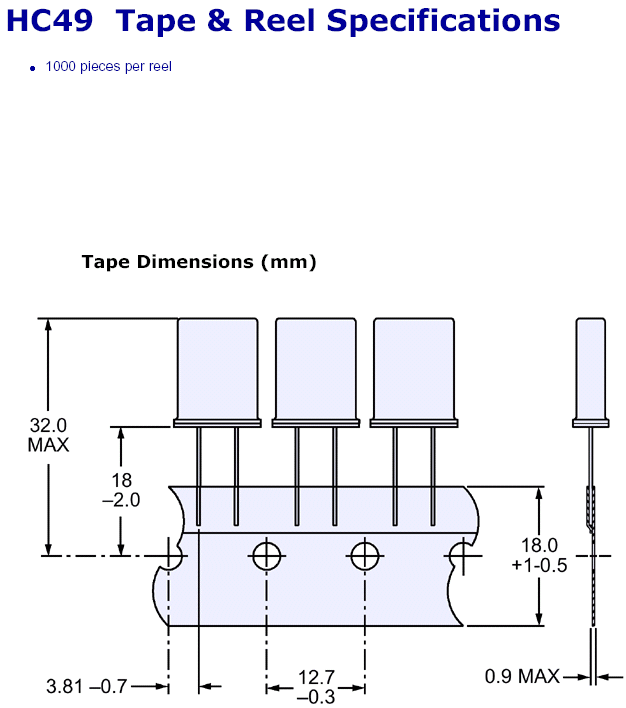

Lead Free Crystal & Oscillator   Go to-->  Chip Menu   Resistor   Capacitor   Tantalum   Inductor   AL Cap   Melf   Chip Array   SMD - Surface Mount Case Style Size Tape Info PCB Land pattern TopLine Part Series Metal Low Profile Height=3.3mm Base=11.1mm x 4.6mm W=24mm P=12mm - SM49SE13A-TIN Metal Standard Height=5.08mm Base=11.1mm x 4.6mm W=24mm P=12mm - SM49E13A-TIN Plastic 8.7mm x 3.7mm W=16mm P=8mm - SX3512E13A-TIN Plastic 13.2mm x 5.0mm W=24mm P=8mm - SX5020E13A-TIN Ceramic 5.0mm x 3.2mm W=12mm P=8mm - LCC4-5.0x3.2E7A Ceramic 6.0mm x 3.5mm W=16mm P=8mm PCB LCC4-6.0x3.5E7A Ceramic 7.0mm x 5.0mm W=16mm P=8mm - LCC4-7.0x5.0E13A Ceramic 7.0mm x 5.0mm W=16mm P=8mm - LCN4-7.0x5.0E13A Ceramic 7.0mm x 5.0mm W=16mm P=8mm - LCC6-7.0x5.0E13A Ceramic 7.5mm x 5.0mm W=16mm P=8mm PCB LCC4-7.5x5.0E13A Ceramic 11.0mm x 6.5mm W=24mm P=12mm - LCN4-11x6.5E13A Ceramic 11.5mm x 5.5mm W=24mm P=12mm PCB LCC4-11x5.5E13A       Throughhole Case Style Size Tube Info TopLine Part Series Metal 1/2 Can 12.5mm x 12.5mm Tube 40 LX1/2M-TIN Metal Full Can 20.7 x 13.0mm Tube 25 LX0M-TIN Low Profile Metal Can Height=2.5mm 11.5mm x 5mm Bulk HC49US-TIN Standard Metal Can Height=13.5mm 11.5mm x 5mm Taping Spec HC49-TIN Cylindrical 6.3 x 2.1mm Bulk DT26-TIN Cylindrical 8.28 x 3.1mm Bulk DT38-TIN   More Products    TopLine Home TopLine Corporation 95 Highway 22 W Milledgeville, GA 31061, USA Toll Free USA/Canada (800) 776-9888 International: 1-478-451-5000  •  Fax: 1-478-451-3000 Email: Info ©2012 TopLine. All Rights Reserved.
