DPAK & D2PAK Device
JEDEC TO252, TO263, TO268

Dummy devices conform to JEDEC standards. DPAK and D2PAK power plastic packages. For solder practice, training and machine evaluation.
JEDEC TO-252AA, TO-263AB, TO-268AA

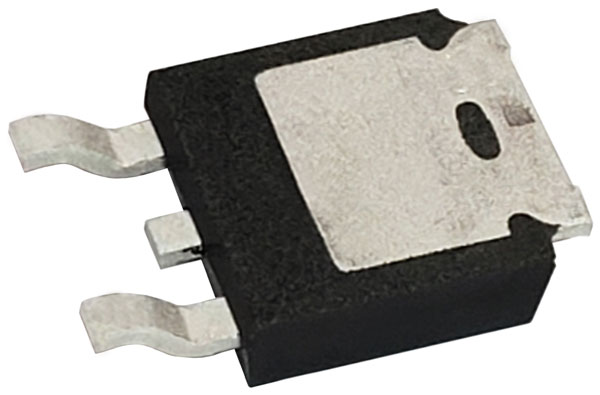

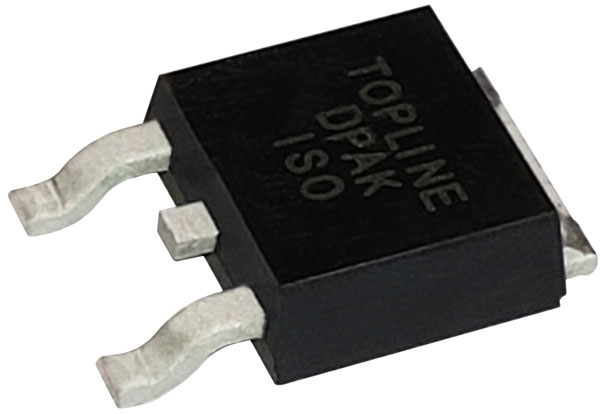

DPAK and D2PAK- Power Device

JEDEC
Device
Nbr
Leads
Pitch Packaging Order Nbr
RoHS
Pb-Free
Drawings
Detials
Daisy
Chain
Device
Plastic Case - Surface Mount
TO-252AA
Center Lead
Trimmed
SOT428
2L
Center
Lead
Trimmed
4.6mm Reel DPAK-TIN
TO252AA
DPAK
TO252
Daisy
Chain
TO-263AB
Center Lead
Trimmed

SOT404
2L
Center
Lead
Trimmed
5.08mm Reel D2PAK-T
TO263AB
D2PAK
TO263AB
Daisy
Chain
TO-252-3L
Full 3 Leads
3L
Untrimmed
2.30mm Reel DPAK3-T
TO252-3L
DPAK3
TO252-3L
-
TO-263AA
Full 3 Leads
3L
Untrimmed
2.54mm Reel D2PAK3-T
TO263AA
D2PAK3
TO263AA
-
TO-263-4
Center Lead
Trimmed

SOT426
4L
Center
Lead
Trimmed
5.08mm Reel D4PAK-T
TO263-4
D2PAK-4
TO263-4
Daisy
Chain
TO-252-5
Full 5 Leads
5L
Untrimmed
1.27mm Reel DPAK5-T
TO252-5
TO-263-5
Full 5 Leads
5L
Untrimmed
1.27mm Reel D2PAK5-T
TO263-5
D2PAK5
TO263-5
Daisy
Chain
TO-263-7
Center
Lead
Trimmed
SOT427
6L
Center
Lead
Trimmed
0.85mm Reel D2PAK7-T
TO263-7
D2PAK7
TO263-7
-
TO-252-7F
Full 7 Leads
7L
Untrimmed
0.88mm Reel DPAK7F-T
TO252-7F
DPAK7
TO252-7
-
TO-263-7F
Full 7 Leads
7L
Untrimmed
0.85mm Reel D2PAK7F-T
TO263-7F
D2PAK7
TO263-7
-
TO-268 2L 10.9mm Reel D3PAK-T
TO268
D3PAK
TO268
-

Other DPAK and "TO" JEDEC package types available.
Please contact TopLine.
