FP28F50R.40x.72S-SC
Flat Pack FP 28L
TopLine Dummy Component
For training, practice and evaluation

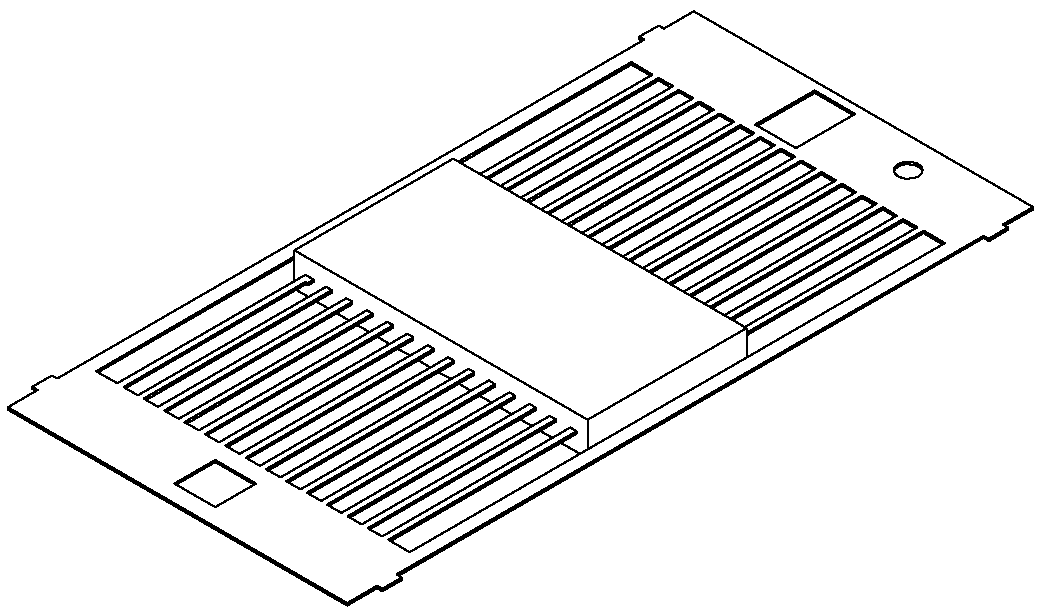

Click for Outline Drawing

Click for Solidworks 360° Rotatable Model

Quick Specs:
Pin Count 28L
Pitch 50 mil - 0.050" (1.27mm)
Body Size 0.40" x .72" (10.1x18.3mm)
Side Braze flat lead with tie-bar
Standard Packaging bulk tray

Use and Applications:
IPC Solder Training Certification
Practice Lead Form and Trim
Equipment Evaluation
Prototype PWB

Availability:
Delivery Stock to 4 weeks

Typical Part Numbers with Tie-Bar:
FP28F50R.40x.72S-SC = Solder SnPb
FP28F50R.40x.72S = Gold Leads
FP28F50R.40x.72S-DE = Daisy Chain. Gold Leads
FP28F50R.40x.72S-DE-SC = Daisy Chain. Solder Leads


Part Numbering System
FP 28 F 50 R .40x.72 S - SC
Series Nbr Pins Lead
Info
Pitch
Mils
Body
Shape
Body Size
Inch
Braze - Options
Flat Pack
Dual Sides
28 = 28 Leads Flat Leads
With Tie-bar
50 Mils
0.050-inch
1.27mm
Rectangular 0.40x.72"
10.1x18.3mm
Bottom   -N=Without lid
-DE=Daisy Chain
-SC=Solder Dipped SnPb
Blank=Gold Leads. With lid.
Applications: solder training, lead forming and triming practice.



Daisy Chain Option -DE



Download Solidworks® e-Drawings software to view rotatable:    PC Version  •  Mac Version
