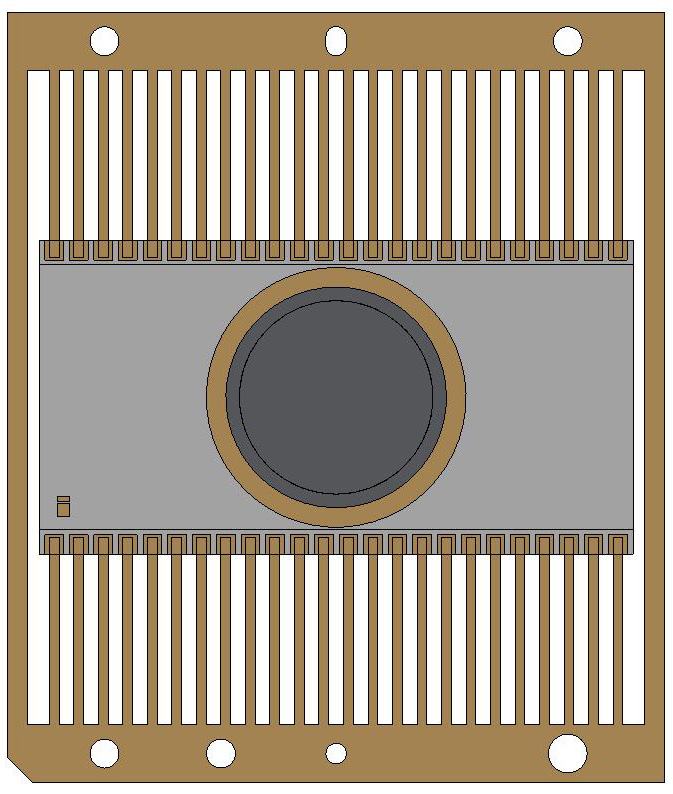

FP48F50R.64x1.21T
Flat Pack FP 48L
TopLine Dummy Component
For training, practice and evaluation

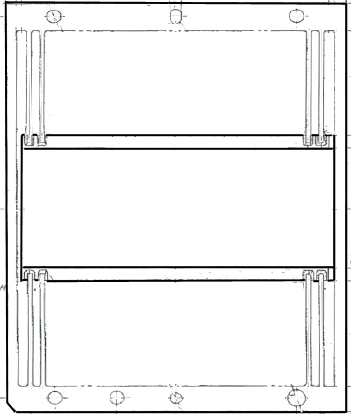

Click for Outline Drawing

Quick Specs:
Pin Count 48L
Pitch 50 mil - 0.050" (1.27mm)
Body Size 0.64" x 1.21" (16.2 x 30.7mm)
Bottom Braze flat lead with tie-bar
Standard Packaging bulk tray

Use and Applications:
IPC Solder Training Certification
Practice Lead Form and Trim
Equipment Evaluation
Prototype PWB

Availability:
Delivery Stock to 4 weeks

Typical Part Numbers with Tie-Bar:
FP48F50R.64x1.21T = Gold Leads. With Lid
FP48F50R.64x1.21T-SC = Solder Dip. With Lid
FP48F50R.64x1.21T-N = Gold Leads. Without Lid
FP48F50R.64x1.21T-DE = Daisy Chain. Gold Leads
FP48F50R.64x1.21T-DE-SC = Daisy Chain. Solder Leads


Part Numbering System
FP 48 F 50 R .64x1.21 T - DE
Series Nbr Pins Lead
Info
Pitch
Mils
Body
Shape
Body Size
Inch
Braze - Options
Flat Pack
Dual Sides
48 = 48 Leads Flat Leads
With Tie-bar
50 Mils
0.050-inch
1.27mm
Rectangular 0.64"x1.21"
16.2x30.7mm
Top   -N=Without lid
-DE=Daisy Chain
-SC=Solder Dipped SnPb
Blank=Gold Leads. With lid.
Applications: solder training, lead forming and triming practice.

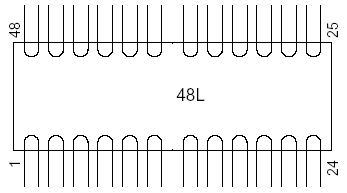

Daisy Chain Option -DE
