FP8F50SQ.25B
Flat Pack FP 8L
TopLine Dummy Component
For training, practice and evaluation

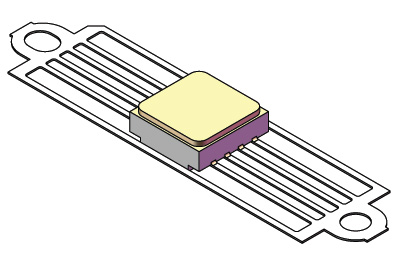

Top View FP8F50SQ.25B

Click for Outline Drawing

Quick Specs:
Pin Count 8L
Pitch 50 mil - 0.050" (1.27mm)
Body Size 0.255" SQ (6.5mm SQ)
Bottom Braze flat lead without tie-bar
Standard Packaging in plastic carrier

Use and Applications:
IPC Solder Training Certification
Practice Lead Form and Trim
Equipment Evaluation
Prototype PWB

Availability:
Delivery Stock to 4 weeks

Part Numbers without Tie-Bar:
Packed in plastic carrier
FP8C50SQ.25B = Gold Leads. With Lid
FP8C50SQ.25B-SC = Solder Dip. With Lid

Part Numbers with Tie-Bar:
FP8F50SQ.25B = Gold Leads. With Lid
FP8F50SQ.25B-SC = Solder Dip. With Lid
FP8F50SQ.25B-DE = Gold. With Daisy Chain
FP8F50SQ.25B-N = Gold. Without Lid


Part Numbering System
FP 8 F 50 SQ .25 B - -
Series Nbr Pins Lead
Shape
Pitch
Mils
Body
Shape
Body Size
Inch
Braze - Options
Flat Pack
Dual Sides
8 = 8Leads Flat Leads
with Tie-bar
50 Mils
0.050-inch
1.27mm
Square 0.255" SQ
6.5mm SQ
Bottom   -DE=Daisy Chain
-SC=Solder Dipped SnPb
Blank=Gold Leads. With lid.



Daisy Chain Option -DE
