Universal QFP
Lead Straightener Tool

Order Number 900000
Size 4" x 5.5" (10cm x 14cm)

JPG High Resolution (5Mb)Zip
Enlarged Photo

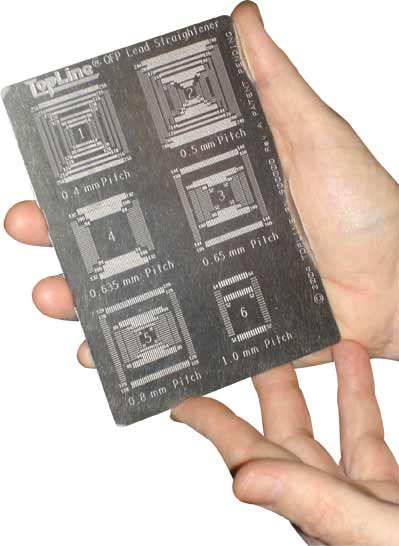

Universal QFP tool enables you to rework and align bent pins on all sizes QFP and TQFP. Pitch 0.4mm to 1.0mm

Durable metal template includes 46 different QFP patterns.

Use standard hand tools such as dental picks and tweezers to adjust the leads of QFP to match recessed template slots.

Great for recovery of expensive QFP, TQFP and LQFP. An essential work bench tool for the serious tech.

Can also be used at incoming QA to verify the number pins, body size and pitch of unknown QFP components.

Template is constructed of heavy duty conductive 50 mil (1.27mm) thick stainless steel with 5 mil deep etched recessed patterns that precisely match the leads of the QFP/TQFP.

ESD Safe. Recommended to use on grounded bench pad with wrist strap. Pb-Free RoHS.

Design Patent D512,970.

Data Sheet

One Tool Does All These Different QFP & TQFP Devices:
0.4mm 0.5mm 0.635mm 0.65mm 0.8mm 1.0mm
TQFP-64L TQFP-32L 84L TQFP-52L
QFP-52L
TQFP-32L TQFP-44L
QFP-44L
TQFP-80L TQFP-48L BQFP-100L TQFP-80L
QFP-80L
TQFP-44L
QFP44
TQFP-52L
QFP-52L
TQFP-120L TQFP-64L
QFP-64L
BQFP-132L QFP-100L QFP-64L QFP-64L
TQFP-128L TQFP-80L   QFP-144L QFP-80L
TQFP-176L TQFP-100L
QFP-100L
  QFP-160L QFP-120L
LQFP-216L LQFP-128L
QFP-128L
    QFP-128L
LQFP-256L
QFP-256L
LQFP-144L
  LQFP-160L
  LQFP-176L
  QFP-184L
  LQFP-208L
QFP-208L

  QFP-240L
