Quartz Die
For Underfill Experiments


Quartz Die - Eutetic Bumps, SAC Bumps and Without Bumps
Bumps Bump Matrix Pitch Die Size
(mm)
Bump Size
Height
Diameter
Tray Qty Eutectic Bumps
Sn63/Pb37
Order Number
Pb-Free Bumps
Lead Free
SAC - Sn/Ag/Cu
Order Number
Without Bumps
Order Number
Ref Quick View
48 12x12
Perimeter
18mil
457µm
6.3mm 140µm
ø178µm
25pcs
Waffle 2"
FCQ48D6.3E457-ISO FCQ48D6.3C457-ISO FCNQ48D6.3C457-ISO FBT250
88 22x22
Perimeter
8 mil
204µm
5.08mm 107µm
ø102µm
36
Waffle 2"
FCQ88G5.08E204-ISO FCQ88G5.08E204-ISO FCNQ88G5.08E204-ISO PB08
96 24x24
Perimeter
18 mil
457µm
12.7mm 140µm
ø178µm
25pcs
Waffle 4"
FCQ96D12.7E457-ISO FCQ96D12.7C457-ISO FCNQ96D12.7C457-ISO FBT500
112 28x28
Perimeter
6 mil
152µm
5.08mm 185µm
ø88µm
36pcs
Waffle 2"
FCQ112K5.08E152-ISO FCQ112K5.08C152-ISO FCNQ112K5.08C152-ISO PB06
176 44x44
Perimeter
8mil
204µm
10mm 107µm
ø102µm
49pcs
Waffle 4"
FCQ176G10E204-ISO FCQ176G10C204-ISO FCNQ176G10C204-ISO PB08
x4
220 44x66
Perimeter
8mil
204µm
10mm x
15mm
107µm
ø102µm
20pcs
Waffle 4"
FCQ220G10x15E204-ISO FCQ220G10x15C204-ISO FCNQ220G10x15C204-ISO PB08
x6
317 18x18
Full Array
10 mil
254µm
5.08mm 119µm
ø102µm
36pcs
Waffle 2"
FCQ317G5.08E254-ISO FCQ317G5.08C254-ISO FCNQ317G5.08C254-ISO FA10
1268 36x36
Full Array
10 mil
254µm
10mm 119µm
ø102µm
49pcs
Waffle 4"
FCQ1268G10E254-ISO FCQ1268G10C254-ISO FCNQ1268G10C254-ISO FA10
x4
2853 54x54
Full Array
10 mil
254µm
15mm 119µm
ø102µm
16pcs
Waffle 4"
FCQ2853G15E254-ISO FCQ2853G15C254-ISO FCNQ2853G15C254-ISO FA10
x9
5072 72x72
Full Array
10 mil
254µm
20mm 119µm
ø102µm
9pcs
Waffle 4"
FCQ5072G20E254-ISO FCQ5072G20C254-ISO FCNQ5072G20C254-ISO FA10
x16

Options and Accessories:
Quartz die available with and without bumps (without daisy chain)

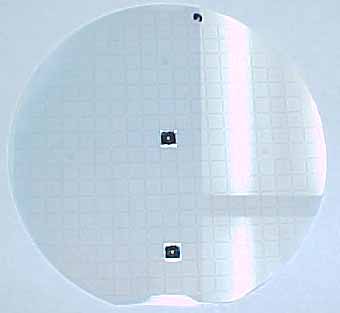

5-inch wafers available for all items.
Tape and reel (T&R) packaging available special order.



Download our 24 page Flip Chip Daisy Chain Product Guide in PDF format.(1Mb)
