Radial Lead
Through Hole Components

Welcome to TopLine's RADIAL Components page.   •   Go to axial lead components.


Radial Lead Devices


# Leads Lead Space Device Packaging Order Number SolidWorks
360°Model
Capacitor
2 0.10" (2.54mm) Molded Capacitor Tape 2500 CKR04T

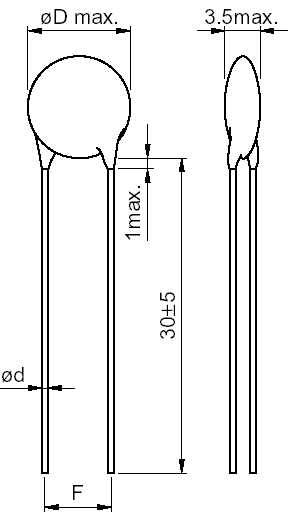

2 0.10" (2.54mm) Disc Capacitor Bulk KK1
2 0.10" (2.54mm) Dip Monolithic Bulk NR1
2 0.10" (2.54mm) Dip Tantalum Bulk DD1

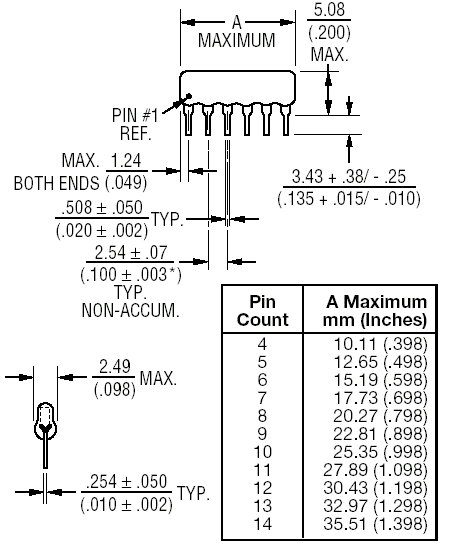

SIP Network - Tape & Reel
4 0.10" (2.54mm) SIP Conformal Tape 1000 RS4T
6 0.10" (2.54mm) SIP Conformal Tape 1000 RS6T
7 0.10" (2.54mm) SIP Conformal Tape 1000 RS7T
8 0.10" (2.54mm) SIP Conformal Tape 1000 RS8T
10 0.10" (2.54mm) SIP Conformal Tape 1000 RS10T

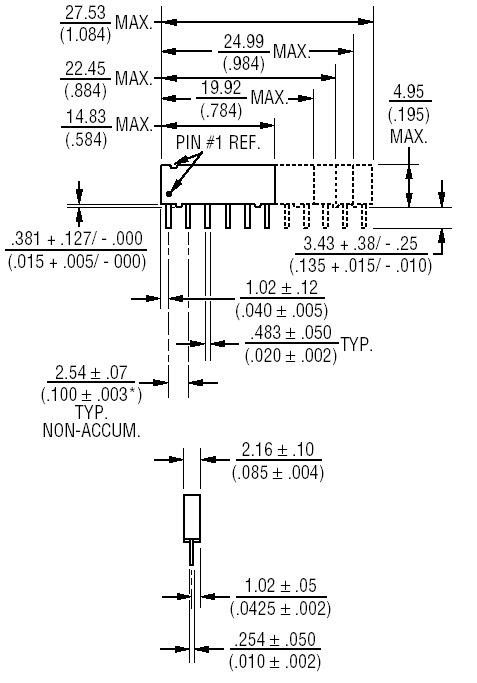

SIP Network Molded - in Tubes
4 0.10" (2.54mm) SIP Molded Tube 50 RSM4M
6 0.10" (2.54mm) SIP Molded Tube 40 RSM6M
8 0.10" (2.54mm) SIP Molded Tube 25 RSM8M
10 0.10" (2.54mm) SIP Molded Tube 20 RSM10M
15 0.05" (1.27mm) SIP Molded Tube 25 HSIP15
Capacitors
2 0.20" (5mm) Disc Capacitor Ammo 2000 KK2A

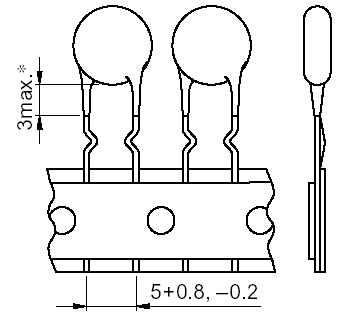

2 0.20" (5mm) Disc Capacitor Tape 2500 KK2T
2 0.20" (5mm) Disc Capacitor Bulk KK2

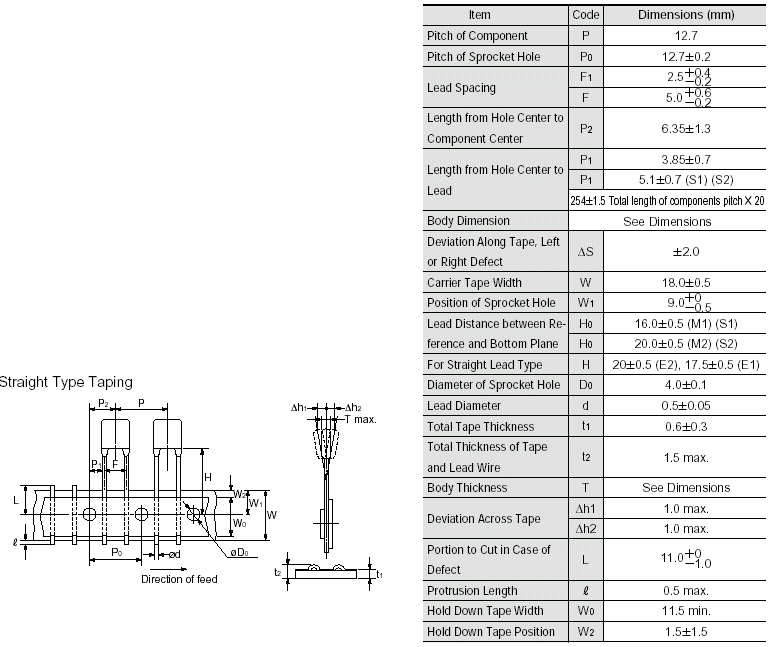

2 0.20" (5mm) Dip Monolithic Tape 2000 NR2T
2 0.20" (5mm) Dip Monolithic Ammo 2000 NR2A
2 0.20" (5mm) Dip Monolithic Bulk NR2

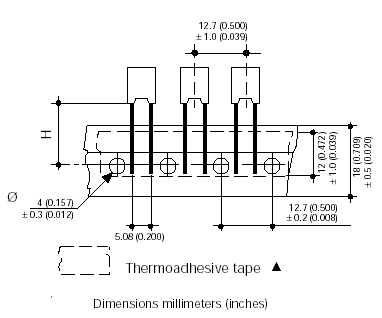

2 0.20" (5mm) Box Capacitor Tape 2500 FR2B-T
2 0.20" (5mm) Box Capacitor Ammo 2500 FR2B-A

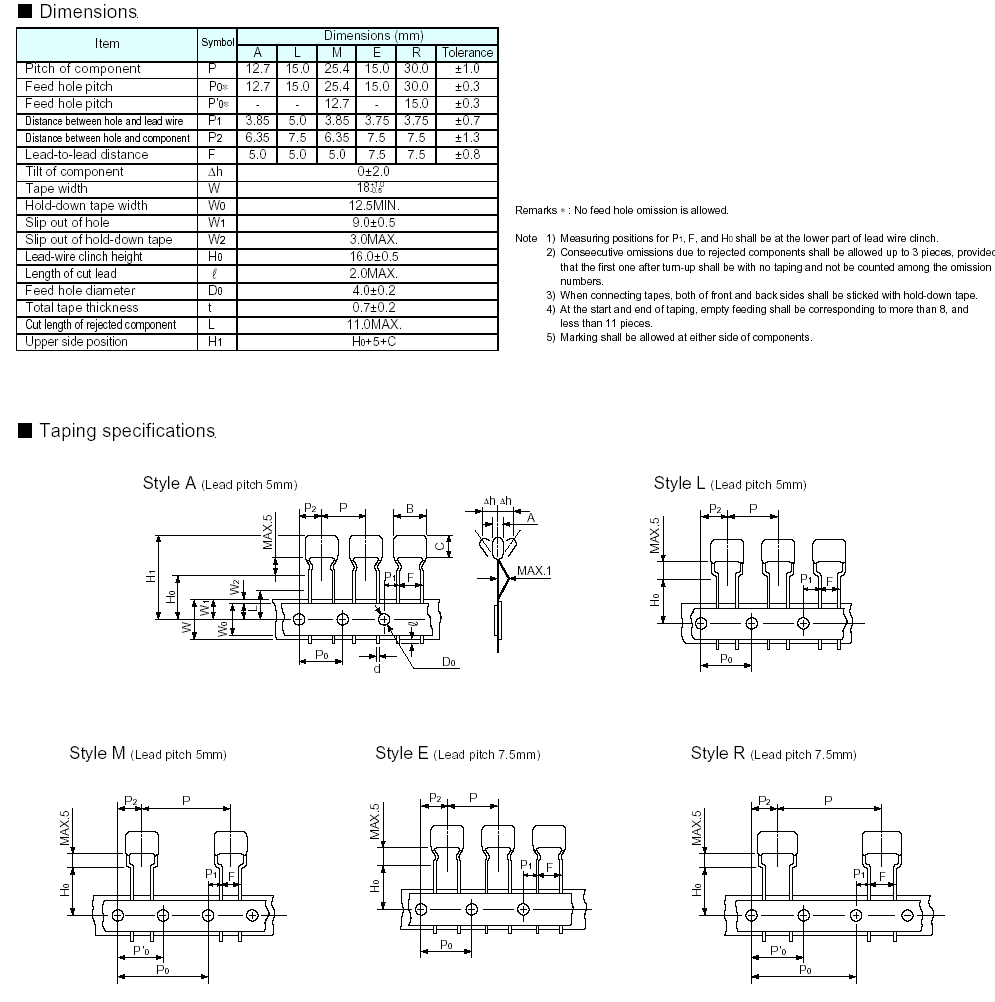

2 0.30" (7.5mm) Film Capacitor Tape 1000 FR3D-T
2 0.20" (5mm) DIP Tantalum Tape 2500 DD2T
2 0.20" (5mm) DIP Tantalum Bulk DD2
2 0.20" (5mm) Molded Capacitor Tape 2500 CK05T
2 0.20" (5mm) Molded Capacitor Bulk CK05
2 0.20" (5mm) Molded Capacitor Bulk CK06
2 0.20" (5mm) PCB Spacer 0.045"H Bulk CK06 STANDOFF
330045
360° Model
2 0.20" (5mm) PCB Spacer 0.085"H Bulk CK06 STANDOFF
330085
360° Model
2 0.375" (9.5mm) Disc Capacitor Bulk KK4

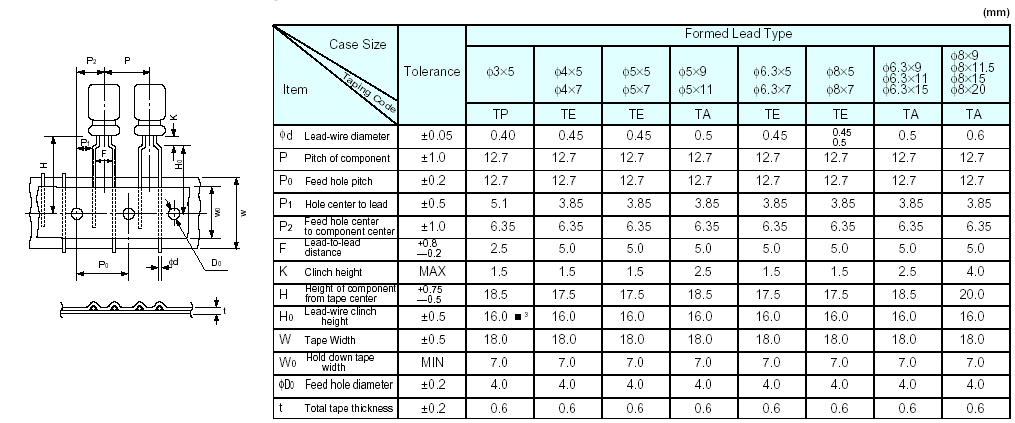

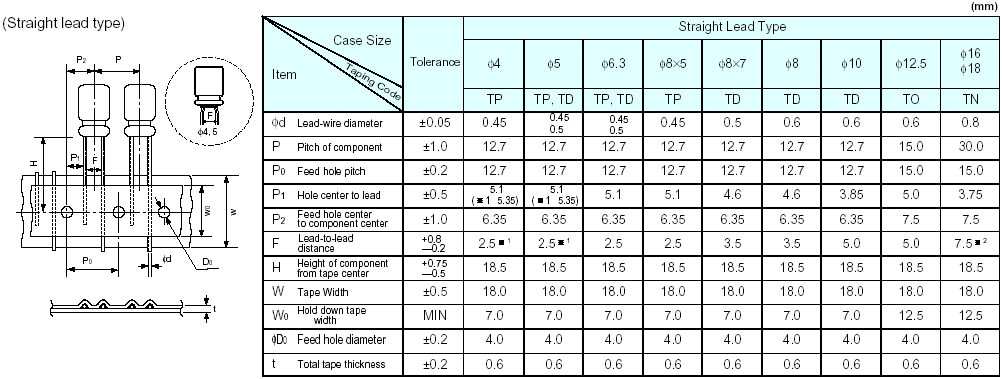

AL Capacitors
2 0.078" (2mm) 5mm X 11mm Bulk EH5x11
2 0.20" (5mm) 5mm X 11mm Ammo 2000 EH5x11A
2 0.20" (5mm) 12.5mm X 20mm Ammo 500 EH12.5x20A
Other Components
2 0.20" (5mm) AVI Resistor Ammo 2000 CFR18-AVI
2 0.20" (5mm) Pansert Resistor Ammo 2000 CF14A_Panasert
2 0.20" (4.88mm) Crystal Bulk HC18
2 0.20" (4.88mm) Crystal Bulk HC49
4 0.30" x 0.30" Oscillator 1/2-Can Bulk LX1/2
4 0.30" x 0.60" Oscillator Full Size Bulk LX1

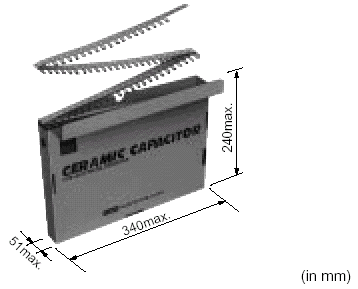

Ammo Box Dimensions AL Cap    Ammo Box Dimensions Box Film Cap

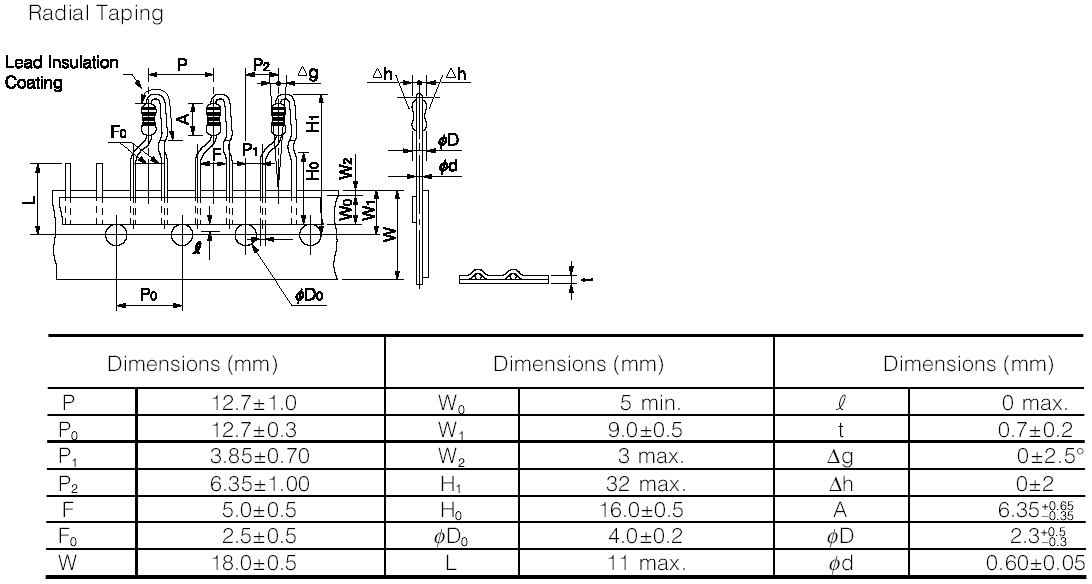

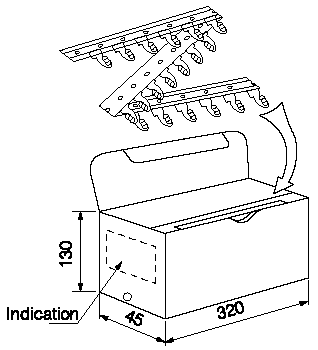

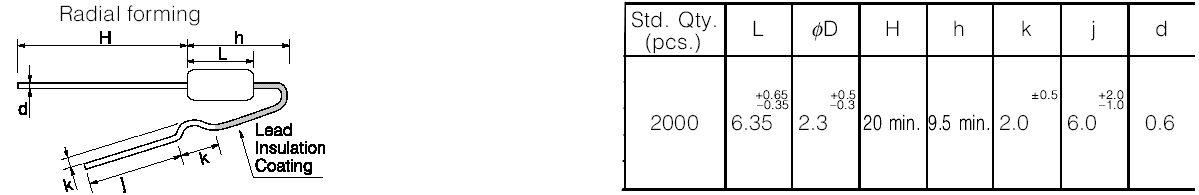

Ammo Box Dimensions Panasert Resistors    Ammo Box Dimensions Mono Cap

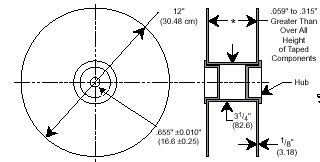

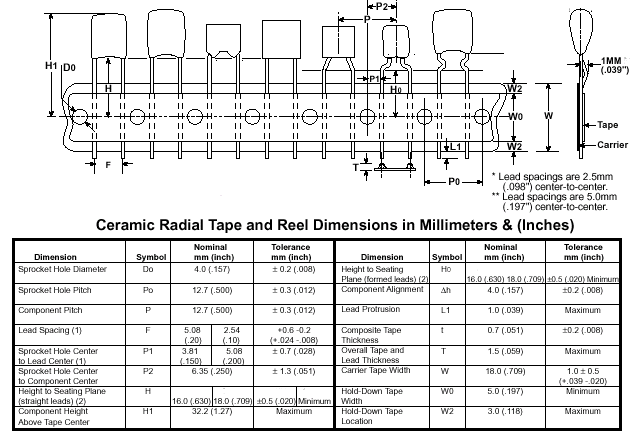

Dimensions for Typical Reel

For "BULK" Packaging, remove the letter "T" or "A" or "M"at the end of the TopLine Order Number.
