Lead Free
Radial Components



Radial Lead Devices



Multilayer Dip Ceramic Capacitor
NR1   NR2
# Leads Lead Space Device Size Packaging Order Number
2 0.1"
2.5mm		 2mm X 2mm Tape
Bulk		 NR1-TIN
2 0.2"
5mm		 3mm X 3mm Tape
Bulk		 NR2-TIN


Film Capacitor
Film Cap Epoxy Dip  Box Film Molded Case
# Leads Lead Space Device Size Packaging Order Number
2 0.2"
5mm		 3mm X 4mm Tape
Bulk		 FR2D-TIN
2 0.2"
5mm		 3mm X 3mm Tape
Bulk		 FR2B-TIN


Ceramic Disc Capacitor
KK Series
# Leads Lead Space Device Size Packaging Order Number
2 0.1"
2.5mm		 5mm Dia Tape
Bulk		 KK1-TIN
2 0.2"
5mm		 6mm Dia Tape
Bulk		 KK2-TIN


Resistor
Avisert Type 1   Avisert Type 2   Avisert Type 3   Panasert
# Leads Lead Space Device Type Packaging Order Number
2 0.2"
5mm		 Avisert Type 1 Tape
Bulk		 CFR14-AVI1-TIN
2 0.2"
5mm		 Avisert Type 2 Tape
Bulk		 CFR18-AVI2-TIN
2 0.1"
2.5mm		 Avisert Type 3 Tape
Bulk		 CFR18-AVI3-TIN
2 0.2"
5mm		 Avisert Type 3 Tape
Bulk		 CFR14-AVI3-TIN
2 0.2"
5mm		 Panasert Tape
Bulk		 CFR14-PAN-TIN


AL Capacitors
EH Series (+ Polarized)
# Leads Lead Space Device Size Packaging Order Number
2 0.1"
2.5mm		 5mm X 7mm Tape
Bulk		 EH5x7A-2.5-TIN
2 0.2"
5mm		 5mm X 11mm Tape
Bulk		 EH5x11A-TIN
2 0.3"
7.5mm		 16mm X 26mm Tape
Bulk		 EH16x26-TIN
For Ammo Tape in box, add the letter "A"in the Order Number.

Dip Tantalum
DD Series (+ Polarized)
# Leads Lead Space Device Size Packaging Order Number
2 0.1"
2.5mm		 2.5mm X 5mm Tape
Bulk		 DD1-TIN
2 0.2"
5mm		 3mm X 6mm Tape
Bulk		 DD2-TIN


SIP
RS Series Sip Resistor   HSIP Series
# Leads Lead Space Device Size Packaging Order Number
4 0.1"
2.5mm		 10mm L X 5mm H Bulk RS4-TIN
5 0.1"
2.5mm		 12mm L X 5mm H Bulk RS5-TIN
6 0.1"
2.5mm		 15mm L X 5mm H Bulk RS6-TIN
8 0.1"
2.5mm		 20mm L X 5mm H Bulk RS8-TIN
10 0.1"
2.5mm		 25mm L X 5mm H Bulk RS10-TIN
15 0.05"
1.27mm		 - Tube HSIP15M-F


TO - Transistors
TO5   TO18   TO39  TO92   TO220
# Leads Lead Space Device Size Packaging Order Number
3 2.5mm x 5mm 8mm Dia Bulk TO5-TIN
TO5-GOLD
3 2.5mm x 5mm 8mm Dia Bulk TO39-TIN
TO39-GOLD
3 1.27mm x 3mm 8mm Dia Bulk TO18-TIN
TO18-GOLD

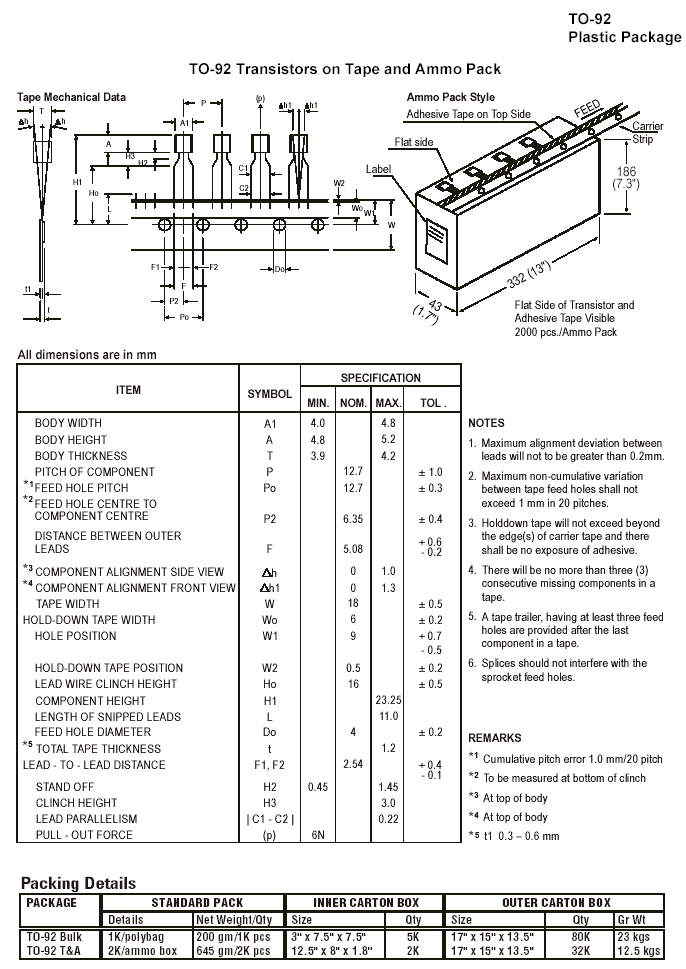

3 0.05"
1.25mm		 5mm X 5mm Tape
 TO92A-.2-TIN
3 0.1"

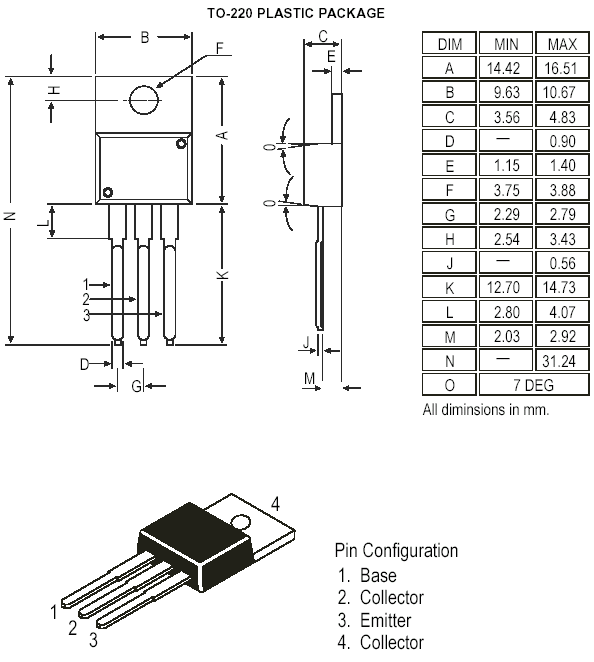

2.5mm		 10 x 4 x 15mm Tube TO220M-3-TIN


Connector
# Leads Lead Space Device Size Packaging Order Number
120 0.05"
1.27mm		 4-Row x 85mm Bulk 1-5145154-2


Ammo Box Dimensions AL Cap    For "Ammo Tape" add the letter "A"in the Order Number.
