Welcome to TopLine's DIP Components page.  If you would like to download our dummy components catalog in PDF format, click here.


SDIP Skinny Dual Inline


Number Leads Body Width Tube Qty Outline Drawing Daisy Chain

SDIP
70 mil (1.78mm) Pitch

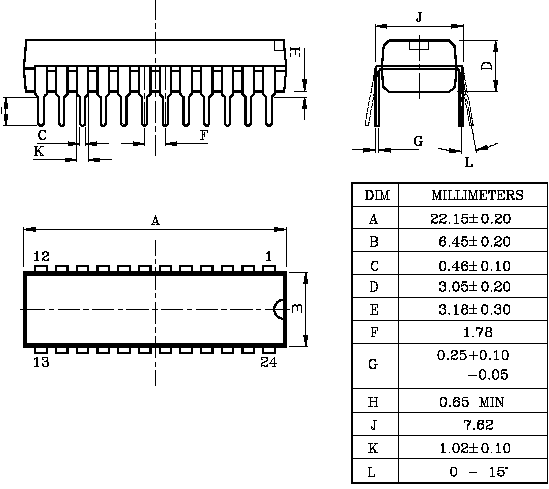

24 300 mil 25 SDIP24M3 SDIP24M3-DE

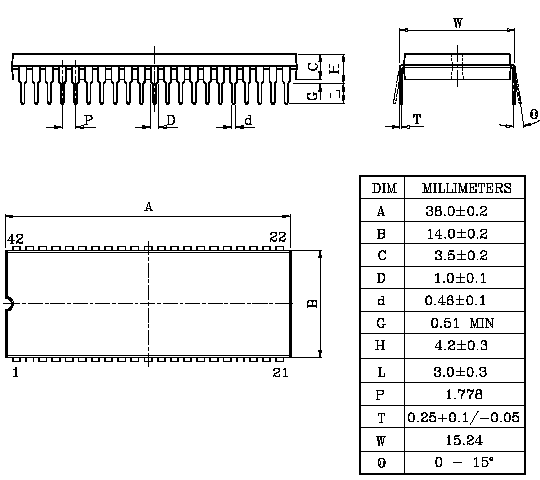

42 600 mil 14 SDIP42M6 SDIP42M6-DE

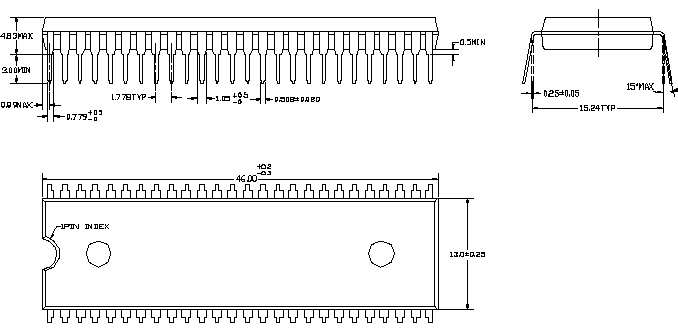

52 600 mil 11 SDIP52M6 SDIP52M6-DE
56 600 mil 9 SDIP56M6 SDIP56M6-DE

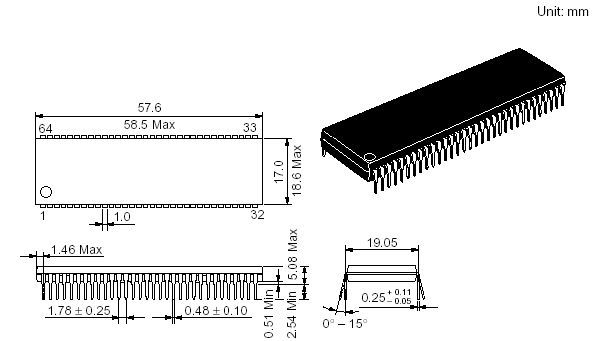

64 750 mil 9 SDIP64M7.5 SDIP64M7.5-DE

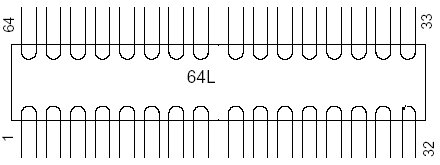

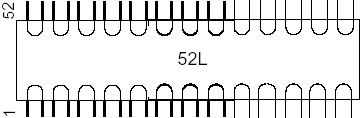

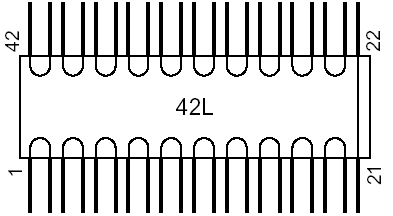

For Daisy Chain add -DE to end of Part Number.
For Lead Free Add -TIN=Sn100, -F=Ni-Pd to Part Number
