SMD.2, SMD.5, SMD1, SMD2
Ceramic Power Package


SMD.2 , SMD.5 , SMD-1 , SMD-2 , SMD5C Ceramic Case Power Discrete Semiconductor
JEDEC Size X/Y Standard
Plating
Order Number
Outline Drawing
Rotatable
Model
Open Package
Rotatable
Model
Sealed Lid
- Size 5.4mm x 8mm Gold SMD.2 SMD.2-N
360°  Model
SMD.2
360°  Model
TO-276AA Size 7.52mm x 10mm Gold SMD.5 SMD.5-N
360°  Model
SMD.5
360°  Model
TO-276AB Size 11.5mm x 16mm Gold SMD1 SMD1-N
360°  Model
SMD1
360°  Model
TO-276AC Size 13.4mm x 17.5mm Gold SMD2 SMD2-N
360°  Model
SMD2
360°  Model
TO-276xx Size 7.5mm x 13.8mm Gold SMD5C SMD5C-N
360°  Model
SMD5C
360°  Model
Standard Plating Gold (Au)  •   For SnPb Solder Coating add -SC end of part number.
For parts without Lid, add -N to end of part number

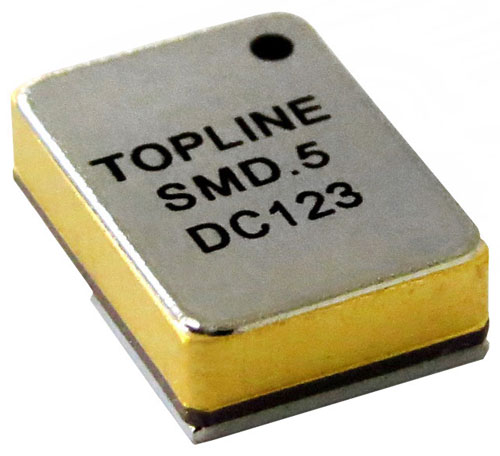

Daisy chain add -DC123 to end of part number for all leads shorted.



Step Lids for SMD.2 , SMD.5 , SMD-1 , SMD-2, SMD5C

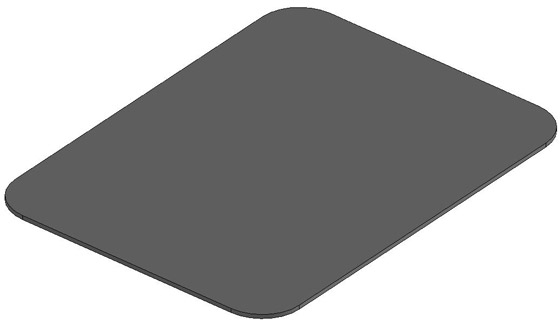

Top View

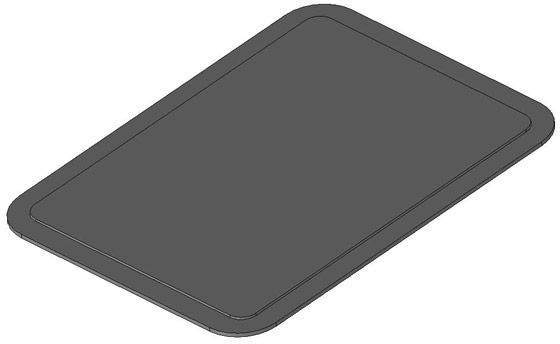

Bottom View
DWG Size X/Y Plating Order Number Rotatable
Model
200020 Size 5.35mm x 7.9mm Nickel LID SMD.2 LID SMD.2
360°  Model
200500 Size 7.4mm x 10mm Nickel LID SMD.5 LID SMD.5
360°  Model
200100 Size 11.3mm x 15.75mm Nickel LID SMD1 LID SMD1
360°  Model
200200 Size 12mm x 17.4mm Nickel LID SMD2 LID SMD2
360°  Model
200300 Size 7.4mm x 13.7mm Nickel LID SMD5C LID SMD5C
360°  Model
FINAL FINISH: ELECTROLESS NICKEL (Ni) 2.54um (100um)
Seam Seal


Download Solidworks® e-Drawings software to view rotatable:    PC Version  •  Mac Version
