MELF Cylindrical Diode
Glass     Plastic
Case Code Size & Description Qty on Reel Tape Width Order Number Click Image
Outline Drawing
SM1-PLASTIC MELF
2.5 x 5.0mm		 5000 12mm SM1E13A-PLASTIC
LL41-Glass MELF
DO-213AB, LL35, LL41
2.5 x 5.0mm		 5000 12mm SM1E13A-GLASS
SOD80 mini-MELF
DO-213AA, LL34
1.6 x 3.5mm		 2500 8mm SOD80E7A
SOD87 mini-MELF
2.0 x 3.5mm		 2000 8mm  SOD87E7A
For Lead Free, add -TIN to part number.



MELF SQUARE ENDS (Hermetic Mil-Type)

TopLine
Part Number		 Alternate
Description		 Length
"A"		 Flange End
"D"		 Flange Thick
"B" 		Gap
"C"		 Ref Image
D-5B E-CASE
MELF-B
500W		 0.200~0.225"
5.0~5.8mm		 0.137"~0.148"
3.5~3.8mm		 0.019"~0.028"
0.48~0.72mm		 0.003"
0.076mm		 1N6102AUS~
1N6137AUS
D-5C G-CASE
1500W		 0.205~0.245"
5.2~6.2mm		 0.183"~0.202"
4.6~5.1mm		 0.019"~0.028"
0.48~0.72mm		 0.003"
0.076mm		 1N6138AUS~
1N6173AUS
MELF-1 - 0.168~0.230"
4.2~5.9mm		 0.091"~0.128"
3.4~3.8mm		 0.019"~0.028"
0.48~0.72mm		 0.003"
0.076mm		 -
D-5A MELF-A 0.168~0.200"
4.27~5.08mm		 0.091"~0.103"
2.3~2.6mm		 0.019"~0.028"
0.48~0.72mm		 0.003"
0.076mm		 1N5802US
1N5804US
1N5806US
MELF-C - 0.168~0.300"
4.2~7.6mm		 0.091"~0.128"
2.3~3.3mm		 0.019"~0.028"
0.48~0.72mm		 0.003"
0.076mm		 -
MELF-D - 0.168~0.300"
4.2~7.6mm		 0.137"~0.148"
3.5~3.8mm		 0.019"~0.028"
0.48~0.72mm		 0.003"
0.076mm		 -
MELF-E - 0.168~0.300"
4.2~7.6mm		 0.175"~0.195"
4.4~5.0mm		 0.019"~0.028"
0.48~0.72mm		 0.003"
0.076mm		 -
TBA - 0.168~0.195"
4.2~5.0mm		 0.070"~0.085"
1.8~2.2mm		 0.019"~0.028"
0.48~0.72mm		 0.003"
0.076mm		 -
MicroMELF - 0.070~0.078"
1.8~2.0mm		 0.047"~0.049"
1.2~1.25mm		 -
0.012
0.3mm		 0.003"
0.076mm		 -
QuadroMELF - 0.130~0.145"
3.3~3.7mm		 0.055"~0.063"
1.4~1.6mm		 -
0.012
0.3mm		 0.003"
0.076mm		 -
Specify Bulk or Tape and Reel


Rectangular Case - Diode / Rectifier
Gull-Wing Leads    Flat Leads     J-Leads
Case Code Size & Description Qty on Reel Tape Width Order Number Click Image
Outline Drawing		   Solidworks Model
SOD15 7.0L x 6.0W x 2.3H
Plastic
DO214AB-SMCJ 		700-750
3200~3500		 16mm SOD15E7A
SOD15E13A
SOD106 4.3L x 3.6W x 2.3H
Plastic
DO214AC 		1500
5000~7500		 12mm SOD106E7A
SOD106E13A
SOD110 2.0L x 1.4W x 1.6H
Ceramic		 Call 12mm SOD110E7A
SOD123G 2.7 x 1.5mm
Gull Wing		 3000 8mm SOD123E7A
SOD123F
DO-219AB		 2.7 x 1.5mm
Flat Leads		 3000 8mm SOD123F-E7A

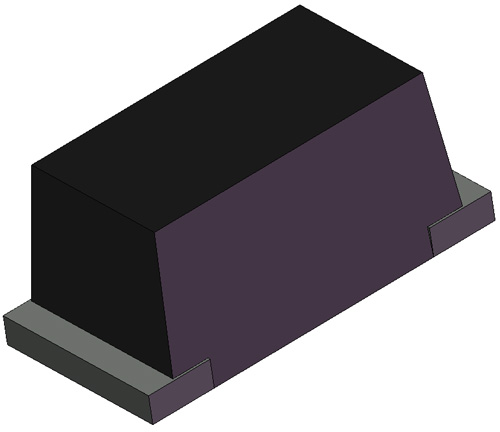

SOD123FW
DO-219AB		 3.5 x 1.6mm
Wide Flat Leads		 2500 8mm SOD123FW-E7A-DC12
Zero Ohm Jumper
SOD323G
SC76		 1.7 x 1.3mm
Gull Wing
SC76		 3000 8mm SOD323E7A
SOD323FS
DO-219AC		 1.9 x 1.3mm
Narrow Flat Lead		 3000 8mm SOD323FS-E7A
SOD323FW 2.5 x 1.25mm
Wide Flat Lead		 3000 8mm SOD323FW-E7A
SOD523F
SC79F		 1.2 x 0.8mm
Flat Leads		 3000
4000		 8mm SOD523E7A
SC79
SOD523FL
SC79FL		 1.2 x 0.8mm
Flat Leads		 4000 8mm SOD523FL-E7A
SC79		 Model
SOD723F 1.0 x 0.6mm
Flat Leads		 3000 8mm SOD723E7A
SOD923F 0.8 x 0.6mm
Flat Leads		 8000 8mm SOD923E7A

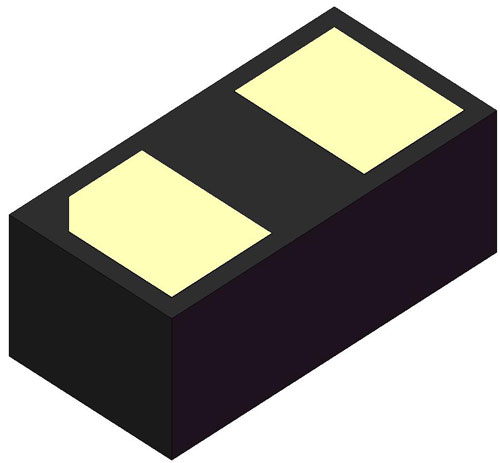

QFN2-0201 0.6 x 0.3mm
Bottom Terminals		 10000 8mm DFN2-0201E7A-G   360 ° Model
SMAF
SOD128		 4.5 x 2.5mm
Wide Flat Leads		 2000
7500		 12mm SMAF-E7A-T-DC12
SMAF-E13A-T-DC12
Zero Ohm
SMBF 5.2 x 3.5mm
Wide Flat Leads		 4000 12mm SMBF-E13A-T-DC12
Zero Ohm Jumper
SMCF 6.0 x 4.5mm
Wide Flat Leads		 3000 12mm SMCF-E13A-T-DC12
Zero Ohm Jumper
For Lead Free, add -T or -TIN to number.

SOD Axial Diode

Sintered Glass
Hermetically Sealed Glass
Size Code Body Size Wire Diameter Package Order Number Click Image
Outline Drawing

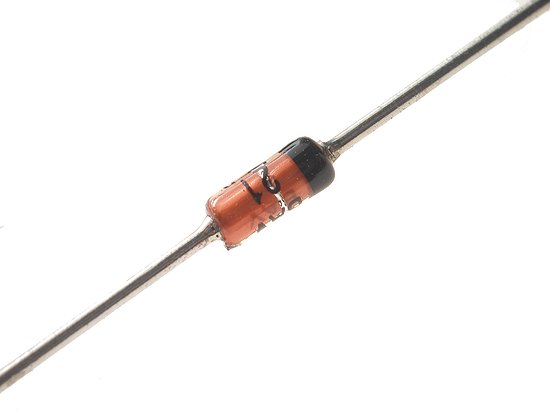

SOD27 4.2 x 1.85mm 0.56mm Bulk
Reel		 SOD27B
SOD27-T&R

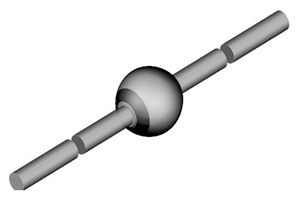

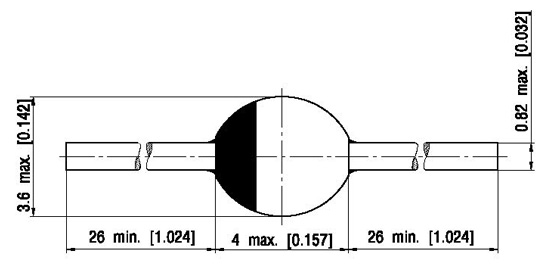

SOD57 3.6 x 4.0mm 0.62mm Bulk SOD57

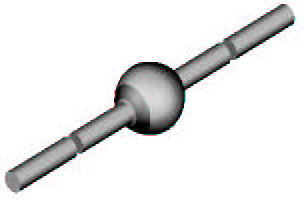

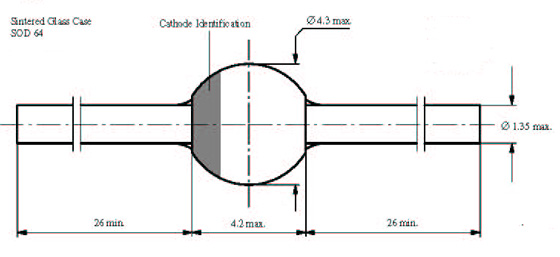

SOD64 4.3 x 4.2mm 1.35mm Bulk SOD64
For Lead Free, add -TIN to part number.
