SABER 4-Board Array
Advanced Mixed Technology

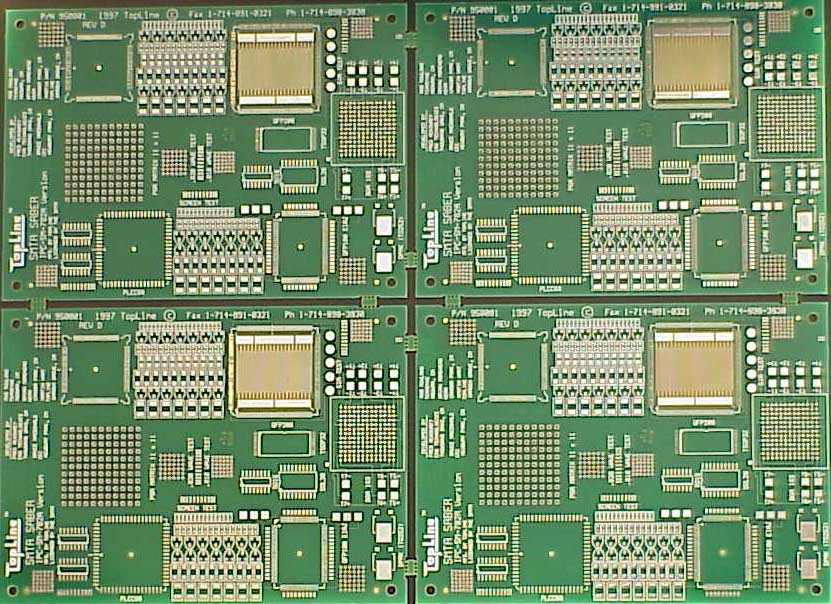

Click here for enlarged photo of single PCB.





     The SABER 4-Board Array has helped many SMTA members to define and refine their surface mount assembly processes.
The SABER Board is used by mainstream surface mount manufacturers throughout the industry to test such capabilities as:

  • component placement accuracy
  • cleanliness
  • SIR (surface insulation resistance)
  • solder paste screening
  • solder joint integrity
  • wave soldering test coupons
  • placement speed (chip shooting)

    The SABER Board is supplied as a routed, snap-apart, four board panelized array.

    Features:
  • Hot Air Soldering Leveling
  • LPI Solder Mask
  • FR4 Board .062"
  • Double Sided
  • Tooling Holes .125"
  • Fiducial Marks

    HP Saber Alloy Test Kit:
  • To HP Saber Kits
  • Comes standard as a
    4-board panelized array.
    Size: 8" x 11" (200 x 280mm)

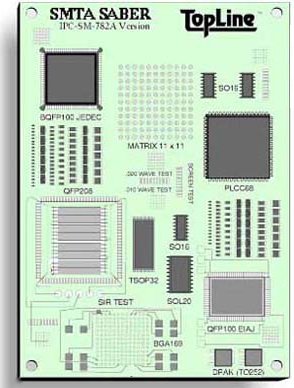

    Click here for enlarged photo.

    BGA After Mounting (back side) BGA After Mounting (top side)

      Manual Assembly Machine Run
    Component Pitch
    Order #
    950000
    1 Kit

    Order #
    950012
    12 Kits

    Order #
    950024
    24 Kits

    Order #
    950048
    48 Kits

    Order #
    950096
    96 Kits
    Saber 4-Board Array   1 array 3 arrays 6 arrays 12 arrays 24 arrays
    QFP208 0.5mm 4 12 24 48 96
    TSOP32 0.5mm 4 12 24 48 96
    QFP100 0.65mm 4 12 24 48 96
    BQFP100 25 mils 4 12 24 48 96
    BGA169 1.5mm 4 12 24 48 96
    PLCC68 1.27mm 4 12 24 48 96
    SO16 1.27mm 12 50 100 200 300
    SOL20 1.27mm 4 12 50 50 100
    DPAK (TO252) 1.27mm 10 25 50 100 200
    SOT23 - 100 300 500 1000 3000
    0402 Chip - 100 500 1000 2000 5000
    0603 Chip - 100 500 1000 2000 5000
    0805 Chip - 100 500 1000 2000 5000
    1206 Chip - 100 250 1000 2000 5000
    1210 Chip - 100 200 500 1000 1000
    DIP14 100 mils 8 25 50 100 200

    Optional Accessories
    Click here for free download Parts Placement Data X, Y, Theta ASCII File PN 950004.
    Click here for free Solder Paste Artwork, Gerber File PN 950005.

    Spare Parts
    Components Quantity Order Number
    4-Board Array 1 950001
