TO18

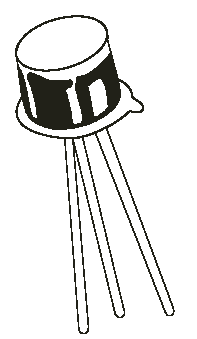

JEDEC TO-18 Package
TopLine Dummy Component
For training, practice and evaluation


Click for Outline Drawing

Quick Specs:
Pin Count 3L
Pitch 0.100" (5.08mm) 90°
Body 0.20" Dia (5.0 mm)
Metal Body

Use and Applications:
IPC Solder Training & Practice
Equipment Evaluation
Prototype PWB

Availability:
Delivery Stock to 4 weeks

Part Numbers:
TO18 = SnPb (Tin-Lead)
TO18-TIN = Sn100 (Pb-Free)
TO18-GOLD = Au (Pb-Free)


Part Numbering System
TO18 - Option
Jedec Series - Plating
Metal Case - Blank = SnPb
TIN = Sn100
GOLD = Au
Options: open Headers and cans available for packaging live die.
State your die size requirement.
