JEDEC Matrix Trays       Updated
    X, Y and Step Dimensions   Jan 2013
    See Drawing Last Page

      Dimensions are metric (mm)
    TopLine does not guarantee the accuracy of this list.   PDF Version
  BGA
                Up Left Up Left
                Corner Corner
    JEDEC     Columns Rows Cells (+X) (-Y) -Y step +X Step
  Type Standard Var BGA Body Size N1 N2 N3 M M1 M2 M3
  BGA CO-029 AAA 5mm x 5mm 16 36 576 8.70 8.75 8.50 7.90
  BGA CO-029 AA 7mm x 7mm 13 32 416 11.55 11.80 9.40 9.40
  BGA CO-029 AAB 8mm x 8mm 12 29 348 10.75 11.90 10.40 10.40
  BGA CO-029 AB 9mm x 9mm 10 26 260 16.65 15.00 11.40 11.40
  BGA CO-029 AY 10mm x 10mm 10 24 240 9.00 9.15 12.90 13.10
  BGA CO-029 AC 11mm x 11mm 8 22 176 17.20 16.80 13.40 14.50
  BGA CO-029 AZ 12mm x 12mm 9 21 189 9.55 10.00 14.75 14.60
  BGA CO-029 AD 13mm x 13mm 8 20 160 15.45 15.00 15.00 15.00
  BGA CO-029 AE 15mm x 15mm 7 18 126 16.35 11.30 17.20 17.20
  BGA CO-029 AF 17mm x 17mm 6 15 90 19.20 21.00 19.50 19.50
  BGA CO-029 AG 19mm x 19mm 6 14 84 14.60 18.79 21.34 21.34
  BGA CO-029 AH 21mm x 21mm 5 12 60 20.15 26.05 23.90 23.90
  BGA CO-029 AJ 23mm x 23mm 5 12 60 16.95 17.25 25.50 25.50
  BGA CO-029 AK 25mm x 25mm 4 11 44 26.70 20.00 27.50 27.50
  BGA CO-029 AL 27mm x 27mm 4 10 40 24.15 26.10 29.20 29.20
  BGA CO-029 AM 29mm x 29mm 4 9 36 20.85 31.10 31.60 31.40
  BGA CO-029 AN 31mm x 31mm 3 9 27 25.05 21.90 33.60 42.90
  BGA CO-029 AP 33mm x 33mm 3 8 24 32.45 33.25 35.50 35.50
  BGA CO-029 AR 35mm x 25mm 3 8 24 29.95 24.50 38.00 38.00
  BGA CO-029 AX 37.5mm x 37.5mm 3 7 21 27.95 37.50 40.00 40.00
  BGA CO-029 AT 40mm x 40mm 3 7 21 25.65 30.60 42.30 42.30
  BGA CO-029 AU 42.5mm x 42.5mm 2 6 12 26.70 43.75 45.50 82.50
  BGA CO-029 AV 45mm x 45mm 2 6 12 30.00 30.00 51.00 75.90
  BGA CO-029 AW 47.5mm x 47.5mm 2 6 12 30.00 31.25 50.50 75.90
  BGA CO-029 AX 50mm x 50mm 2 5 12 41.45 51.50 53.00 53.00
  RECTANGULAR PACKAGE
  BGA CO-029 BF 16mm x 8mm 9 20 180 8.20 12.60 20.70 11.95
  BGA CO-029 BG 13mm x 11mm 11 15 165 9.55 10.25 15.50 14.60
  BGA CO-029 BE 22mm x 14mm 8 12 96 11.60 24.95 24.10 16.10
  BGA CO-029 BA 22mm x 14mm 7 12 84 12.75 23.30 24.40 18.40
  BGA CO-029 BB 21mm x 18.5mm 6 13 78 14.60 16.50 23.50 21.34
  BGA CO-029 BC 25mm x 21mm 5 11 55 20.95 20.00 27.50 23.50
  BGA CO-029 BD 32.5mm x 25mm 4 8 32 26.70 33.25 35.50 27.50









  JEDEC Matrix Trays
    X, Y and Step Dimensions
    See Drawing Last Page

    Dimensions in mm
    TopLine does not guarantee accuracy of this list.

  QFP, TQFP, LQFP
                From From
                Corner Corner
  Metric JEDEC     columns Rows Cells (+X) (-Y) -Y step +X Step
  Type Standard Var QFP Body Size N1 N2 N3 M M1 M2 M3
  TQFP CS-007 AA 5mm Square 12 30 360 10.20 11.05 10.10 10.50
  TQFP CS-007 AB 7mm Square 10 25 250 11.25 11.10 12.20 12.60
  QFP CS-004 AA 10mm Square 6 16 96 18.30 17.25 18.70 19.86
  TQFP CS-007 AC 10mm Square 8 20 160 13.00 13.10 15.20 15.70
  TQFP CS-007 AJ 12mm Square 7 17 119 13.95 14.30 17.90 18.00
  QFP CS-004 AB 14mm Square 6 14 84 15.45 17.75 21.50 21.00
  TQFP CS-007 AE 14mm Square 6 15 90 15.45 15.40 20.30 21.00
  TQFP CS-007 AG 20mm Square 5 12 60 17.55 17.80 25.40 25.20
  TQFP CS-007 AH 24mm Square 4 10 40 20.70 20.70 30.40 31.50
  QFP CS-004 AD 28mm Square 3 8 24 30.93 27.93 37.02 37.02
  TQFP CS-007 AJ 28mm Square 4 9 36 19.65 28.70 32.20 32.20
  QFP CS-004 AE 32mm Square 3 8 24 26.57 25.13 37.82 41.38
  QFP CS-004 AF 40mm Square 2 6 12 29.22 31.10 50.56 77.46
  QFP CS-004 AC 14mm x 20mm 6 11 66 15.45 22.50 27.00 21.00
  TQFP CS-007 AF 14mm x 20mm 6 12 72 15.45 17.80 25.40 21.00


  BQFP
                From From
      Size       Corner Corner
  Bumpered JEDEC   Lead Count columns Rows Cells (+X) (-Y) -Y step +X Step
  Type Standard Var BQFP - PQFP N1 N2 N3 M M1 M2 M3
  BQFP CS-002 AC 100 PIN 5 11 55 17.81 19.05 27.69 25.07
  BQFP CS-002 AD 132 PIN 4 9 36 20.94 23.98 33.38 31.34


  QFN
                From From
              Corner Corner
    JEDEC     columns Rows Cells (+X) (-Y) -Y step +X Step
  Type Standard Var QFN Size N1 N2 N3 M M1 M2 M3
  QFN CO-034 AA 3x3mm ~ 6x6mm 14 35 490 8.15 7.90 8.80 9.20
  QFN CO-034 AB 7x7mm ~ 9x9mm 10 26 260 10.35 10.00 11.80 12.80
  QFN CO-034 AC 10x10mm ~ 12x12mm 8 21 168 11.95 11.00 14.65 16.00
  BGA CO-029 AZ 12mm x 12mm 9 21 189 9.55 10.00 14.75 14.60





  JEDEC Matrix Trays
    X, Y and Step Dimensions
    See Drawing Last Page

    Dimensions in mm
    TopLine does not guarantee accuracy of this list.



  TSOP (T1)
                Corner Corner
    JEDEC     Columns Rows Cells (+X) (-Y) -Y step +X Step
  Type 1 Standard Var  Body Size N1 N2 N3 M M1 M2 M3
  TSOP (I) CS-008 AA 6 X14mm (24L) 16 15 256 8.70 15.00 19.00 7.90
  TSOP (I) CS-008 AB 6 x16mm (24L) 16 15 240 8.70 14.00 20.50 7.90
  TSOP (I) CS-008 AC 6 x 18mm (24L) 16 13 208 8.70 16.50 23.50 7.90
  TSOP (I) CS-008 AD 6 x 20mm (24L) 16 12 192 8.70 17.25 25.50 7.90
  TSOP (I) CS-008 BA 8 x 14mm (32L) 13 16 208 8.85 15.00 19.00 9.85
  TSOP (I) CS-008 BB 8 x 16mm (32L) 13 15 195 8.85 14.00 20.50 9.85
  TSOP (I) CS-008 BC 8 x 18mm (32L) 13 13 169 8.85 16.50 23.50 9.85
  TSOP (I) CS-008 BD 8 x 20mm (32L) 13 12 156 8.85 14.50 26.00 9.85
  TSOP (I) CS-008 CA 10 x 14mm (40L) 10 16 160 14.40 15.00 19.00 11.90
  TSOP (I) CS-008 CB 10 x 16mm (40L) 10 15 150 14.40 14.00 20.50 11.90
  TSOP (I) CS-008 CC 10 x 18mm (40L) 10 13 130 14.40 16.50 23.50 11.90
  TSOP (I) CS-008 CD 10 x 20mm (40L) 10 12 120 14.40 17.25 25.50 11.90
  TSOP (I) CS-008 DA 12 x 14mm (48L) 8 16 128 15.80 15.00 19.00 14.90
  TSOP (I) CS-008 DB 12 x 16mm (48L) 8 15 120 15.80 14.00 20.50 14.90
  TSOP (I) CS-008 DC 12 x 18mm (48L) 8 13 104 15.80 16.50 23.50 14.90
  TSOP (I) CS-008 DD 12 x 20mm (48L) 8 12 96 15.80 17.25 25.50 14.90
  TSOP (I) CS-008 EA 14 x 16mm (56L) 7 16 112 18.15 15.75 18.90 16.60
  TSOP (I) CS-008 EB 14 x 18mm (56L) 7 14 98 18.15 21.65 20.90 16.60
  TSOP (I) CS-008 EC 14 x 20mm (56L) 7 13 91 18.15 20.10 22.90 16.60


  TSOP (T2)
                Up Left Up Left
                Corner Corner
    JEDEC   Lead Count and Columns Rows Cells (+X) (-Y) -Y step +X Step
  Type 2 Standard Var Body Size N1 N2 N3 M M1 M2 M3
  TSOP(II) CS-005 AA 7.62 x 17.14mm 11 16 176 12.30 13.95 19.14 11.13
  TSOP(II) CS-005 AB 10.16 x 18.41mm 9 15 135 13.27 14.56 20.42 13.67
  TSOP(II) CS-005 AC 10.16 x 20.95mm 9 13 117 13.27 19.74 22.96 13.67
  TSOP(II) CS-005 AE 7.62 x 18.41mm 11 15 165 12.30 14.56 20.42 11.13
  TSOP(II) CS-005 AF 10.16 x 22.22 (23.5)mm 9 12 108 13.27 15.60 25.80 13.67
  TSOP(II) CS-005 AG 10.16 x 26.03mm 9 11 99 13.27 16.50 28.20 13.67








  JEDEC Matrix Trays
    X, Y and Step Dimensions
    See Drawing Last Page

    Dimensions in mm (Inch)
    TopLine does not guarantee accuracy of this list.


  PLCC
                Up Left Up Left
                Corner Corner
    JEDEC     columns Rows Cells (+X) (-Y) -Y step +X Step
  Type Standard Var PLCC Pin Count N1 N2 N3 M M1 M2 M3
  PLCC CO-016 AG 44 Square 4 10 40 0.899" 1.180" 1.180" 1.184"
  PLCC CS-003 AG 44 Square 4 10 40 16.5mm 23.73mm 20.58mm 20.58mm
  PLCC CO-016 AH 52 Square 4 9 36 0.869" 1.307" 1.307" 1.204"
  PLCC CS-003 AH 52 Square 4 9 36 21.71mm 18.78mm 23.12mm 23.12mm
  PLCC CO-016 AI 68 Square 3 7 21 1.079" 1.679" 1.679" 1.596"
  PLCC CS-003 AJ 68 Square 3 7 21 25.65mm 30.6mm 28.2mm 28.2mm
  PLCC CO-016 AJ 84 Square 3 7 21 1.070" 1.148" 1.684" 1.605"
  PLCC CS-003 AK 84 Square 3 7 21 34.67mm 24.38mm 33.28mm 33.28mm

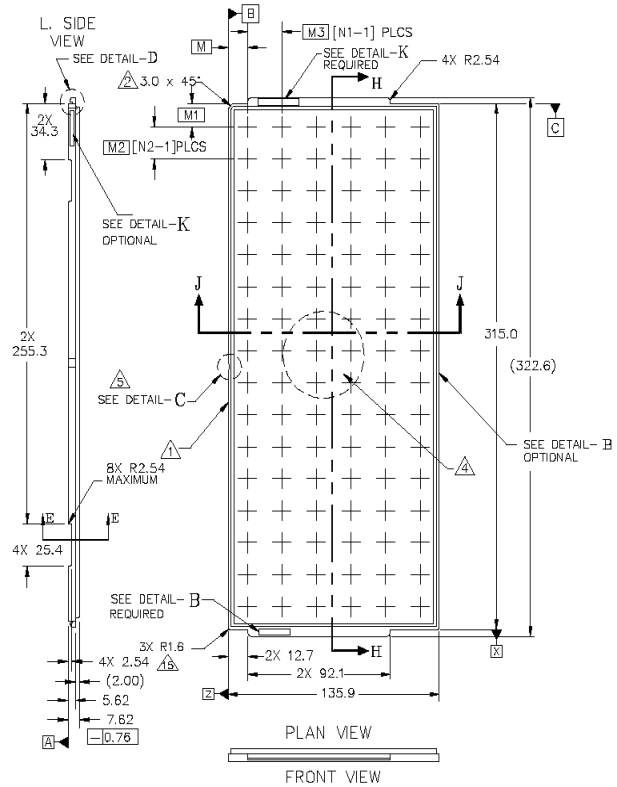

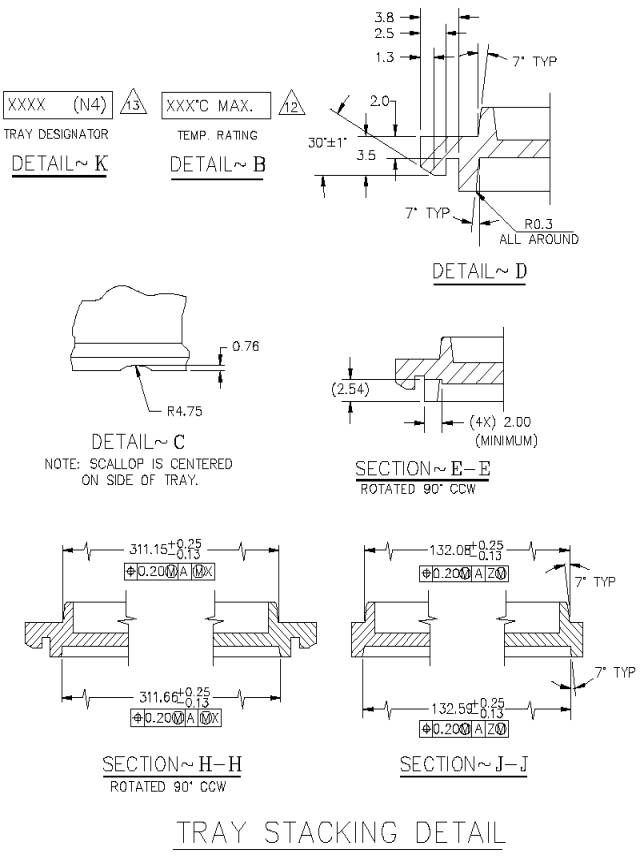

    Typical JEDEC Outline
