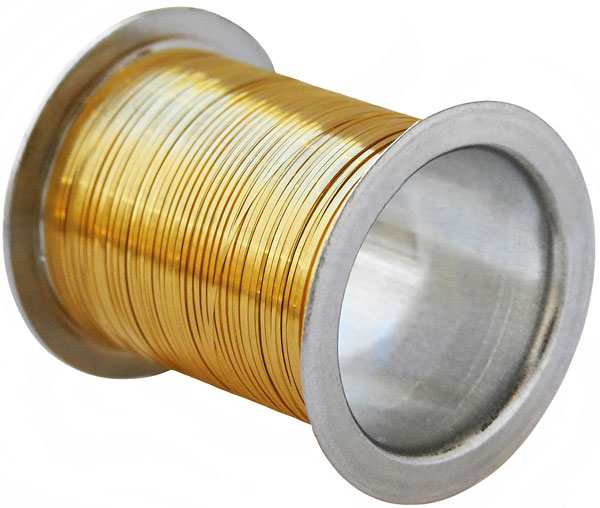

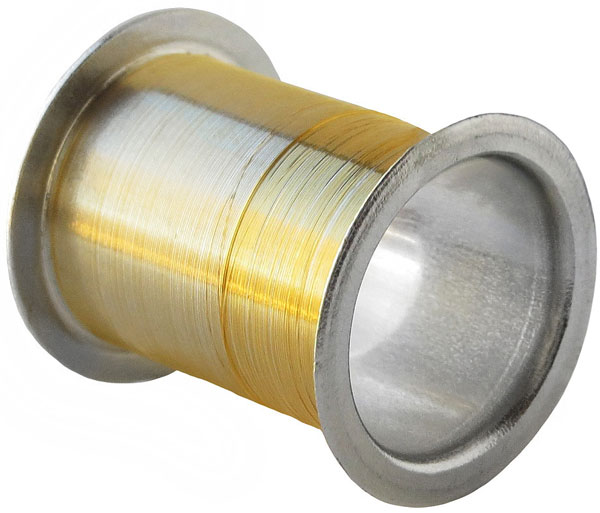

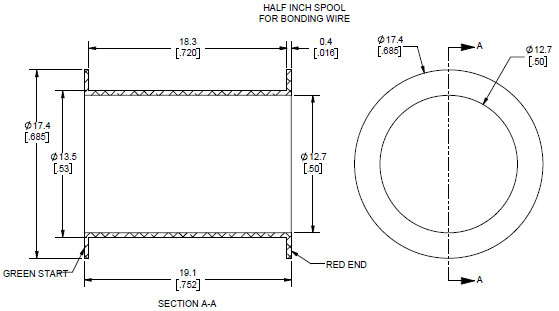

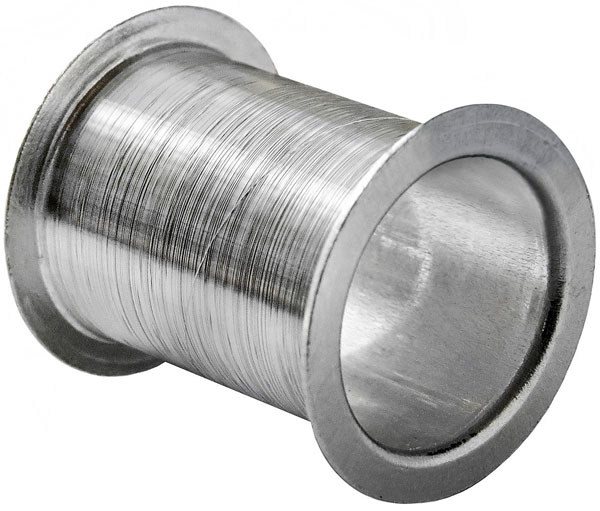

Available from:  Bonding Wire Catalog Bonding wire provided by Tanaka. TopLine rewinds Half-Inch Spools for West•Bond® Machines     Au Gold Bonding Wire GLD-H    M3 Al Aluminum Bonding Wire TABN Ribbon Bonding Wire AuR -Au Gold Green Start Spool References: HS   •  Applications   •   ±Tolerance Part# System  •   Order Number Bonders   •   CapillaryOrder Number Westbond 2-inch Despooler   About Half-Inch Spools: TopLine respools half-inch spools with materials provided by TANAKA. TANAKA is the premier manufacturer of bonding wire to the semiconductor industry. TANAKA offers a full range of Gold (Au) and Aluminum (Al-Si1%) covering all applications of wedge and ball bonding. Gold ribbon available on 1/2-inch and 2-inch spools. Go to 2-inch spools for automatic bonders     Green=Start • Red=End.     GLD-H Series - Gold (Au) High Performance Wedge Bonding Wire   •   Go to 2-Inch Automated Bonding Model Alloy Ø Diameter ±1% μm Breaking Load (gf) Breaking Load (mN) El (%) Length Meters Length Feet Spool Size Part Number Order Nr GLD-H 4N Gold Au99.99% Wedge to Wedge Bonding Ø 18µm (Ø 0.7 mil) 4.0 gf Min 39 mN Min 3.5% Max 25m 50m 100m 75ft 150ft 328ft 1/2" Spool 1/2" Spool 2" Spool GLD-H-18H25 GLD-H-18H50 GLD-H-18A100 309189 309180 309181 Ø 20µm (Ø 0.8 mil) 6.0 gf Min 59 mN Min 3.5% Max 25m 50m 100m 75ft 150ft 328ft 1/2" Spool 1/2" Spool 2" Spool GLD-H-20H25 GLD-H-20H50 GLD-H20A100 309209 309200 309201 Ø 25µm (Ø 1.0 mil) 16 gf Min 156 mN Min 3.5% Max 10m 25m 50m 100m 33ft 75ft 150ft 328ft 1/2" Spool 1/2" Spool 1/2" Spool 2" Spool GLD-H-25H10 GLD-H-25H25 GLD-H-25H50 GLD-H-25A100 309258 309259 309250 309251 Ø 30µm (Ø 1.20 mil) 20 gf Min 196 mN Min 3.5% Max 25m 50m 100m 75ft 150ft 328ft 1/2" Spool 1/2" Spool 2" Spool GLD-H-30H25 GLD-H-30H50 GLD-H-30A100 309309 309300 309301 Ø 32µm (Ø 1.25 mil) 23 gf Min 225 mN Min 3.5% Max 25m 50m 100m 75ft 150ft 328ft 1/2" Spool 1/2" Spool 2" Spool GLD-H-32H25 GLD-H-32H50 GLD-H-32A100 309329 309320 309321 Ø 35µm (Ø 1.4 mil) 27 gf Min 1264 mN Min 4.5% Max 25m 50m 100m 75ft 150ft 328ft 1/2" Spool 1/2" Spool 2" Spool GLD-H-35H25 GLD-H-35H50 GLD-H-35A100 309359 309350 309351 Ø 38µm (Ø 1.5 mil) 35 gf Min 343 mN Min 4.5% Max 25m 50m 100m 75ft 150ft 328ft 1/2" Spool 1/2" Spool 2" Spool GLD-H-38H25 GLD-H-38H50 GLD-H-38A100 309389 309380 309381 Ø 50µm (Ø 2.0 mil) 45 gf Min 441 mN mMin 4.5% Max 25m 50m 100m 75ft 150ft 328ft 1/2" Spool 1/2" Spool 2" Spool GLD-H-50H25 GLD-H-50H50 GLD-H-50A100 309509 309500 309501 Note 1: For wedge to wedge bonding. Note 2: Ø18~30um diameter has maximum elongation 3.5%. Note 3: Standard Tolerance: Ø18~38μm ±1 μm   •   Ø40~50μm ±2μm Note 4: Wire diameter available: 12.5µm , 15µm , 18µm , 20µm , 23µm , 25µm , 28µm , 30µm , 32µm , 35µm , 38µm , and 50µm Note 5: Green=Start • Red=End.        M3 Series - Gold 4N General Pupose Au Alloy Bonding Wire  •   Go to 2-Inch Automated Bonding Model Alloy Ø Diameter ±1% μm Breaking Load (gf) Breaking Load (mN) El (%) Length Meters Length Feet Spool Size Part Number Order Nr M3 4N Gold Au99.99% Ball or Wedge Bond Ø 18µm (Ø 0.7 mil) 4.6~7.1 gf 45~70 mN 1.0~6.0% 25m 50m 100m 75ft 150ft 328ft 1/2" Spool 1/2" Spool 2" Spool M3-18H25 M3-18H50 M3-18A100 303189 303180 303181 Ø 20µm (Ø 0.8 mil) 5.7~8.8 gf 56~86 mN 2.0~6.0% 25m 50m 100m 75ft 150ft 328ft 1/2" Spool 1/2" Spool 2" Spool M3-20H25 M3-20H50 M3-20A100 303209 303200 303201 Ø 25µm (Ø 1.0 mil) 8.9~13.8 gf 87~135 mN 2.0~7.0% 25m 50m 100m 75ft 150ft 328ft 1/2" Spool 1/2" Spool 2" Spool M3-25H25 M3-25H50 M3-25A100 303259 303250 303251 Ø 30µm (Ø 1.20 mil) 12.9~19.8 gf 127~194 mN 2.0~9.0% 25m 50m 100m 75ft 150ft 328ft 1/2" Spool 1/2" Spool 2" Spool M3-30H25 M3-30H50 M3-30A100 303309 303300 303301 Ø 32µm (Ø 1.25 mil) 14.7~22.6 gf 144~222 mN 2.0~9.0% 25m 50m 100m 75ft 150ft 328ft 1/2" Spool 1/2" Spool 2" Spool M3-32H25 M3-32H50 M3-32A100 303329 303320 303321 Ø 33µm (Ø 1.3 mil) 15.6~24.0 gf 153~235 mN 2.0~9.0% 25m 50m 100m 75ft 150ft 328ft 1/2" Spool 1/2" Spool 2" Spool M3-33H25 M3-33H50 M3-33A100 303339 303330 303331 Ø 35µm (Ø 1.4 mil) 17.5~27.0 gf 172~265 mN 3.0~9.0% 25m 50m 100m 75ft 150ft 328ft 1/2" Spool 1/2" Spool 2" Spool M3-35H25 M3-35H50 M3-35A100 303359 303350 303351 Ø 38µm (Ø 1.5 mil) 20.7~31.8 gf 203~312 mN 4.0~12.0% 25m 50m 100m 75ft 150ft 328ft 1/2" Spool 1/2" Spool 2" Spool M3-38H25 M3-38H50 M3-38A100 303389 303380 303381 Ø 50µm (Ø 2.0 mil) 35.8~55.1 gf 351~541 mN 4.0~15.0% 25m 50m 100 75ft 150ft 328ft 1/2" Spool 1/2" Spool 2" Spool M3-50H25 M3-50H50 M3-50A100 303509 303500 303501 Note 1: Gold Alloy 4N (Au99.99%). M3 series is a gold wire for manual bonders for ball or wedge bonding. Note 2: Good squashed ball Note 3: Standard Tolerance: Ø18~38μm ±1 μm   •   Ø40~50μm ±2μm Note 4: Wire diameter available: 12.5µm , 15µm , 18µm , 20µm , 23µm , 25µm , 28µm , 30µm , 32µm , 35µm , 38µm , and 50µm Note 5: Green=Start • Red=End.        TABN Series - Aluminum Al-Si1% Wedge to Wedge Bonding Wire   •   Go to 2-Inch Automated Bonding Model Alloy Ø Diameter ±1% μm Breaking Load (gf) Breaking Load (mN) El (%) Length Meters Length Feet Spool Size Part Number Order Nr TABN Aluminum Al-1% Si With Nickel Doping Ø 18µm (Ø 0.7 mil) 6.7~7.5 gf 66~71 mN 0.5~4.5% 25m 50m 100m 75ft 150ft 328ft 1/2" Spool 1/2" Spool 2" Spool TABN-18H25 TABN-18H50 TABN-18A100 403189 403180 403181 Ø 20µm (Ø 0.8 mil) 8.0~10.0 gf 78~98 mN 0.5~4.5% 25m 50m 100m 75ft 150ft 328ft 1/2" Spool 1/2" Spool 2" Spool TABN-20H25 TABN-20H50 TABN-20A100 403209 403200 403201 Ø 25µm (Ø 1.0 mil) 13.0~15.0 gf 127~147 mN 0.5~4.5% 10m 25m 50m 100m 33ft 75ft 150ft 328ft 1/2" Spool 1/2" Spool 1/2" Spool 2" Spool TABN-25H10 TABN-25H25 TABN-25H50 TABN-25A100 403258 403259 403250 403251 Ø 30µm (Ø 1.20 mil) 17.0~19.0 gf 167~186 mN 0.5~4.5% 25m 50m 100m 75ft 150ft 328ft 1/2" Spool 1/2" Spool 2" Spool TABN-30H25 TABN-30H50 TABN-30A100 403309 403300 403301 Ø 32µm (Ø 1.25 mil) 19.0~21.0 gf 186~206 mN 0.5~4.5% 25m 50m 100m 75ft 150ft 328ft 1/2" Spool 1/2" Spool 2" Spool TABN-32H25 TABN-32H50 TABN-32A100 403329 403320 403321 Ø 33µm (Ø 1.3 mil) 19.0~21.0 gf 186~206 mN 0.5~4.5% 25m 50m 100m 75ft 150ft 328ft 1/2" Spool 1/2" Spool 2" Spool TABN-33H25 TABN-33H50 TABN-33A100 403339 403330 403331 Ø 35µm (Ø 1.4 mil) 26.0~29.0 gf 255~284 mN 0.5~5.0% 25m 50m 100m 75ft 150ft 328ft 1/2" Spool 1/2" Spool 2" Spool TABN-35H25 TABN-35H50 TABN-35A100 403359 403350 403351 Ø 38µm (Ø 1.5 mil) 31.0~34.0 gf 304~333 mN 0.5~5.0% 25m 50m 100m 75ft 150ft 328ft 1/2" Spool 1/2" Spool 2" Spool TABN-38H25 TABN-38H50 TABN-38A100 403389 403380 403381 Ø 50µm (Ø 2.0 mil) 47.0~53.0 gf 461~520 mN 0.5~6.0% 25m 50m 100m 75ft 150ft 328ft 1/2" Spool 1/2" Spool 2" Spool TABN-50H25 TABN-50H50 TABN-50A100 403509 403500 403501 Note 1: Uniform distribution of Si and stable mechanical property. Note 2: Good corrosion resistance under PCT. Note 3: TABN applications include Wedge to Wedge bonding. Note 4: TABW (without nickel doping) has been replaced with TABN series with nickel doping. Note 5: Standard Tolerance: Ø18~38μm ±1 μm   •   Ø40~50μm ±2μm   •   Ø60~80μm ±3μm Note 6: Wire diameter available: 18µm , 20µm , 25µm , 30µm , 32µm , 33µm , 35µm , 38µm , 40µm , and 50µm Note 7: Green=Start • Red=End.        AuR Series - Gold (Au) Bonding Ribbon 4N   •   Go to 2-Inch Automated Bonding Model Alloy Thickness Width Breaking Load (gf) Breaking Load (N) El (%) Length Meters Length Feet Spool Size Part Number Order Nr AuR Au Gold Ribbon 12.7um 25um (1.5mil) 4.8~9.8 gf 48~96 mN ≥ 2.0% 10m 33ft 1/2" Spool AuR-25x12.7H10 326510 38um (1.5mil) 7.2~15.0 gf 71~147 mN ≥ 2.0% 10m 33ft 1/2" Spool AuR-38x12.7H10 326380 50um (2.0mil) 9.5~19.7 gf 94~193 mN ≥ 2.0% 10m 33ft 1/2" Spool AuR-50x12.7H10 326500 75um (3.0mil) 14.3~29.5 gf 141~289 mN ≥ 2.0% 10m 33ft 1/2" Spool AuR-75x12.7H10 326520 100um (4.0mil) 19.1~39.4 gf 188~386 mN ≥ 2.0% 10m 33ft 1/2" Spool AuR-100x12.7H10 326530 125um (5.0mil) 23.8~49.2 gf 234~482 mN ≥ 2.0% 10m 33ft 1/2" Spool AuR-125x12.7H10 326540 150um (6.0mil) 28.6~59.1 gf 281~579 mN ≥ 2.0% 10m 33ft 1/2" Spool AuR-150x12.7H10 326550 16um (0.63 mil) 32um (1.25mil) 7.7~15.9 gf 75~156mN ≥ 2.0% 10m 32ft 1/2" Spool AuR-32x16H10 326320 20um (0.8 mil) 80um (3.0mil) 24.0~49.6 gf 235~486mN ≥ 2.0% 10m 32ft 1/2" Spool AuR-80x20H10 326090 200um (8.0mil) 60.0~124.0 gf 588~1215mN ≥ 2.0% 10m 32ft 1/2" Spool AuR-200x20H10 326570 25um (1.0mil) 50um (2.0mil) 18.8~38.8 gf 185~380 mN ≥ 2.0% 10m 33ft 1/2" Spool AuR-50x25H10 326100 75um (3.0mil) 28.1~58.1 gf 276~569 mN ≥ 2.0% 10m 33ft 1/2" Spool AuR-75x25H10 326110 100um (4.0mil) 37.5~77.5 gf 368~760 mN ≥ 2.0% 10m 33ft 1/2" Spool AuR-100x25H10 326120 125um (5.0mil) 46.9~96.9 gf 460~950 mN ≥ 2.0% 10m 33ft 1/2" Spool AuR-125x25H10 326130 150um (6.0mil) 56.3~116.3 gf 553~1140 mN ≥ 2.0% 10m 33ft 1/2" Spool AuR-150x25H10 326140 200um (8.0mil) 75.0~155.0 gf 736~1520 mN ≥ 2.0% 10m 33ft 1/2" Spool AuR-200x25H10 326150 250um (10.0mil) 93.8~193.8 gf 920~1900 mN ≥ 2.0% 10m 33ft 1/2" Spool AuR-250x25H10 326160 50um (2.0mil) 125um (5.0mil) 93.8~193.8 gf 920~1900 mN ≥ 2.0% 10m 33ft 1/2" Spool AuR125x50H10 326220 Note 1: AuR series Au Gold ribbon is fabricated using a dry process. No lubrication oils are introduced during fabrication. Excellent corrosion resistance. Note 2: Tanaka AuR ribbon is made using a rolled process. Edges are smooth without sharp edges. Good surface smoothness. Note 3: Tanaka's specially formulated winding process assures consistent de-spooling and smooth bonding. Not parallel winding. Note 4: Flat Au ribbon provides an excellent solution for RF devices. Note 5: AuR gold ribbon wire made in Japan. Note 6: Green=Start • Red=End.         Spool Dimensions Green Start Red End 5 Spool Pack   Half-Inch Spool Dimensions Spool Size A Flange Diameter B Shaft Diameter C Hub Diameter D Hub Thickness E Winding Width F Overall Width Spool Name Part Nbr Code 1/2-Inch 17.4mm 12.7mm 13.5mm 0.40mm 18.3mm 19.1mm AL-1/2 H 2-Inch 58.5mm 48.5mm 50.3mm 0.75mm 26.4mm 27.9mm AL-2 A Note 1: Round Wire is wound forward/cross pattern (Cross wound-cross hatch wind) Note 2: Ribbon Wire is wound forward/parallel Note 3: Start wire on spool with  Green tape. Note 4: End wire on spool with Red tape.     ± Tolerance Table Ø Diameter Tolerance Ø 15µm ~ 38µm (Ø 0.6 ~ 1.5 mil) ±1 μm Ø 40µm ~ 50µm (Ø 1.6 ~ 2.0 mil) ±2 μm     RLC Parametric Data Material Alloy Ø Mil Ø um R milli-ohm/mm 0 Hz (DC) R milli-ohm/mm 100 MHz Ls nH/mm 100~400 MHz Cs pF/mm 100~400 MHz Gold (4N Au) 0.6mil 15um 163.62 237.01 1.184 0.073 Gold (4N Au) 0.7mil 18um 119.98 182.77 1.140 0.077 Gold (4N Au) 0.8mil 20um 91.74 148.55 1.114 0.081 Gold (4N Au) 0.9mil 23um 72.24 122.39 1.074 0.085 Gold (4N Au) 1.0mil 25um 58.40 103.47 1.043 0.092 Gold (4N Au) 1.1mil 28um 49.08 88.68 1.012 0.098 Gold (4N Au) 1.2mil 30um 40.54 78.62 1.010 0.104 RLC Electrical Parametric Data PDF     Electrical Resistance Symbol Material Ø20μm Ø25μm Ø30μm Resistivity μΩ•cm Au 4N Gold 0.73 0.47 0.33 2.3 Al Al-1%Si TABN 0.99 0.56 0.44 3.1     Physical Properties Item Unit Gold Copper Aluminum Silver Palladium Platinum Atomic Symbol   Au Cu Al Ag Pd Pt Atomic Number   79 29 13 47 46 78 Atomic Weight   196.96655 63.546 26.981538 107.8682 106.42 195.078 Melting Point K 1336 1356 933 1234 1825 2042 Density (20°) g • cm-3 19.32 8.92 2.70 10.50 12.02 21.45 Resistivity (20°) μΩ • cm 2.300 1.694 2.700 1.630 10.80 10.58 Thermal Conductivity (0~100°) Wm-1 • K-1 315.5 397 238 425 75.2 73.4 Specific Heat (0~100°) JKg-1 • K-1 130 386 917 234 247 134.4 CTE (0~100°) PPM/°C 14.1 17.0 23.5 19.1 11.0 9.0 Young's Modulus G•Pa 88.3 136 69 100.5 121 169.9 Shear Modulus G•Pa 29.6 - 26.0 31.3 - -     HS Code - Harmonized System Tariff Item HS Code Wire Type 1a 7103.13.7000 Gold (Round) 1b 7108.13.5500 Gold (Flat Ribbon) 2a 7605.29.0000 Aluminum Al-1%Si       Wire Part Number System     GLD-H       -       25         H         50     Series   Ø Diameter  µm Spool Type Length Meters Standard Gold 4N (Au99.99%) M3 = (303xxx) Standard Wire GLD-H = (309xxx) Wedge to Wedge AuR = (326xxx) Au Ribbon Aluminum TABN = (403xxx) Al-1%Si   Code   Mil 12.5     0.5mil 15     0.6mil 18     0.7mil 20     0.8mil 23     0.9mil 25     1.0mil 28     1.1mil 30     1.2mil 32   1.25mil 33     1.3mil 35     1.4mil 38     1.5mil 50     2.0mil 60     2.4mil 70     2.7mil 80     3.0mil Au Ribbon Wire 38x12.7 = 38 x 12.7um 50x12.7 = 50 x 12.7um 75x12.7 = 75 x 12.7um 100x12.7 = 100 x 12.7um 125x12.7 = 125 x 12.7um 150x12.7 = 150 x 12.7um ----------------- 50x25 = 125 x 25um 75x25 = 125 x 25um 100x25 = 125 x 25um 125x25 = 125 x 25um 150x25 = 150 x 25um 200x25 = 200 x 25um 250x25 = 250 x 25um ----------------- 125x50 = 125 x 50um More Ribbon Sizes Aluminum Spool H = 1/2" x 3/4" (TS1) A = 2" x 1" Double Flange Meters   Feet     Shape 10       33ft         Ribbon 25       75ft           Round 50       150ft         Round 100     328ft         Round Meters controlling dimension     Wire Order Number       3         0         3         25         0     Alloy Shape Model Ø Diameter Length Code • Description 3 = Gold (Au) 4 = Aluminum (Al) Code   Description 0 = Round Wire 2 = Flat Ribbon (1/2-inch spool) Gold Wire (Au) 3 = M3 6 = AuR 9 = GLD-H Aluminum Wire (Al-Si1%) 3 = TABN µm     Mil 12     0.5mil 15     0.6mil 18     0.7mil 20     0.8mil 23     0.9mil 25     1.0mil 28     1.1mil 30     1.2mil 32   1.25mil 33     1.3mil 38     1.5mil 50     2.0mil Au Ribbon Wire 51 = 25 x 12.7um 38 = 38 x 12.7um 50 = 50 x 12.7um 52 = 75 x 12.7um 53 = 100 x 12.7um 54 = 125 x 12.7um 55 = 150 x 12.7um - - - - 10 = 50 x 25um 11 = 75 x 25um 12 = 100 x 25um 13 = 125 x 25um 14 = 150 x 25um 15 = 200 x 25um 16 = 250 x 25um - - - - 22 = 125 x 50um More Ribbon Sizes Code  Meters  Feet Round Wire 9 = 25m  (75ft) TS1 Spool 0 = 50m  (150ft) TS1 Spool 1 = 100m   (328ft) 2" Spool Ribbon Wire 0 = 10m  (33ft) TS1 Spool Meters controlling dimension TS1 = Half-inch Double Flange AL2 = 2-inch Spool Double Flange     Flat Wire Size Chart Call for Other Sizes     12.7um Thick         25um Thick         50um Thick     0.5mil 0.0005-inch 1.0mil 0.001-inch 2.0mil 0.002-inch Code • Width 38 = 38um (1.5mil) 50 = 50um (2.0mil) 52 = 75um (3.0mil) 53 = 100um (4.0mil) 54 = 125um (5.0mil) 55 = 150um (6.0mil) Code • Width 11 = 75um (3.0mil) 12 = 100um (4.0mil) 13 = 125um (5.0mil) 14 = 150um (6.0mil) 15 = 200um (8.0mil) 16 = 250um (10.0mil) Code • Width 22 = 125um (5.0mil)   TopLine Corporation 95 Highway 22 W Milledgeville, GA 31061, USA Toll Free USA/Canada (800) 776-9888 International: 1-478-451-5000 Email: sales@topline.tv ©2024 TopLine. All Rights Reserved. Home
