901000 Kit

Flip Chip Kit
FC176 203µm (8 mils) Pitch
K&S PB08-400x400 (old FTC PB8 4x4)

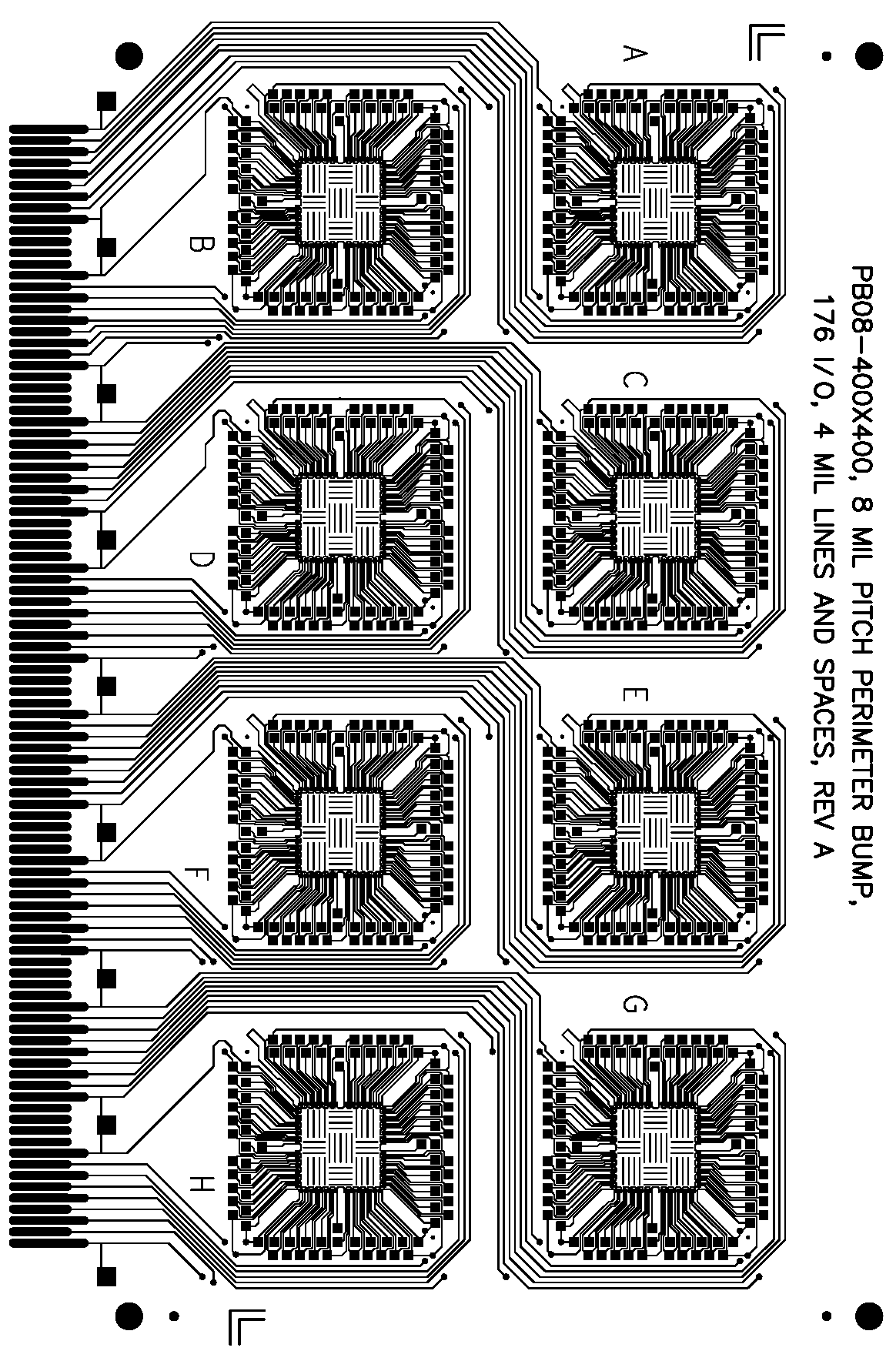

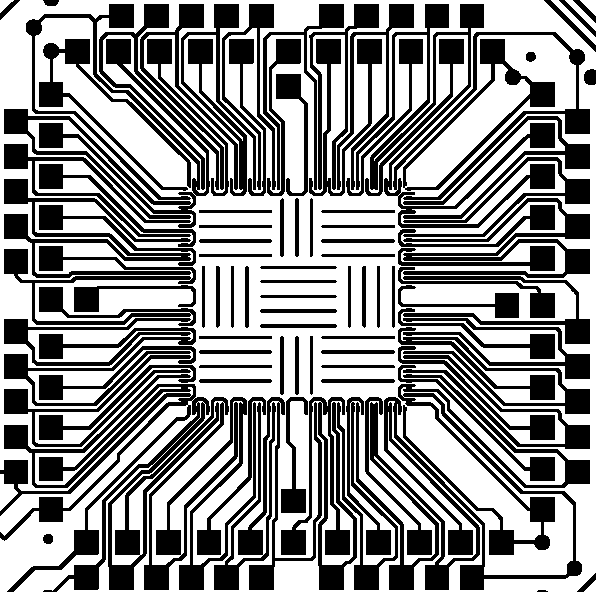

Enlarge Drawing    PDF Version   Single Site

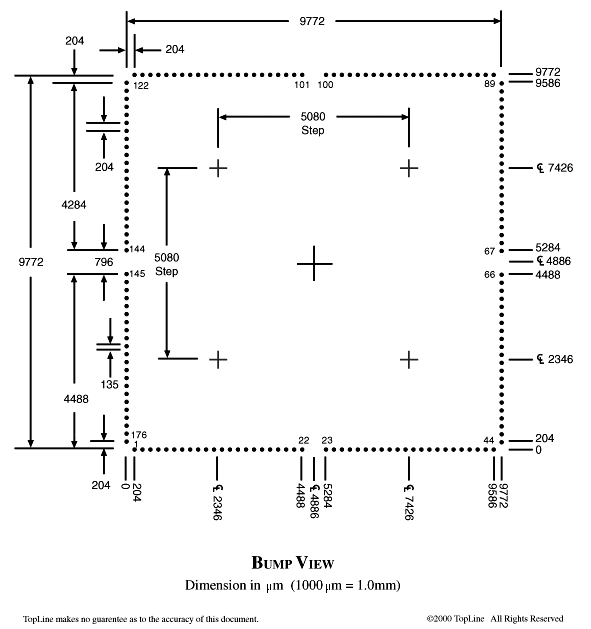

Pad Detail   Other Kits



Laminate FR4 board for placement and daisy chain continuity testing after assembly. Each substrate has 8 sites for mounting flip chips with 176 bumps 10.2mm x 10.2mm with 203µm pitch.


Laminate Substrate:

  • Double sided FR-4
  • Tg = 180°C
  • 3~8 micro-inch Gold flash over 100~200 microinches electroless nickel
  • 1/2-ounce copper thickness
  • Local and Global Fiducial Marks
  • Traces 4 mil lines and spaces
  • Single Sided mounting 8-sites
  • Green LPI Solder Mask
  • Fingers .05" (1.27mm) pitch
  • Board 4" x 6" (100 x 150mm)
  • Board Thickness .031" (0.8mm)
  • 4-tooling holes .125" (3.17mm)


    • Manual Assembly or Machine Run
    Kit Contents Kit Order Number
    901000
    Eutectic SnPb    		 Kit Order Number
    901900
    SAC Lead Free
    Laminate FR4 Board
    Ni-Au ENIG Finish    		 1 1
    Flip Chip FC176
    Eutectic SnPb Bumps    		 9 0
    Flip Chip FC176
    Lead Free Bumps    		 0 9

    Optional Accessories
    Parts Placement Data ASCII File
    Solder Paste Artwork, Gerber File
    Spare Board Only, Order Number 901001
