911001 Flip Chip Substrate
152um Pitch

Flip Chip 5mm (200 mil) Square
FC112 - 152um (6 mil)Pitch

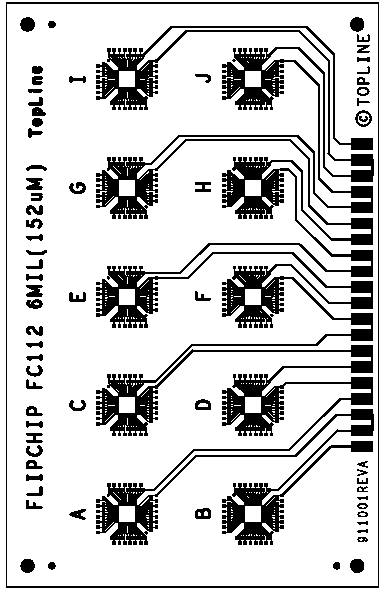

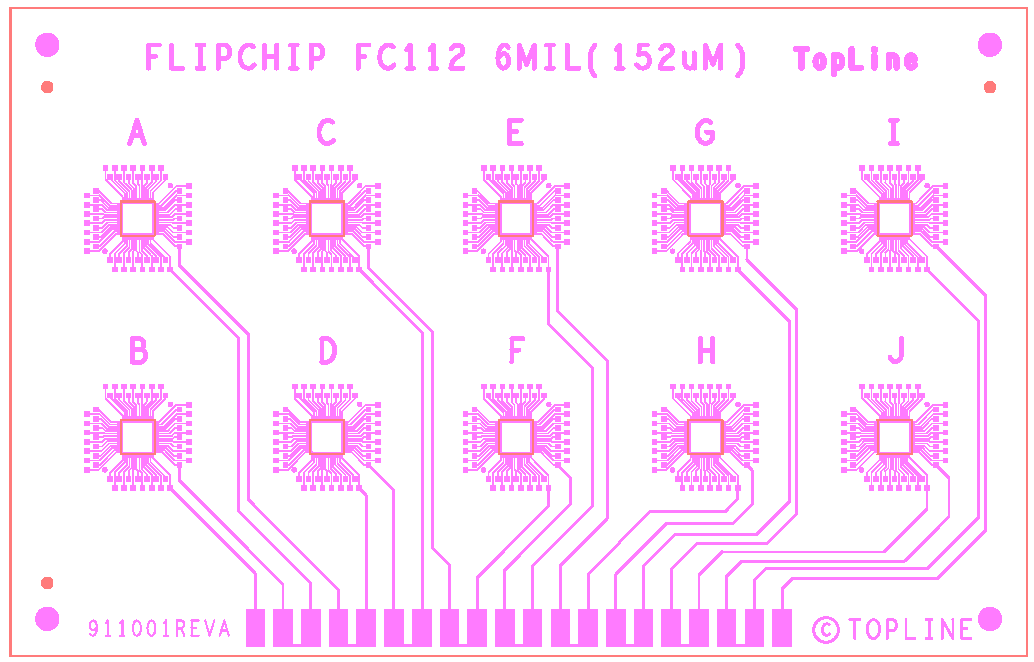

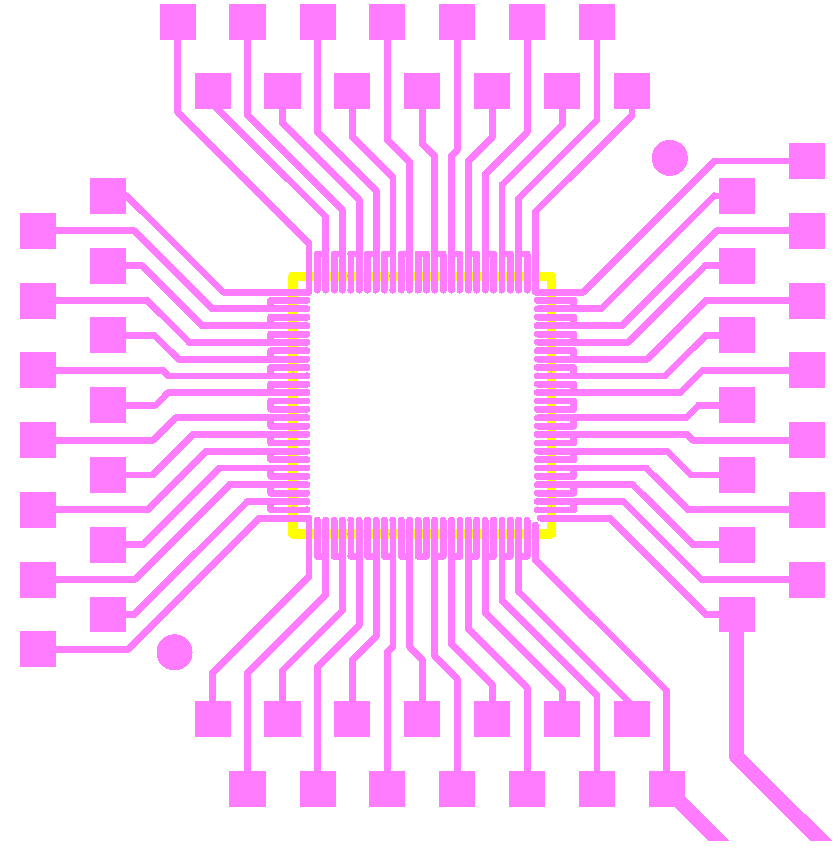

Enlarge Drawing       Enlarge (pdf)       Site Detail (pdf)      Single Site Detail



FR4 board for placement and daisy chain continuity testing after assembly. Substrate has 10 mounting sites for 5mm Flip Chip FC112 with 152um (6 mil) pitch


FR4 Substrate:

  • Tg 175°C
  • LPI Soldermask
  • Bondable Gold pads
  • Fiducial Marks
  • Daisy Chain Test Points
  • 3.5"x5.5" (89 x 140mm)
  • Thickness .062" (1.5mm)


    • Manual Assembly or Machine Run
    Kit Contents Kit Order Number
    911000
    Eutectic SnPb    		 Kit Order Number
    911002
    Eutectic SnPb    		 Kit Order Number
    911900
    Lead Free    		 Kit Order Number
    911901
    Lead Free
    Laminate FR4 Board
    Ni-Au ENIG    		 1 1 1 1
    Flip Chip FC112
    Eutectic SnPb Bumps    		 36 pcs 10 pcs - -
    Flip Chip FC112
    SAC Lead Free Bumps    		 - - 36 pcs 10 pcs
