28mm QFP 256
0.4mm Pitch Kit

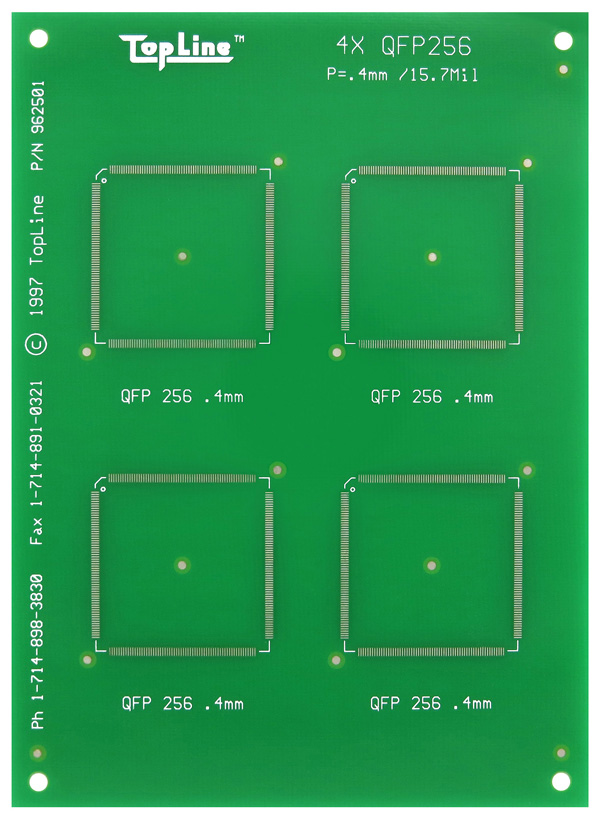

Enlarge: Bare Board
Board Size 4"x5.5" (10x14cm)

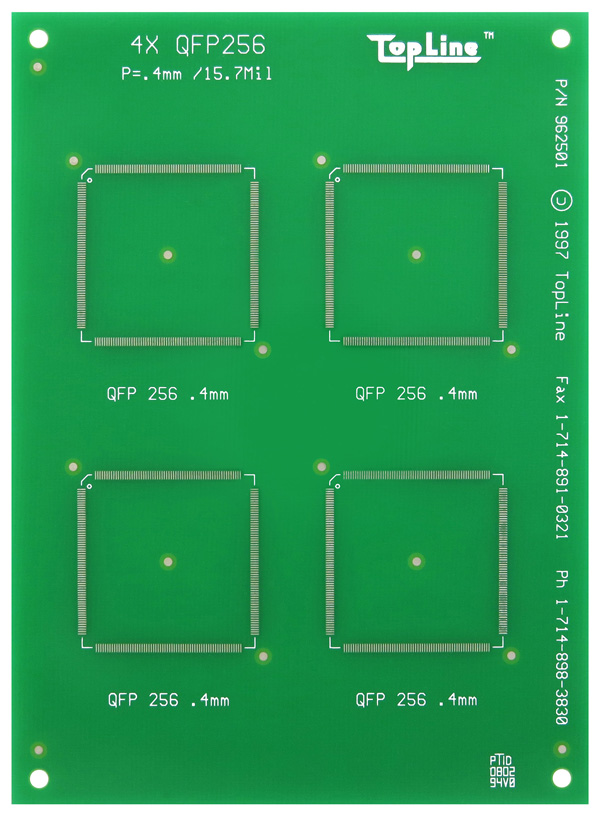

Click for bottom view



TopLine QFP 28mm ASSORTMENT Kit. Four mounting sites for 28mm QFP256 components for placement and solder practice. QFP256 with 0.4mm Pitch. Double sided. Bottom side has same mounting sites as the top side.

Board Features:

  • Choice of Final finish:
        • Immersion Tin (Sn)
        • ENIG (Ni/Au)Gold
        • OSP Copper
        • Immersion Silver
        • HASL SnPb
  • LPI Solder Mask - PSR4000 BN
  • FR4 Tg=170°C
  • Size - 4"x5.5" (10x14cm)
  • Thickness 0.062" (1.6mm)
  • 2-Layer Board
  • Lead Free RoHS Version
  • Tooling Holes .125" (3.17mm)
  • IPC Fiducials - 0.062" (1.57mm)
    •
      BOM Kit Contents
    Tin-Lead SnPb
    28mm QFP256 Kit
    Kit Quantities Available
    Kit BOM Components
    Per
    Board
    Order #
    962500
    1 Kit
    Order #
    962512
    12 Kits
    Order #
    962524
    24 Kits
    Order #
    962548
    48 Kits
    Order #
    962596
    96 Kits
    Board HASL - SnPb
    X = 0
    4th Digit Order#    		 Tin-Lead 1 12 24 48 96
    QFP256
    Size 28x28mm
    Pitch 0.4mm
    		 1 1 12 24 48 96

      BOM Kit Contents
    Lead Free
    28mm QFP256 Kit
    Kit Quantities Available
    Kit BOM Components
    Per
    Board
    Order #
    9625X0
    1 Kit
    Order #
    9625X1
    12 Kits
    Order #
    9625X2
    24 Kits
    Order #
    9625X4
    48 Kits
    Order #
    9625X9
    96 Kits
    Board - Tin (Sn)
    X = 2
    4th Digit Order#    		 RoHS Pb-Free 1 12 24 48 96
    Board Silver (Ag)
    X = 6
    4th Digit Order#    		 RoHS Pb-Free - - 24 48 96
    Board OSP (Cu)
    X = 8
    4th Digit Part#    		 RoHS Pb-Free - - 24 48 96
    Board - ENIG
    Gold (Ni/Au)
    X = 9
    4th Digit Order#    		 RoHS Pb-Free 1 12 24 48 96
    QFP256
    Size 28x28mm
    Pitch 0.4mm
    		 1 1 12 24 48 96


    Free Download Solder Paste Gerber & Parts Placement Data
    Step 1. Click Here for TopLine's Document Center. Sign up and Log in.
    Step 2. Click link "Gerber Files"
    Step 3. Click link "962501a" QFP256
    Step 4. Download files


    Kit Order Number System
    Tin-Lead (SnPb)
    962 5 ##
    Series Board Finish Quantity
    QFP256

    Board Size:
    4"x5.5" (10x14cm)    		 5 = HASL 00 = 1 Kit
    1 = 12 Kits
    24 = 24 Kits
    48 = 48 Kits
    96 = 96 Kits

    Other quantites available.

    Kit Order Number System
    Lead Free
    9625 2 #
    Series Board Finish Quantity
    QFP256

    Board Size:
    4"x5.5" (10x14cm)    		 2 = Tin (Sn)
    6 = Silver (Ag)
    8 = OSP (Cu)
    9 = ENIG Gold (NiAu)    		 0 = 1 Kit
    1 = 12 Kits
    2 = 24 Kits
    5 = 48 Kits
    9 = 96 Kits

    Other quantites available.

    Spare Boards
    Board Finish Lead-Free
    Pb-Free    		 Order Number
    HASL (Sn/Pb) Tin-Lead 962501
    Tin (Sn) RoHS 962502
    Silver (Ag) RoHS 962506*
    OSP (Cu) RoHS 962508*
    ENIG Gold (Ni/Au) RoHS 962509
      *Check Availability


    Spare Parts
    Full range of spare parts available
    RoHS Lead Free and Tin-Lead
    Contact TopLine to discuss your requirements
