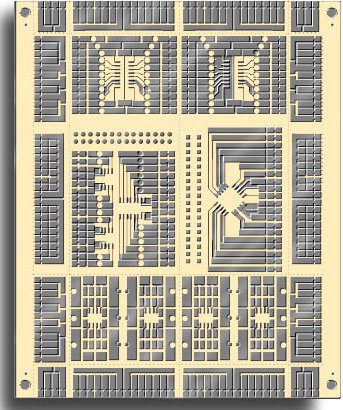

SMD Bread Board
Snaps Apart for Prototyping


Actual Size: 4.6" x 5.5" (117 x 140mm)

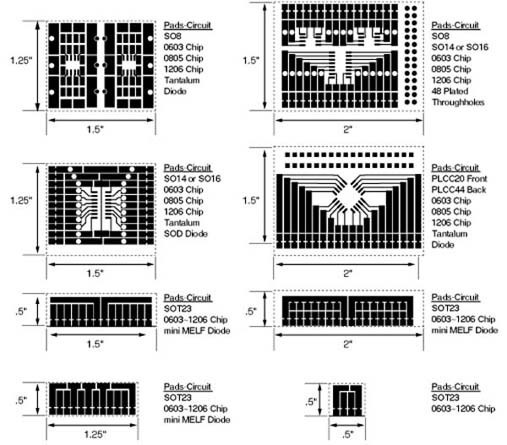

    TopLine's SMD Breadboard is scored to snap apart into 20 universal circuits. Designed for 100mil (2.54mm) SIP or DIP connection to mother board. Pads accept all common chips, SOT23, SOIC, PLCC20/44 tantalums, trimmers, potentiometers and more. Plated throughhole, double sided board allows circuit continuation on both sides of PCB.

Features:

  • Hot Air Soldering Leveling
  • FR4 Board .062"
  • Double Sided
  • Tooling Holes .125"
  • Fiducial Marks


    Click here to download our Kits catalog in PDF format.

    • Board Only Order Part Number 970500
