Rework 3 Practice Kit
Fine-Pitch and SMT

Go to: More Kits

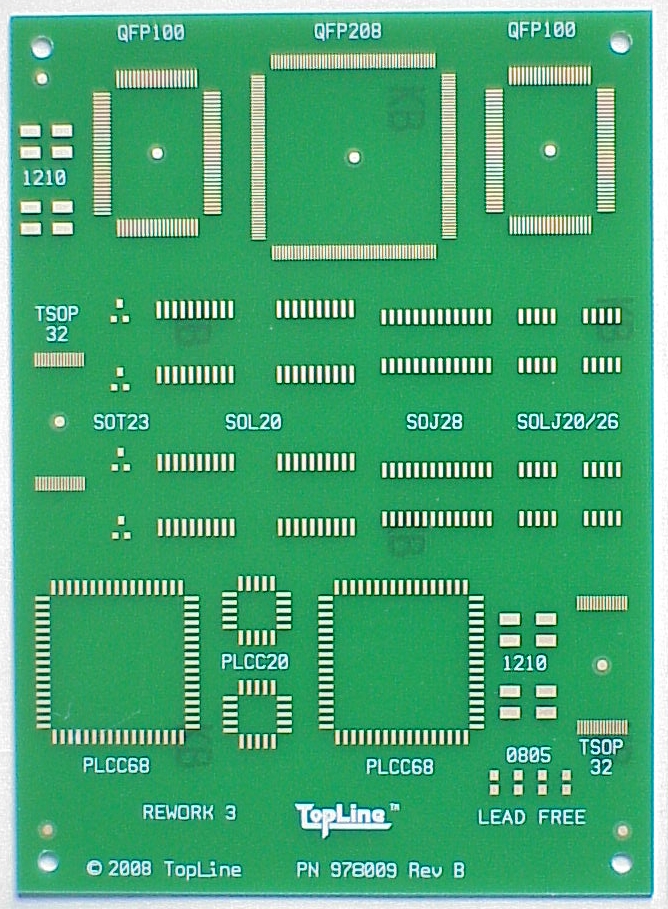

Enlarge: Bare Board
Board Size 4"x5.5" (10x14cm)
Single Sided Board.

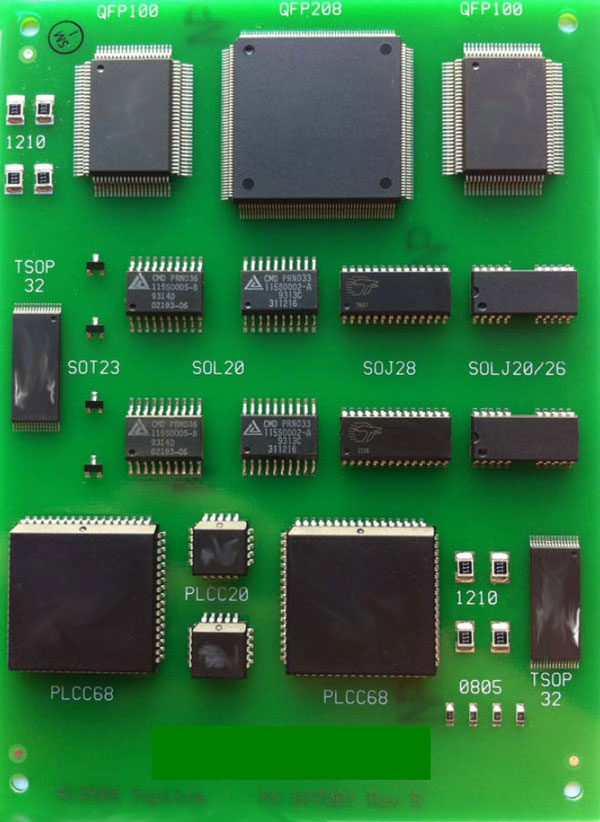

TopLine Rework 3 Kit. Top side has QFP, TOSP, SOJ, SOIC, SOT, PLCC and SMT chips. Easy, but yet challenging to assemble.

Board Features:

  • Choice of Final finish:
        • Immersion Tin (Sn)
        • ENIG (Ni/Au)Gold
        • OSP Copper
        • Immersion Silver
        • HASL SnPb
  • LPI Solder Mask - PSR4000 AUS5
  • FR4 Tg=170°C
  • Size - 4"x5.5" (10x14cm)
  • Thickness 0.062" (1.6mm)
  • Single Sided Board
  • Lead Free RoHS Version
  • Tooling Holes .125" (3.17mm)
  • IPC Fiducials - 0.062" (1.57mm)

    Enlarge:  Shown After Assembly

    •
      BOM Kit Contents
    Rework 3 Kit
    Kit Quantities Available
    Kit BOM Components
    Per
    Board
    Order #
    978X00
    1 Kit
    Order #
    978X10
    10 Kits
    Order #
    978X25
    25 Kits
    Order #
    978X50
    50 Kits
    Order #
    978X99
    100 Kits
    Board HASL - SnPb
    X = 0
    4th Digit Order#    		 Tin-Lead 1 10 25 50 100
    Board - Tin (Sn)
    X = 2
    4th Digit Order#    		 RoHS Pb-Free 1 10 25 50 100
    Board Silver (Ag)
    X = 6
    4th Digit Order#    		 RoHS Pb-Free - - 25 50 100
    Board OSP (Cu)
    X = 8
    4th Digit Part#    		 RoHS Pb-Free - - 25 50 100
    Board - ENIG
    Gold (Ni/Au)
    X = 9
    4th Digit Order#    		 RoHS Pb-Free 1 10 25 50 100
    QFP208
    Size 28x28mm
    Pitch 0.5mm (19.7mil)
    		 1 1 10 25 50 100
    QFP100
    Size 14x20mm
    Pitch 0.65mm (25.6mil)    		 2 2 20 50 100 200
    TSOP32 (I)
    Size 8x20mm
    Pitch 0.5mm (19.7mil)    		 2 2 20 50 100 200
    PLCC20
    Pitch 1.27mm (50mil)    		 2 2 20 50 100 200
    PLCC68
    Pitch 1.27mm (50mil)    		 2 2 20 50 100 200
    SO20
    Pitch 1.27mm (50mil)    		 4 4 40 100 200 400
    SOJ28
    Pitch 1.27mm (50mil)    		 2 2 20 50 100 200
    SOJ20/26
    Pitch 1.27mm (50mil)    		 2 2 20 50 100 200
    SOT23 4 4 40 100 200 400
    0805 Chip
    Metric 2012    		 4 4 40 100 200 400
    1210 Chip
    Metric 3225    		 8 8 80 200 400 800


    Free Download Solder Paste Gerber & Parts Placement Data
    Step 1. Click Here for TopLine's Document Center. Sign up and Log in.
    Step 2. Click link "Gerber Files"
    Step 3. Click link "978001a" Rework 3
    Step 4. Download files


    Kit Order Number System
    978 2 # #
    Series Board Finish Quantity
    Challenger 2

    Board Size:
    4"x5.5" (10x14cm)    		 0 = HASL
    2 = Tin (Sn)
    6 = Silver (Ag)
    8 = OSP (Cu)
    9 = ENIG Gold (NiAu)    		 00 = 1 Kit
    10 = 10 Kits
    25 = 25 Kits
    50 = 50 Kits
    99 = 100 Kits

    Other quantites available.

    Spare Boards
    Board Finish Lead-Free
    Pb-Free    		 Order Number
    HASL (Sn/Pb) Tin-Lead 978001
    Tin (Sn) RoHS 978002
    Silver (Ag) RoHS 978006*
    OSP (Cu) RoHS 978008*
    ENIG Gold (Ni/Au) RoHS 978009
      *Check Availability


    Spare Parts
    Full range of RoHS Lead Free and Tin-Lead spare parts available.
    Ask for quote on Spare Parts Kit for second side of board.
    Contact TopLine for to discuss your requirements.
