120-PIN Connector Kit
Plated Throughhole

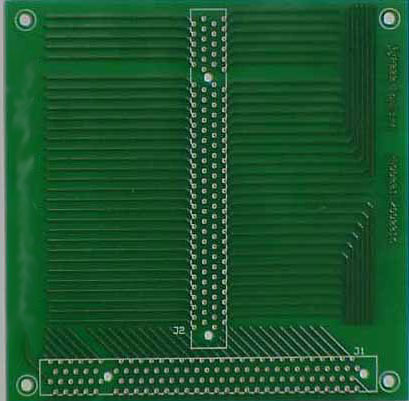

Enlarge: Bare Board
Board Size 4.0"x4.0" (14x14cm)

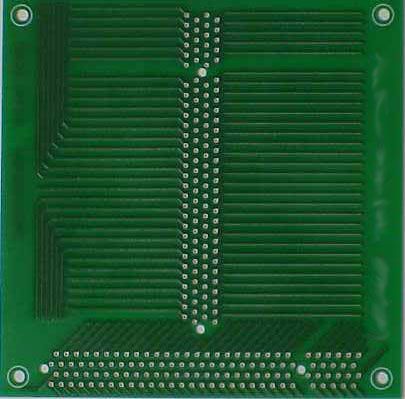

Click for bottom view



TopLine 120-Pin connector Kit has 2x mounting sites for 4-Rows 0.100" (2.54mm) Staggered Pitch Throughhole connectors. Plated hole diamater Ø24 mils (Ø0.61mm).

Total 240 plated holes. AMP connectors. Standard double sided. Avaiable with options such as heavy copper ground plane or multiple layers. Great for applications involving selective solder and solder dipping trials.

Board Features:

  • Choice of Final finish:
        • ENIG (Ni/Au) Gold RoHS
        • HASL (Sn/Pb) Tin-Lead
  • LPI Solder Mask - PSR4000BN Green
  • FR4 Tg=175°C
  • Size - 4.0"x4.0" (14x14cm)
  • Thickness 0.031 (0.8mm) or .062" (1.6mm)
  • 2-Layer Board - Standard
  • Heavy Copper Optional (PN 990014).
  • Plated Via Construction.
  • Tooling Holes .125" (3.17mm)
  • Fiducials - Not required

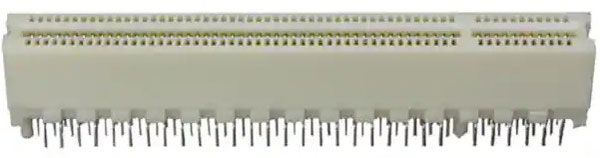

    Connector 120 Pin:
    SnPb 1-145154-2 (DP#159681)
    Lead-Free 1-5145154-2 (DP#162123)

    		•



    Free Download Solder Paste Gerber & Parts Placement Data
    Step 1. Click Here for TopLine's Document Center. Sign up and Log in.
    Step 2. Click link "Gerber Files"
    Step 3. Click link "990015" Connector
    Step 4. Download files


    Board Order Number System
    990 0 15
    Series Board Finish
    120-Pin Connector

    Board Size:
    4.0"x4.0"
    (14x14cm)    		 0 = Single Bare Board HASL SnPb
    15 = 0.031-Inch Thick
    0.8mm Thick

    16 = 0.062-Inch Thick
    1.6mm Thick

    ENIG NiAu
    19 = 0.031-Inch Thick
    0.8mm Thick

    20 = 0.062-Inch Thick
    1.6mm Thick

    Other thickness available.



    Complete Kits with Boards and connectors Order Number System
    990 0 07
    Series Board Finish
    120-Pin Connector

    Board Size:
    4.0"x4.0"
    (14x14cm)    		 0 = Single Bare Board HASL SnPb
    07 = 0.031-Inch Thick PCB
    0.8mm Thick
    With 2 connectors 120-Pins
    ------------------
    25 = 0.062-Inch Thick PCB
    1.6mm Thick
    With 2 connectors 120-Pins

    Other thickness available.

    ---------------

    ENIG NiAu
    TBA = 0.031-Inch Thick PCB
    0.8mm Thick
    With 2 connectors 120-Pins
    ------------------

    TBA = 0.062-Inch Thick PCB
    1.6mm Thick
    With 2 connectors 120-Pins

    Other thickness available.
