BGA1752 1.0mm Kit
Daisy Chain Ball Grid Array

Go to: CGA1752 Kit

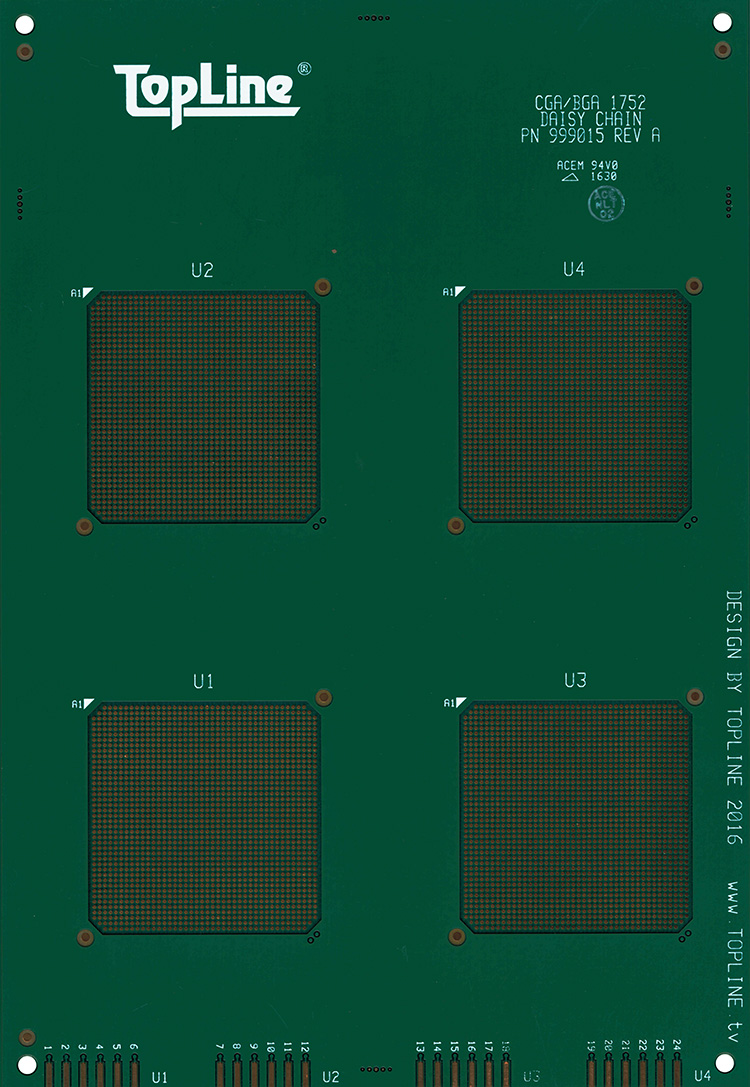

Enlarge: Bare Board
Board Size 5.5"x8.0" (14x20cm)

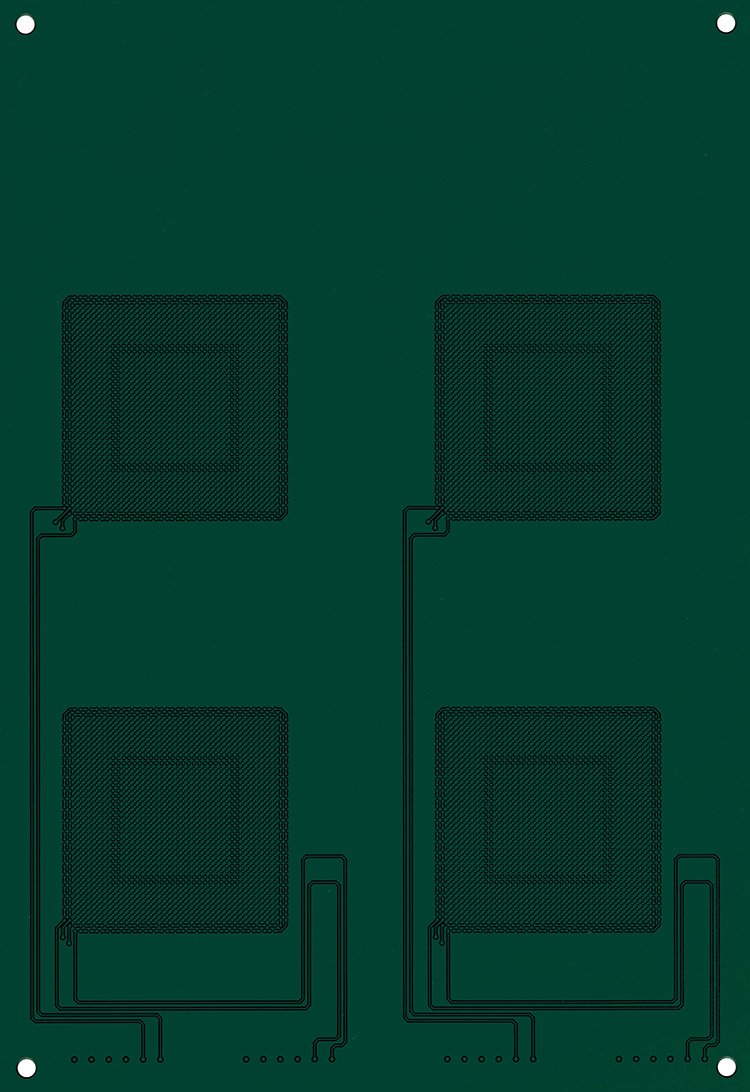

Click for bottom view



TopLine BGA1752 Kit has 4 daisy chain (DC427) mounting sites on the top side for BGA1752. Copper pad is Ø20mils (Ø0.50mm). SRO Mask opening Ø 28mil (Ø0.71mm).

Test points for 4 loops continuity measurements after mounting BGA1752. Daisy chain BGA1752 to verify correct assembly with a ohm-meter at 3 pairs of test points. Loops include 2 outer rings and double inner rings under the die area. Other pads are grounded to practice reflow with very heavy copper ground.

Pad Cu (copper) thickness 3.7mil (0.094mm) equivalent to 2.6-oz copper on 4-layers.

Board Features:

  • Choice of Final finish:
        • ENIG (Ni/Au)Gold
  • LPI Solder Mask - PSR4000BN Green
  • FR4 Tg=170°C
  • Size - 5.5"x8.0" (14x20cm)
  • Thickness 0.100" (2.5mm)
  • 4-Layer Board - Heavy Ground
  • Heavy Copper Fill 2.6-Oz
  • Via in Pad Construction.
  • Tooling Holes .125" (3.17mm)
  • IPC Fiducials - 0.062" (1.57mm)

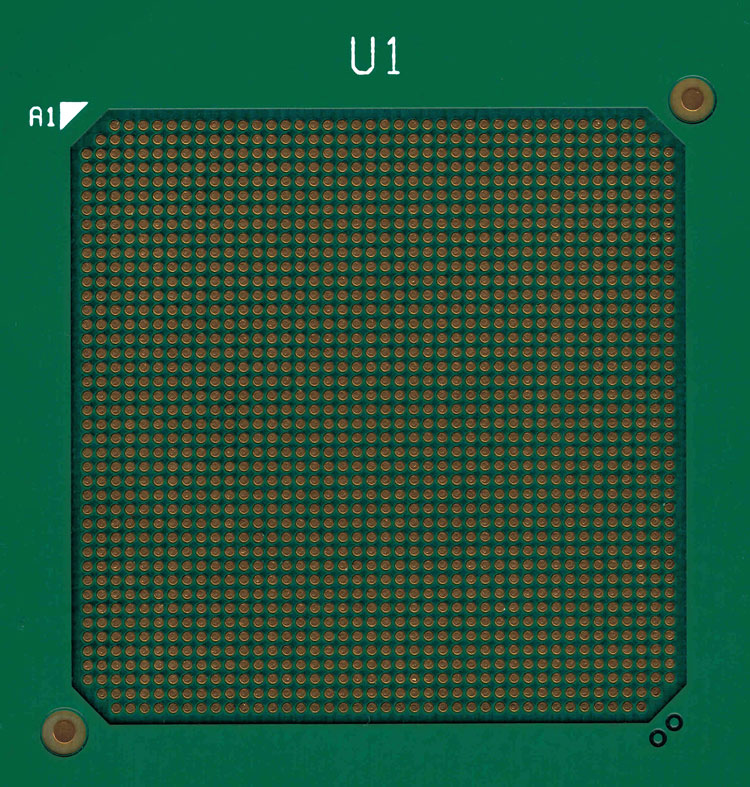

    Enlarge:  BGA1752 Mounting Site
    Click Daisy Chain

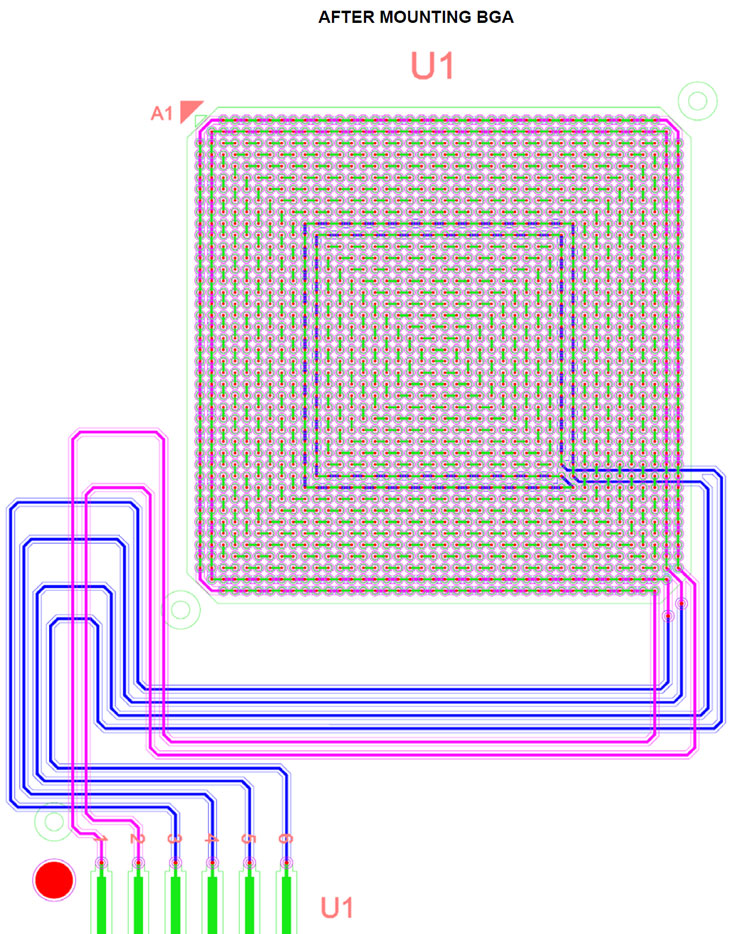

    After Mounting BGA1752

    		•



    Free Download Solder Paste Gerber & Parts Placement Data
    Step 1. Click Here for TopLine's Document Center. Sign up and Log in.
    Step 2. Click link "Gerber Files"
    Step 3. Click link "999016a" BGA1752 Board
    Step 4. Download files


    Board Order Number System
    999 0 16
    Series Board Finish
    BGA1752

    Board Size:
    5.5"x8.0"
    (14x20cm)

    Cu Pad Ø20mil
    0.50mil    		 0 = Single Bare Board 16 = ENIG (NiAu)

    Other final finish available.

    BGA1752 Daisy Chain Components
    Substrate Ball
    ØDiameter    		 Ball
    Material
    Plastic Ø25mil
    0.63mm    		 Sn63/Pb37
    Plastic Ø25mil
    0.63mm    		 SAC305
    Sn96.5/Ag3.0/Cu0.5
    Other ball configurations available
