µBGA ® TV-188M
Tessera Test Kit

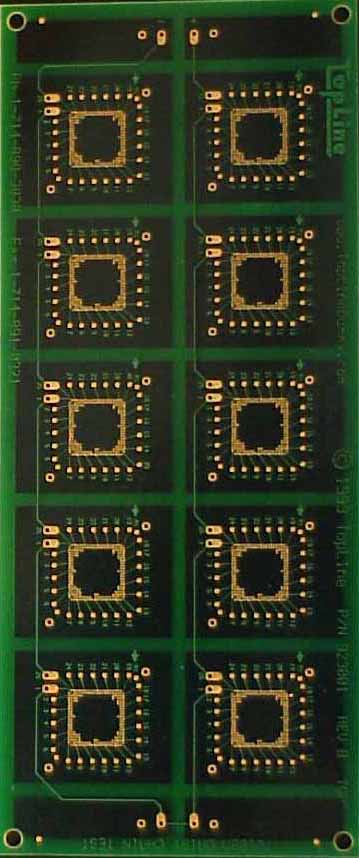

Actual Panel Size: 2.75" x 6.5" (7cm x 16.5cm)

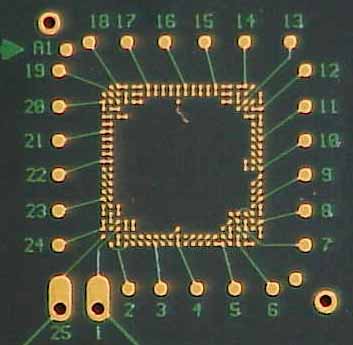

  Test board for Tessera 188 bump µBGA. Each board consists of 10 test coupons sites. Top side of board has daisy chain and 25 test points for continutity testing after assembly. The bottom side is for SIR and BIAS tests. Components supplied in waffle trays.

48 drill holes allow for hard wiring for testing of panel or coupons.

Features:

  • Gold Solder Pads
  • LPI Solder Mask
  • Tetra-functional FR4 Board
  • Multilayer with ground plane
  • Tooling Holes .125"
  • Fiducial Marks (1.0mm Dia.)

    Enlarge Photo

    •   Manual Assembly Machine run
    Kit Ingedients Pitch
    Order #
    923000
    1 Kit
    Order #
    923010
    10 Kits
    Panels in Kit   1 10
    µBGA188 in Kit 0.5mm 10 100

    Optional Accessories
    Parts Placement Data ASCII File - Order Number 923004
    Solder Paste Artwork, Gerber File - Order Number 923005

    Spare Parts
    Components Quantity Order Number
    Test Board Only 1 923001
