Challenger 2 Kit
Intermediate SMD

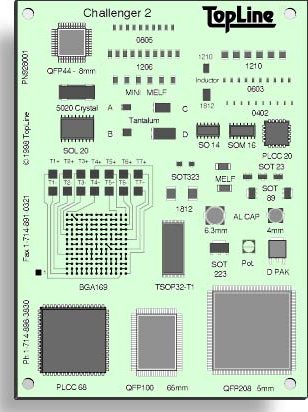

Click to Enlarge Assembly.
Actual Size: 4" x 5.5" (100 x 140mm)

   The new Challenger 2 Kit gives you a wide selection of 32 different SMD packages. Includes BGA with daisy chain continuity test, fine-pitch components and many discrete components.
Double-sided board incorporates "two-front-side" design so only one solder paste stencil is needed. Put your machine to the challenge with the new Challenger 2 Kit.

Features:

  • Hot Air Soldering Leveling
  • LPI Solder Mask
  • FR4 Board .062"
  • Double Sided
  • Tooling Holes .125"
  • Fiducial Marks

    Click to Enlarge unassembled PCB.

    • BGA After Mounting

      Manual Assembly Machine Run
    Component Pitch
    Order #
    928000
    1 Kit
    Order #
    928010
    10 Kits
    Order #
    928025
    25 Kits
    Order #
    928050
    50 Kits
    Order #
    928100
    100 Kits
    Board (Unassembled)   1 10 25 50 100
    TSOP32 0.5mm 1 10 25 50 100
    QFP208 0.5mm 1 10 25 50 100
    QFP100 0.65mm 1 10 25 50 100
    QFP44 0.8mm 1 10 25 50 100
    PLCC20 1.27mm 2 10 50 50 100
    PLCC68 1.27mm 1 10 25 50 100
    SO14 1.27mm 2 10 25 50 100
    SOM16 1.27mm 2 10 25 50 100
    SOL20 1.27mm 2 10 25 50 100
    BGA169 1.5mm 1 10 25 50 100
    SOT23 - 10 100 500 500 500
    SOT89 - 10 20 100 100 200
    SOT223 - 10 10 100 100 100
    SOT323 - 10 25 300 300 300
    DPAK - 1 10 25 50 100
    Crystal - 1 10 25 50 100
    TANTALUM A - 2 10 25 50 100
    TANTALUM B - 2 10 25 50 100
    TANTALUM C - 2 10 25 50 100
    TANTALUM D - 2 10 25 50 100
    Aluminum Cap 4mm - 2 10 25 50 100
    Aluminum Cap 6.3mm - 2 10 25 50 100
    0402 Chip - 10 100 250 500 1000
    0603 Chip - 10 100 250 500 1000
    0805 Chip - 10 100 250 500 1000
    1206 Chip - 10 100 250 500 1000
    1206 mini MELF - 10 100 250 500 500
    1210 Chip - 10 10 100 250 250
    1210 Inductor - 2 10 100 250 250
    1812 Chip - 2 20 50 100 200
    1812 Inductor - 1 10 25 50 100
    1812 Potentiometer - 1 10 25 50 100
    2308 MELF - 10 20 100 100 250

    Optional Accessories
    Parts Placement Data X, Y, Theta ASCII File Order Number 928004
    Solder Paste Artwork, Gerber File, Order Number 928005

    Spare Parts
    Components Quantity Order Number
    PC Board Only 1 928001
