FP14C50R.26x.34S-S

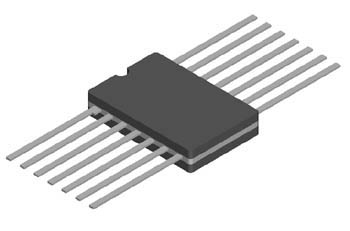

Flat Pack FP 14L
TopLine Dummy Component
For training, practice and evaluation


Click for Outline Drawing

Click for Solidworks 360° Rotatable Model

 Quick Specs:
Pin Count 14L
Pitch 50 mil - 0.050" (1.27mm)
Body Size 0.255"x.34" (6.5x8.6mm)
Side Braze flat lead without tie-bar
Standard Packaging in plastic carrier

Use and Applications:
IPC Solder Training Certification
Practice Lead Form and Trim
Equipment Evaluation
Prototype PWB

Availability:
Normally in Stock


Part Numbering System
FP 14 C 50 R .26x.34 S - S
Series Nbr Pins Lead
Info		 Pitch
Mils		 Body
Shape		 Body Size
Inch		 Braze - Lead
Plating
Flat Pack
Dual Sides		   C = Flat Leads
Trimmed
Without Tie-bar
Packed in Carrier		 50 Mils
0.050-inch
1.27mm		 Rectangular 0.255"x.34"
6.5mm x 8.6mm		 S = Side
(Sandwich)		   Solder
Coated
SnPb
Popular device for IPC solder training, lead forming and triming practice.
