FP14F50R.26x.34B
Flat Pack FP 14L
TopLine Dummy Component
For training, practice and evaluation

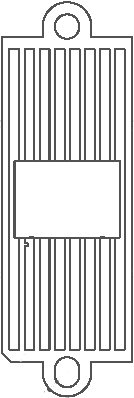

Click for Outline Drawing

 Quick Specs:
Pin Count 14L
Pitch 50 mil - 0.050" (1.27mm)
Body Size 0.255" x .34" (6.5x8.6mm)
Bottom Braze flat lead with tie-bar
Standard Packaging bulk tray

Use and Applications:
IPC Solder Training Certification
Practice Lead Form and Trim
Equipment Evaluation
Prototype PWB

Availability:
Delivery Stock to 4 weeks

Typical Part Numbers with Tie-Bar:
FP14F50R.26x.34B = Gold Leads. With Lid
FP14F50R.26x.34B-SC = Solder Dip. With Lid
FP14F50R.26x.34B-N = Gold Leads. Without Lid
FP14F50R.26x.34B-DE = Daisy Chain. Gold Leads
FP14F50R.26x.34B-DE-SC = Daisy Chain. Solder Leads


Part Numbering System
FP 14 F 50 R .26x.34 B - DE
Series Nbr Pins Lead
Shape		 Pitch
Mils		 Body
Shape		 Body Size
Inch		 Braze - Options
Flat Pack
Dual Sides		 14 = 14 Leads Flat Leads
With Tie-bar
Bulk Packed
in tray		 50 Mils
0.050-inch
1.27mm		 Rectangular 0.26"x.34"
6.5x8.6mm		 Bottom   -N=Without lid
-DE=Daisy Chain
-SC=Solder Dipped SnPb
Blank=Gold Leads. With lid.
Popular device for IPC solder training, lead forming and triming practice.



Daisy Chain Option -DE
