FP20C50R.27x.50S-SC

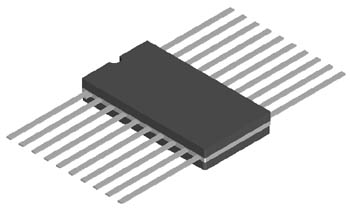

Flat Pack FP 20L
TopLine Dummy Component
For training, practice and evaluation


Click for Outline Drawing

 Quick Specs:
Pin Count 20L
Pitch 50 mil - 0.050" (1.27mm)
Body Size 0.27" x .50" (6.9x12.7mm)
Side Braze flat lead without tie-bar
Standard Packaging in carrier

Use and Applications:
IPC Solder Training Certification
Practice Lead Form and Trim
Equipment Evaluation
Prototype PWB

Availability:
Delivery Stock to 4 weeks

Typical Part Number without Tie-Bar:
FP20C50R.27x.50S-SC = Solder Coated (SnPb). With Lid


Part Numbering System
FP 20 C 50 R .27x.50 S - SC
Series Nbr Pins Lead
Info		 Pitch
Mils		 Body
Shape		 Body Size
Inch		 Braze - Options
Flat Pack
Dual Sides		 20 = 20 Leads Flat Leads
Without Tie-bar
Packed
in carrier		 50 Mils
0.050-inch
1.27mm		 Rectangular 0.27x.50"
6.9x12.7mm		 Side
Sandwich		   Solder
SnPb
Coated
With lid.
Applications: solder training, lead forming and triming practice.



Daisy Chain Option -DE
