FP20C50SQ.40B

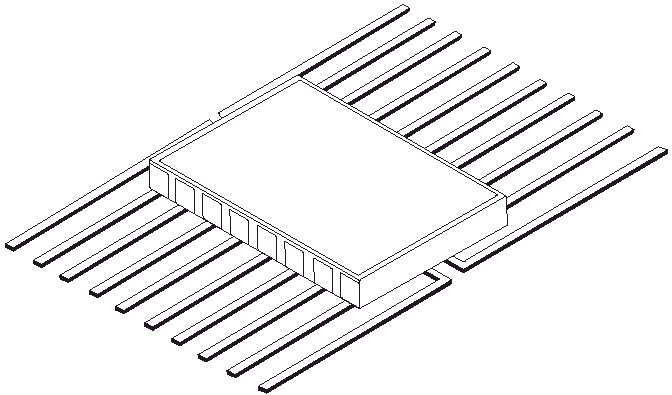

Flat Pack FP 20L
TopLine Dummy Component
For training, practice and evaluation

Quick Specs:
Pin Count 20L
Pitch 50 mil - 0.050" (1.27mm)
Body Size 0.40" x .40" (10.2x10.2mm)
Bottom Braze flat lead without tie-bar
Standard Packaging in carrier

Use and Applications:
IPC Solder Training Certification
Practice Lead Form and Trim
Equipment Evaluation
Prototype PWB

Availability:
Delivery Stock to 4 weeks

Typical Part Number Flat Leads without Tie-Bar:
FP20C50SQ.40B = Gold Leads. With Lid
FP20C50SQ.40B-DE = Gold Leads. Daisy Chain
FP20C50SQ.40B-DE-D = Gold Leads. Daisy Chain and Die
FP20C50SQ.40B-SC = Solder Coated (SnPb). With Lid


Part Numbering System
FP 20 C 50 SQ .40 B - -
Series Nbr Pins Lead
Info		 Pitch
Mils		 Body
Shape		 Body Size
Inch		 Braze - Options
Flat Pack
Dual Sides		 20 = 20 Leads Flat Leads
Without Tie-bar
Packed
in carrier		 50 Mils
0.050-inch
1.27mm		 Square 0.40"x.40"
10.2x10.2mm		 Bottom
Braze		   Blank = Gold Leads
SC = Solder SnPb
DE = Daisy Chain
DE-D = Daisy Chain with Die
Applications: solder training, lead forming and triming practice.



Daisy Chain Option -DE
