FP28C50R.40x.72S-SC
Flat Pack FP 28L
TopLine Dummy Component
For training, practice and evaluation

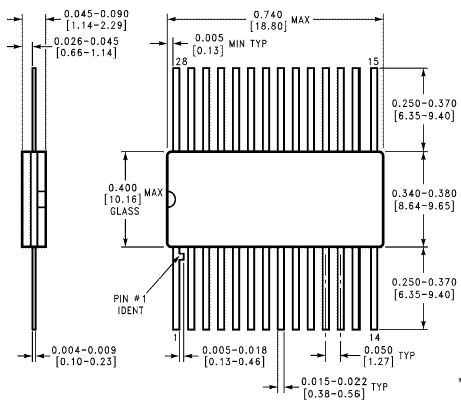

Click for Outline Drawing

 Quick Specs:
Pin Count 28L
Pitch 50 mil - 0.050" (1.27mm)
Body Size 0.40" x .72" (10.1x18.3mm)
Side Braze flat lead with tie-bar
Standard Packaging bulk tray

Use and Applications:
IPC Solder Training Certification
Practice Lead Form and Trim
Equipment Evaluation
Prototype PWB

Availability:
Delivery Stock to 4 weeks

Typical Part Numbers with Tie-Bar:
FP28C50R.40x.72S-SC = Solder SnPb
FP28C50R.40x.72S-DE-SC = Daisy Chain. Solder Leads


Part Numbering System
FP 28 C 50 R .40x.72 S - SC
Series Nbr Pins Lead
Shape		 Pitch
Mils		 Body
Shape		 Body Size
Inch		 Braze - Options
Flat Pack
Dual Sides		 28 = 28 Leads Flat Leads
Without Tie-bar		 50 Mils
0.050-inch
1.27mm		 Rectangular 0.40x.72"
10.1x18.3mm		 Side   -DE=Daisy Chain
-SC=Solder Dipped SnPb
Applications: solder training, lead forming and triming practice.



Daisy Chain Option -DE
