LQFP168 Kit
0.3mm Pitch


Actual Size: 4" x 5.5" (100 x 140mm)

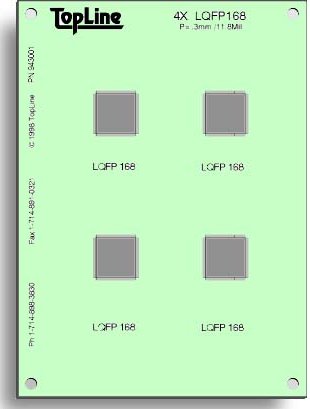

   Venture into the next frontier with our 0.3mm (11.8Mil) Kit. Warning! This is our most challenging kit.

Features:

  • Hot Air Soldering Leveling
  • LPI Solder Mask
  • FR4 Board .062"
  • Double Sided
  • Tooling Holes .125"
  • Fiducial Marks


    Click here to download our Kits catalog in PDF format.

    •   Manual
    Assembly    		 Machine Run
    Component Pitch
    Order #
    943000
    1 Kit
    Order #
    943006
    6 Kits
    Order #
    943012
    12 Kits
    Order #
    943025
    25 Kits
    Order #
    943050
    50 Kits
    Board   1 6 12 25 50
    LQFP168 0.3mm 4 25 50 100 200

    Optional Accessories
    Parts Placement Data X, Y, Theta ASCII File Order Number 943004
    Solder Paste Artwork, Gerber File, Order Number 943005
    Solder Paste Stencil, Order Number 943009, Call for Details

    Spare Parts
    Components Quantity Order Number
    PC Board Only 1 943001
    LQFP168 1 100823
    LQFP168 25 229636
    LQFP168 50 229637
