Monster Kit 2
Has Everything


Actual Size: 4" x 5.5" (100 x 140mm) per board

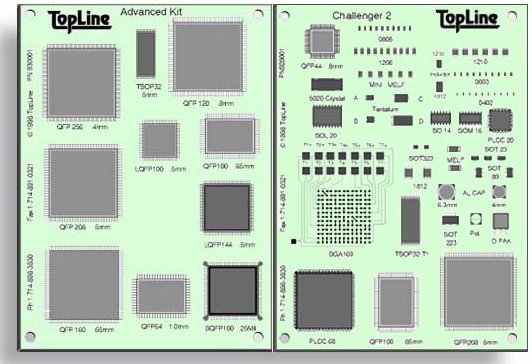

   The Moster Kit combines two kits into one. You get the new Challenger 2 Kit and the Advanced Kit.


Click here to download our Kits catalog in PDF format.

  Features:
  • Hot Air Soldering Leveling
  • LPI Solder Mask
  • FR4 Board .062"
  • Double Sided
  • Tooling Holes .125"
  • Fiducial Marks

    • BGA 169 After Mounting

      Manual Assembly Machine Run
    Component Pitch
    Order #
    948000
    1 Kit
    Order #
    948010
    10 Kits
    Order #
    948025
    25 Kits
    Order #
    948050
    50 Kits
    Order #
    948100
    100 Kits
    Board   1 10 25 50 100
    QFP256 0.4mm 1 10 25 50 100
    QFP208 0.5mm 2 25 50 100 200
    LQFP100 0.5mm 1 10 25 50 100
    TSOP32 0.5mm 1 10 20 50 100
    QFP160 0.65mm 1 10 25 50 100
    BQFP100 25 mils 1 10 50 50 100
    QFP100 0.65mm 2 25 50 100 200
    QFP120 0.8mm 1 10 25 50 100
    QFP44 0.8mm 1 10 25 50 100
    QFP64 1.0mm 1 10 25 50 100
    BGA169 1.5mm 1 10 25 50 100
    PLCC68 1.27mm 1 10 25 50 100
    PLCC20 1.27mm 2 10 50 50 100
    SO14 1.27mm 2 10 100 100 100
    SOM16 1.27mm 2 10 100 100 100
    SOL20 1.27mm 2 10 100 100 100
    SOT23 - 10 100 500 500 500
    SOT89 - 10 20 100 100 200
    SOT223 - 10 10 100 100 100
    SOT323 - 10 20 300 300 300
    DPAK - 1 10 50 50 100
    Crystal - 1 10 50 50 100
    Tantalum - 8 40 400 400 400
    Al Cap
    4mm & 6.3mm    		 - 4 20 200 200 200
    Chip 0402~1812 - 40 400 1750 2000 4000
    MELF/mini MELF - 20 200 750 750 750
    Inductor 1210~1812 - 4 20 350 350 350
    Potentiometer - 1 10 100 100 100

    Optional Accessories
    Parts Placement Data X, Y, Theta ASCII File Order Number 930004 / 928004
