TO257-PGMR-A6142

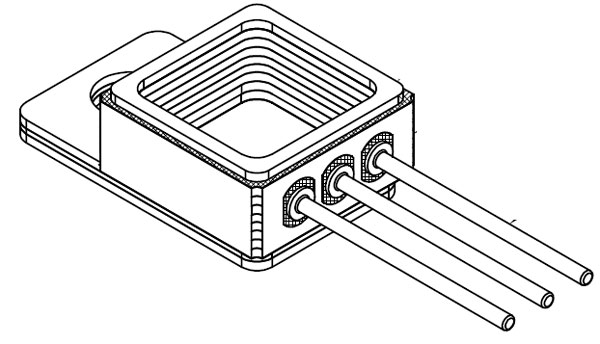

CERAMIC TO-257 Package
With Metal Seal Ring



Click for Outline Drawing

 Quick Specs:
Pin Count 3L
Pitch 2.54mm (0.100")
Body 10.55mm x 10.55mm x 5.77mm
Flange 6.0mm x 9.55mm W
Die Cavity 8.35mm x 8.35mm
Ceramic Body

Use and Applications:
Power Die Bonding

Availability:
Delivery Stock to 4 weeks

Part Numbers:
Header Ceramic Package:
TO257-PGMR-A6142

Gold Plated Step Lid:
PGMR-A9389 Kovar Gold Plated


Part Numbering System
Series - Option LID
Series Base Option Plating Lid Options
TO257-PGMR-A6142 Standard
KYCM®
260W/mK		 Au (Gold)
Standard		 -N = Open Cavity
Unattached Lid
Options: open Headers and cans available for packaging live die.
State your die size requirement.

Related Links:
Flat Pack   CERQUAD   CLCC   LCC   TO
