TO261 - SOT223
JEDEC TO-261AA Package
TopLine Dummy Component
For training, practice and evaluation


Click for Outline Drawing

Quick Specs:
Pin Count 3L
Pitch 1.9mm
Body 3.60 x 6.5mm
Small Outline Transistor/Diode

Use and Applications:
IPC Solder Training & Practice
Equipment Evaluation
Prototype PWB

Availability:
Delivery Stock to 4 weeks

Part Numbers:
SOT223
TO261AA


Part Numbering System
SOT223 E13A   T - Option
JEDEC Series Packaging   Plating - Daisy Chain
TO261AA
Plastic
Small Outline
Transistor
Diode
E13A = 13" Reel 2500pcs
E4A = 4" Reel 100pcs
B = Bulk
  T = Sn100
RoHS Pb-Free

Blank = SnPb
  Blank = None
DC123
DC124
ISO = Isolated
Options: Add Daisy Chain Drawing Number: DC124 or DC123 (Standard)

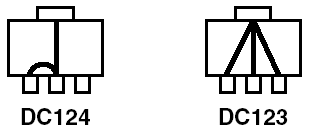

Top View of Internal Daisy Chain Option. Zero Ohm Jumper
