TO91

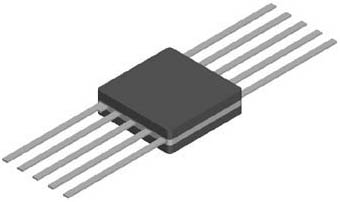

JEDEC TO-91 Package
TopLine Dummy Component
For training, practice and evaluation


Click for Outline Drawing

Quick Specs:
Pin Count 10L
Pitch 0.050" (1.27mm)
Body 0.25" x .25"
Flat Pack

Use and Applications:
IPC Solder Training & Practice
Equipment Evaluation
Prototype PWB

Availability:
Delivery Stock to 4 weeks

Part Numbers:
TO91
FP10C50R.25x.25S-SC


Part Numbering System
TO91 - Option
JEDEC Series - Plating
Plastic
Flat Pack
- S or SC = SnPb
G = Gold (Au)
Options: open cavity ceramic packages available for packaging live die.
State your die size requirement.
Options: Daisy Chain available.
