_Quick View Terminals
|
|
Click here
for this drawing in PDF format.
|
| Bifurcated Terminal "A" - 103xxx Series |
|

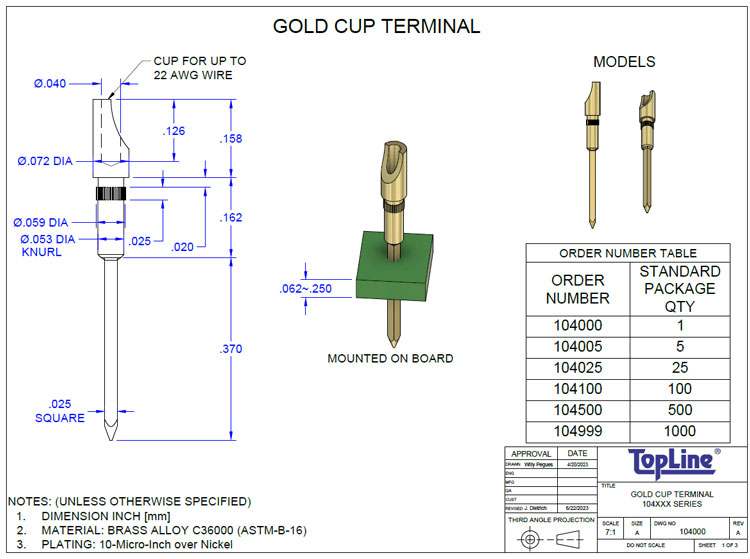

| Gold Cup Terminals - 104xxx Series |
|

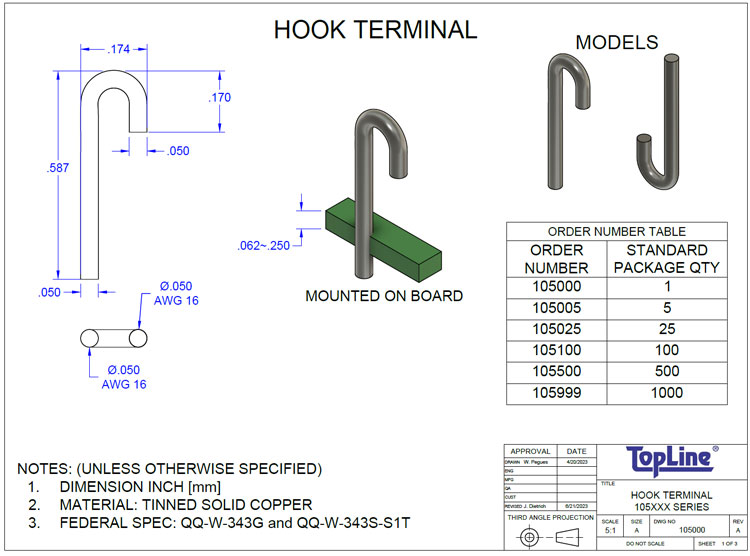

| Hook Terminals - 105xxx Series |
|

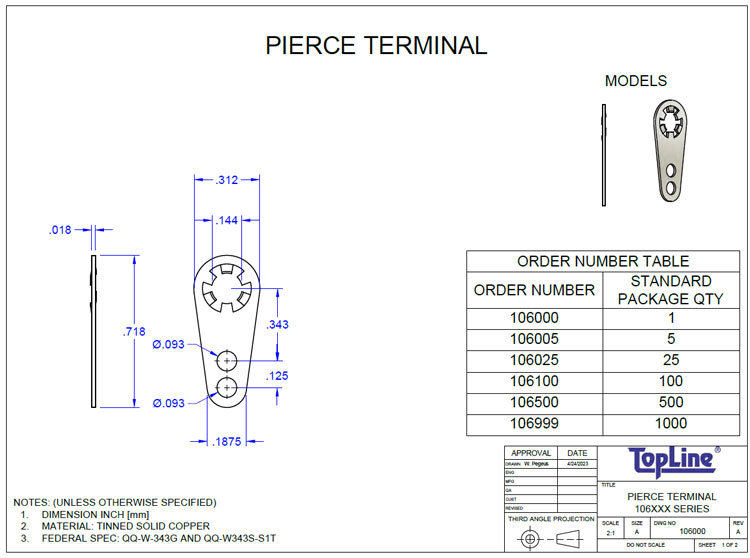

| Pierced Terminals - 106xxx Series |
|

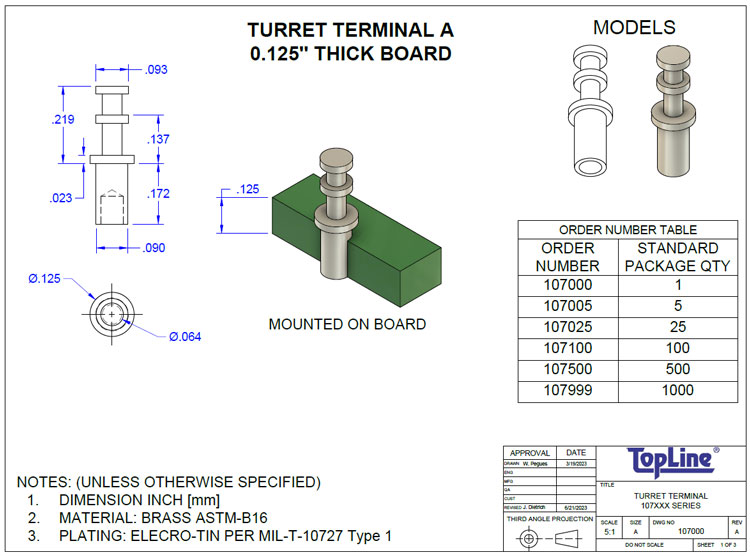

| Turret Terminal "A" - 107xxx Series |
|

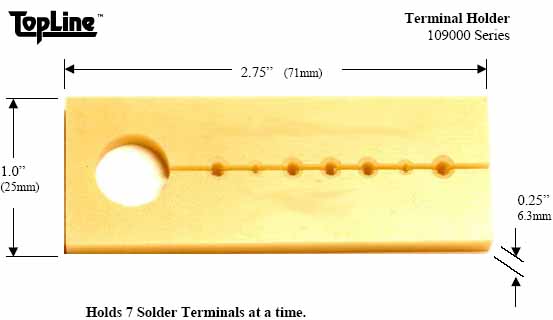

| Terminal Holder - 109000 Series |
|
|
Wire - 108000 Series Wire 20AWG - Black 108x20 Series Wire 22AWG - Red 108x22 Series Wire 24AWG - Yellow 108x24 Series Wire 26AWG - Blue 108x26 Series Available in 5FT, 1000FT and 5000FT lengths. |

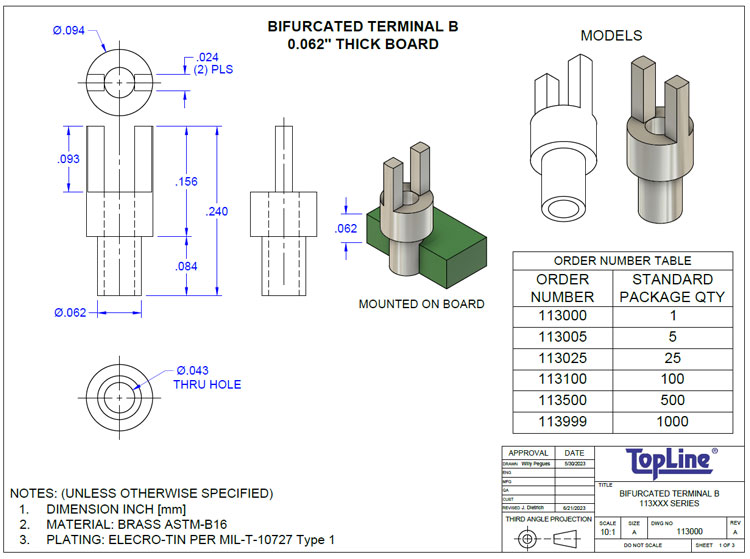

| Bifurcated Terminal "B" - 113xxx Series |
|

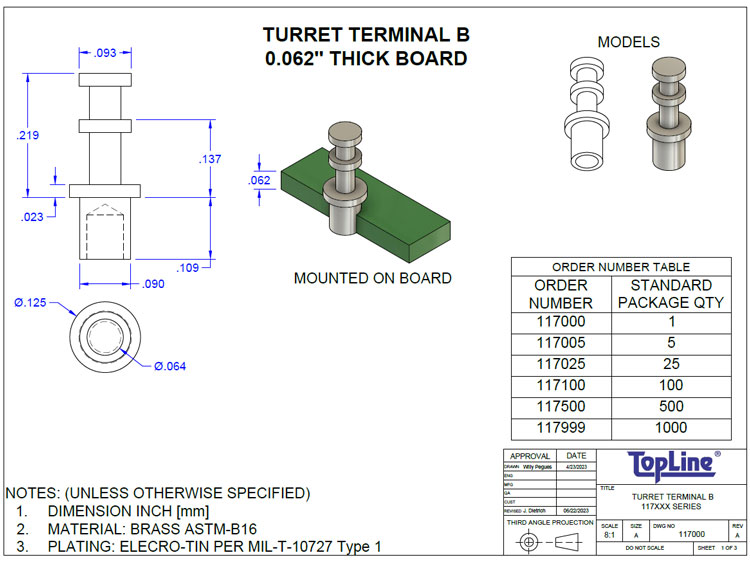

| Turret Terminal "B" - 117xxx Series |
|
 | |
