Mounting & Closures
BGA Sockets



Mounting Styles
Mounting Code Mounting Style View Raise Height Description

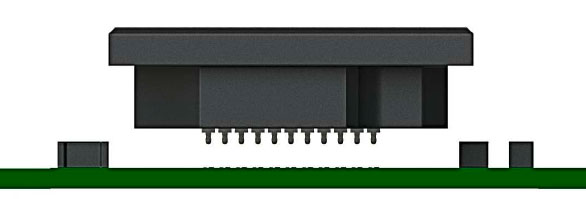

30 SMT Surface Mounting to Pads on PCB

Pitch     •    Dim A
1.27mm   •   1.2mm
1.00mm   •   0.8mm
0.80mm   •   0.6mm
0.65mm   •   0.4mm
0.50mm   •   0.4mm

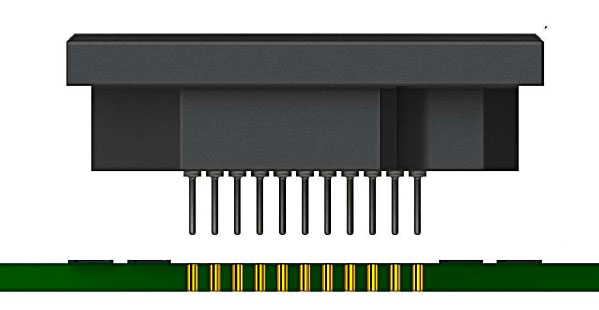

70 Thru-Hole Thru-Hole Mounting to PCB

Pitch     •    Dim A
1.27mm   •   3.3mm
1.00mm   •   2.8mm
0.80mm   •   2.8mm
0.65mm   •   2.3mm
0.50mm   •   2.3mm

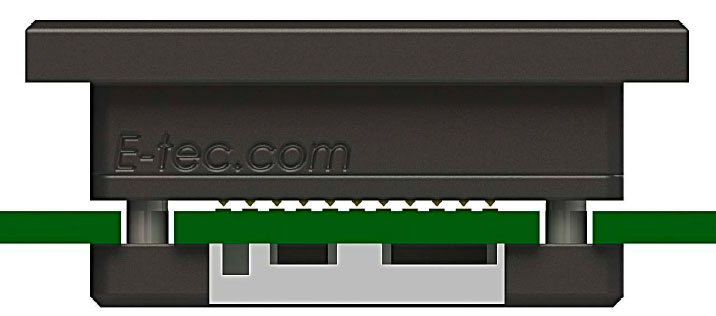

90 Direct
Compression
  Compression Mounting
Directly to Pads on PCB

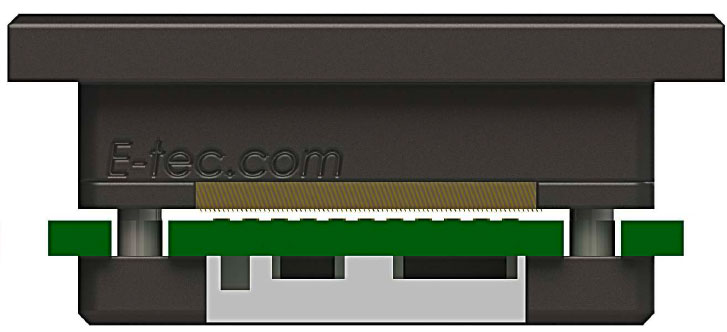

99 Elastomer
Compression
  Compression Mounting
Elastomer interposer to PCB

Closure Styles

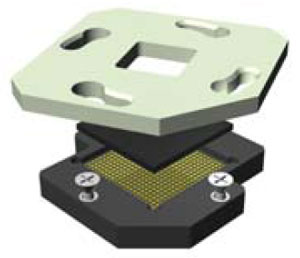

Twist Lock
Code W

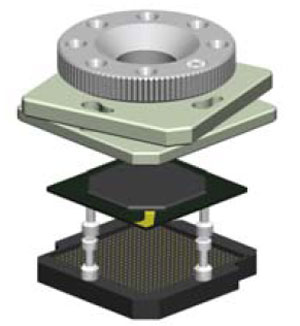

Fast Lock
Code F

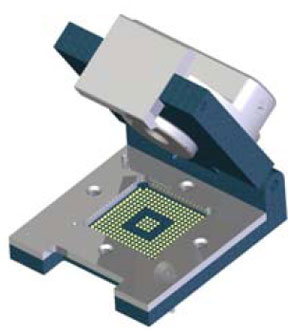

Clam Shell Knob
Code J

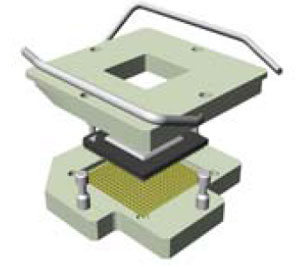

Lever Lock
Code Z

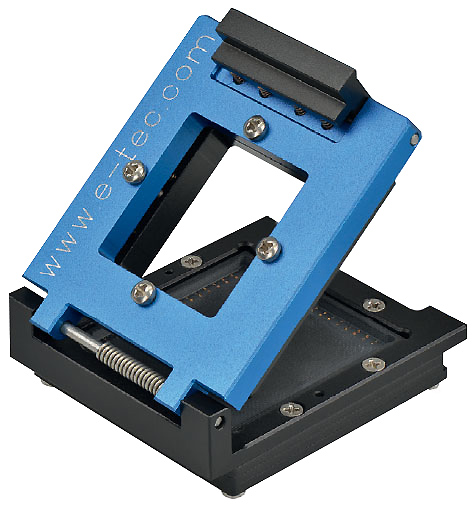

Open Top
Code H


E-Tec BGA Part Number System

    BU         W         217       -       08         70       -       17         MI         95
Device Type Closure Nbr Pins   Pitch Mounting Style   Pad Matrix Config. Plating
BU = BGA
Large Ball


BP = BGA
Small Ball


LP = LGA


CP = CCGA
W = TwistLock


F = FastLock


J = ClamShell
Knob Lock


C = ClamShell
Professional

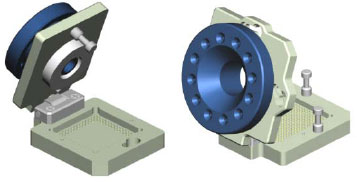

E = ClamShell
Economy


Z = LeverLock


Q = QuickLock


H = OpenTop
≤200 I/O


B = Spring Lock
Under Development


L = Open Top
Under Development


Nbr Pins
I/O
  03 = 0.35mm
04 = 0.40mm
05 = 0.50mm
06 = 0.65mm
07 = 0.75mm
08 = 0.80mm
10 = 1.00mm
12 = 1.27mm
15 = 1.50mm
Standard
30 = SMT

70 = Thru-Hole

90 = Compression
Solderless

99 = Compression
Elastomer



Special

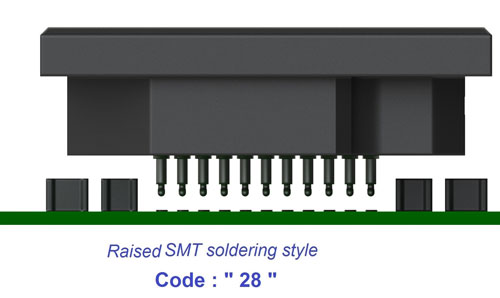

28 = Raised SMT

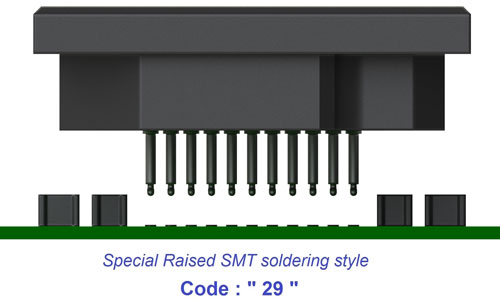

29 = High Raised SMT

91 = Compression High Freq

93 = Compression Special Design

/A = MGS Adaptor

9B = Solderball
  06~50
Pad Matrix

Example
17 = 17x17 Grid
MI = Standard
Config
Code
95 = Tin/Gold

55 = Gold
Compression
Only

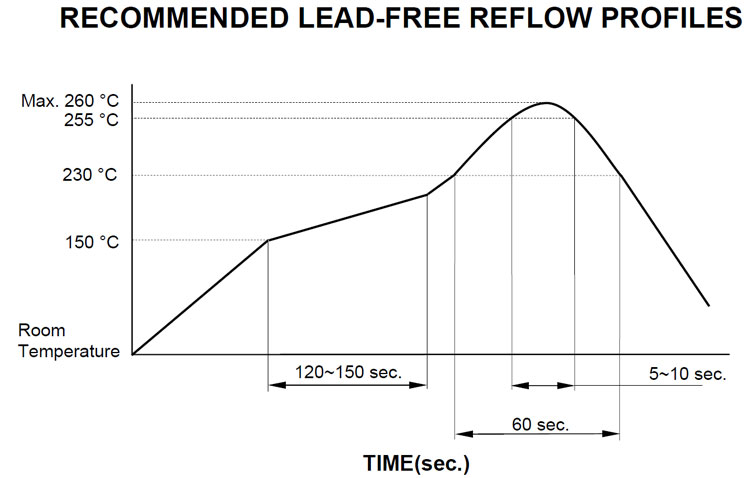

Reflow Profile Temperature
