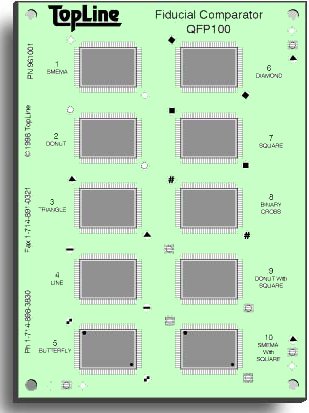

Fiducial Evaluation Kit
QFP100 0.65mm Pitch


Actual Size: 4" x 5.5" (100 x 140mm)

    Find the right fiducial for your system. This kit includes an assortment of 10 different fiducial geometries and solder mask clearances to check compatability of your vision placement equipment.
Don't take chances with your boards. "Zero-in" on the right fiducial by experimenting with our kit. Components are provided on tape and reel.

Features:

  • Hot Air Soldering Leveling
  • LPI Solder Mask
  • FR4 Board .062"
  • Double Sided
  • Tooling Holes .125"
  • Fiducial Marks

    Click here to download our Kits catalog in PDF format.

    •   Manual
    Assembly    		 Machine Run
    Component Pitch
    Order #
    961000
    1 Kit
    Order #
    961003
    3 Kits
    Order #
    961010
    10 Kits
    Order #
    961025
    25 Kits
    Order #
    961050
    50 Kits
    Board   1 3 10 25 50
    QFP100 0.65mm 10 25 100 250 500

    Optional Accessories
    Parts Placement Data X, Y, Theta ASCII File Order Number 961004
    Solder Paste Artwork, Gerber File, Order Number 961005

    Spare Parts
    Components Quantity Order Number
    PC Board Only 1 961001
    QFP100 25 229614
    QFP100 50 229616
