µBGA® - BGA46
Test Kit


Actual Size: 2.75" x 6.5" (7cm x 16.5cm)

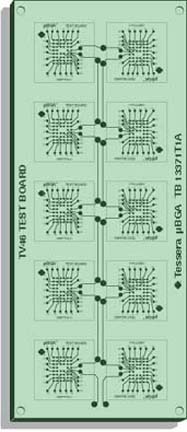

    Test board for 46 bump µBGA chip scale components. Each board has 10 coupons which allow for continuity testing of individual components as well as series test of all 10 components.

Parts are supplied in waffle trays. Tape and reel on special orders.

Features:

  • Gold Plated (ENIG) Au
  • LPI Solder Mask
  • Tetra functional FR4 Board .03" (0.8mm)
  • Single Sided
  • Tooling Holes .125"
  • Fiducial Marks

    Click here to download our Kits catalog in PDF format.

    • Single PCB Test Coupon After Mounting to Test Board

    Pad Diameter
    Bump Site .012" (.3mm)
    Local Fiducial .040" (1.0mm)

      Manual
    Assembly    		 Machine Run
    Component Pitch
    Order #
    921000
    1 Kit
    Order #
    921006
    6 Kits
    Order #
    921010
    10 Kits
    Order #
    921025
    25 Kits
    Order #
    921050
    50 Kits
    PC Board 921001
    ENIG NiAu    		   1 6 10 25 50
    µBGA CSP46
    Ball Sn63/Pb37
    Eutectic    		 0.75mm 10 60 99 250 495

    Optional Accessories
    Parts Placement Data ASCII File - Order Number 921004
    Solder Paste Artwork, Gerber File - Order Number 921005

    Spare Parts
    Components Quantity Order Number
    Test Board Only 1 921001
