PID Particle Impact Damper
NASA Technology Transfer
Attenuate Fundamental Frequency fo Vibration

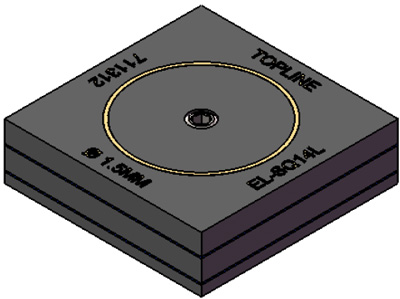

Inside P.I.D. Model


Watch 2 minute video Particle Impact Damper.

Call to Order 1-800-776-9888   •   Catalog

Problem: Harsh vibration causes premature component failure and damage to Printed Circuit Boards (PCB) assemblies.

Solution: Add PID to heritage hardware. PID extends hardware life. It is a lighter, simpler solution, reducing the need for redundant systems. After vibration hardening, old hardware is ready for new missions in new operating environments.

Vibration is attenuated by mounting a PID near the geometric center (anti-node) of the PCB. The damping effect increases reliability in the PCB. The PID may be located on either side of the board. PID may also be attached to an optional interposer bridge to avoid interference with existing components on the board.

The PID is housed in a hermetically sealed container that is filled to 90% with tungsten (W) balls. The counterbalance impact of tungsten balls in the PID dampens fundamental frequency fo mode vibrations in the PCB assembly. This maximizes energy transfer to the PID to dampen vibration. The weight of the PID is approximately 10% the mass of the PCB assembly.

Tungsten (W) is environmentally friendly. Tungsten's properties include high density and tensile strength. The PID can fully functional at extreme temperatures without derating.

Vibration at the fundamental frequency fo causes bending, fatigue and cracks in the PCB assembly. Excessive vibration from external excitations lead to catastrophic failure. NASA invented PID technology to reduce vibration and increase reliability in circuit board assemblies.

PID are commercially available COTS components. Mounting methods include: standard surface mount soldering, throughhole, screw mounting and epoxy mounting with permanent adhesives. Engineering development kits are currently under development.


PCB Board Assembly and PID
Weight & Size Chart
PCB Assembly
Weight
PID
ØDia
mm
PID
Height
mm
Tungsten (W)
Payload in PID
0.23 kg
(0.5 lbs)
19mm 19mm 23 g
(0.050 lbs)
25mm 15mm
0.5 kg
(1.1 lbs)
25mm 23mm 50 g
(0.11 lbs)
32mm 17mm
38mm 15mm
1.0 kg
(2.2 lbs)
25mm 35mm 100 g
(0.22 lbs)
32mm 25mm
38mm 20mm
1.5 kg
(3.3 lbs)
32mm 33mm 150 g
(0.33 lbs)
38mm 25mm
2.0 kg
(4.4 lbs)
32mm 40mm 200 g
(0.44 lbs)
38mm 30mm
3.0 kg
(6.6 lbs)
38mm 40mm 300 g
(0.66 lbs)
4.0 kg
(8.8 lbs)
45mm 40mm 400 g
(0.88 lbs)
5.0 kg
(11 lbs)
50mm 32mm 500 g
(1.1 lbs)
6.0 kg
(13 lbs)
50mm 38mm 600 g
(1.3 lbs)
Note: Consult TopLine for other sizes.



PID Simulation
  •  Card Simulation


Schematic
Particle Damper
Single Degree of
Freedom Oscillator

PID technology works without batteries or electrical power. The motion of the tungsten balls in the sealed PID housing removes vibratory energy from non-linear vibroacoustic environments such as PCB card assemblies. Losses and damping occur during impacts between the tungsten balls and the walls. The PID straightens the PCB at the central lobe and attenuates vibration by pushing and pulling the PCB in the opposite direction after the tungsten balls overcome gravity. PID is also suitable for tuned beam fixtures.

Schematic of PID and System
M = Mass of Card Assembly
K = Stiffness of Card at fo
C= Inherent Damping of Card
mp = Mass Tungsten Balls in PID

Inspired by GravityTM

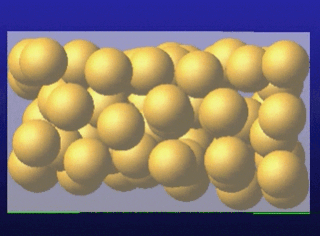

Simulation of Particle Impact Damper



Weibull Failure Analysis #1
A destructive life test was performed on NASA's Marshall Space Flight Center printed circuit card assemblies 4" x 7" (10 x 18cm) 0.090-inch (2.3mm) thick. Four 21mm x 21mm daisy-chained 400-I/O CCGA column grid array components were mounted on each card. One card was left undamped. A PID damper was epoxy mounted at the center of the second card. The cards were mounted side by side onto a vibration table and subjected to excessive vibrations. 19 channels on the undamped boards (without PID) failed within 12 minutes. By comparison, 19 channels on the damped boards (with PID) survived 5 hours (306 minutes) before ultimately failing. See YouTube Video.



Weibull Failure Analysis #2
Comparison was made between assemblies of two different card thickness: 0.070-inch (1.78mm) versus 0.090-inch (2.3mm). Card size 4" x 7" (10 x 18cm). 8 assemblies total. 4 assemblies of each thickness. Four 21mm x 21mm daisy-chained 400-I/O CCGA column grid array components were mounted on each card. 2 cards of each thickness were left undamped. A PID particle impact damper was epoxy mounted at the center of the other cards. Cards of same thickness were mounted side by side onto a vibration table and subjected to excessive vibrations. A channel failure was defined as a total increase in resistance greater than 1000 Ohms connected through 100 I/O columns during vibration testing. The time for each failure was recorded. A Weibull analysis of channel failures for damped and undamped boards of two thicknesses was recorded. In all cases, damped assemblies with PID survived longer. The damped thinner boards (0.070-inch) with PID survived longer than the undamped thicker board (0.090 inch) without PID. See NASA study Demonstrating Effect Particle Impact Damper

Acceleration measured
during Weibull Failure Analysis #2
Comparison of undamped and damped assembly.
Strain Spectral Densities measured
during Weibull Failure Analysis #2
Comparison of undamped and damped assembly.


Outline Drawing (PDF)

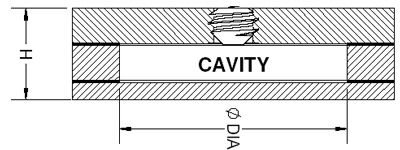

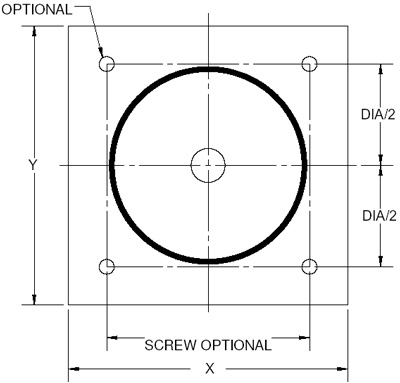

TYPICAL PID OUTLINE

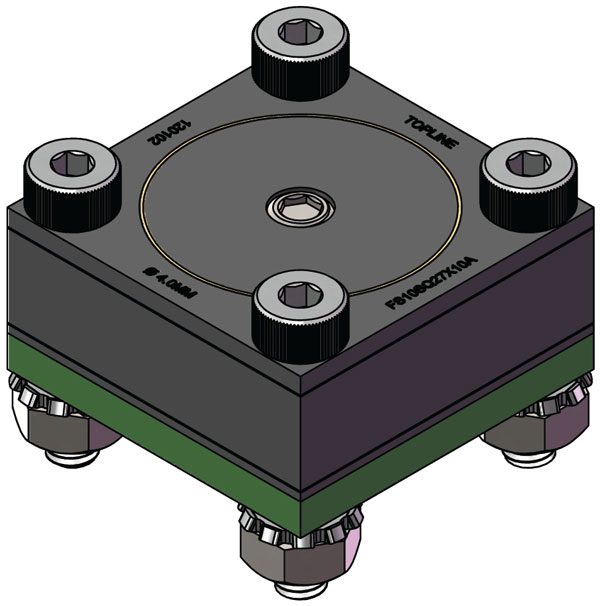

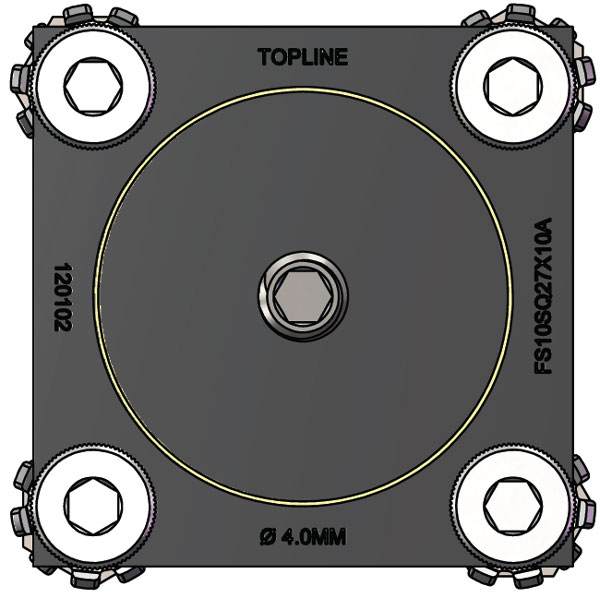

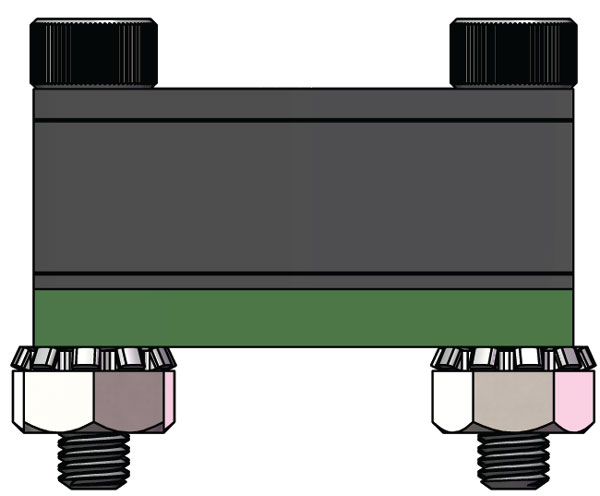

Example layout of PID as a development kit. The housing consists of a cylindrical canister. The threaded PID housing is screwed onto the flange mounted near the geometric center of the board. A small plugged hole at the top of the canister allows tungsten balls to be added or removed. The payload of tungsten balls is determined while observing vibration damping (attenuation). A final design can be fabricated for volume production after optimizing the system.

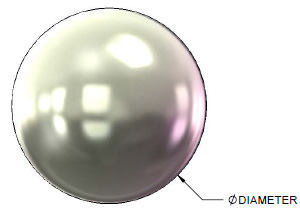

Tungsten Balls
Property of Tungsten

Tungsten (W) is an environmentally friendly substance of high density and tensile strength that can fully function at extremely low and very high temperatures.

  • Atomic Number 74
  • Density 19.3g/cc (@20°C)
  • Linear CTE 4.3 ppm/deg;C
  • Poisson's Ratio 0.284
  • Melting Point 3400°C
  • Tensile Strength 700~3400 MPa @25°C


  • Weights and Measures:
  • Size: Ø2.0mm
  • Weight 0.07405 gm each
  • 13,500 balls per kg

  • Size: Ø0.079"
  • Weight 0.00016315 lbs each
  • 6131 per lbs
  •



    Part Numbering System
        F         A         1.0         SQ         13x4.0         Rev
    Series Mounting
    on PCB
    Tungsten Payload
    Grams
    Exterior Shape Size (mm)
    Max
    Version/Option
    Series   •   Description

    SEALED (Filled) PID
    F = FR4 Case
    A = Aluminum Case

    Empty (Tunable) PID
    E = FR4 Single Layer
    K = Engineering Development Kit

    Hardware & Accessory
    B = Base Interposer Bridge

    C = Clamp System

    W = Unsawn Wafer Cavity Array
    CodeType

    A  =  Adhesive
    Glue/Epoxy

    L  =  LGA
    NiAu Solderable
    Bottom Terminal

    B  =  BGA
    SAC Solder Ball

    P  =  BGA
    SnPb Solder Ball

    S  =  Screw
    Fastener

    F  =  Flange
    Disconnect

    C = Clamping
    System
    WeightGrams
      Empty
    0.1 = 0.1 gm
    0.5 = 0.5 gm
    0.9 = 0.9 gm
    1.0 = 1.0 gm
    2.5 = 2.5 gm
    5.0 = 5.0 gm
    10 = 10 gm
    25 = 25 gm
    50 = 50 gm
    100 = 100 gm
    200 = 200 gm
    400 = 400 gm
    500 = 500 gm
    999 = 999 gm

    Other Mass Available
    CodeShape
    C = Cylindrical
    R = Rectangular
    SQ = Square
    Z = Custom
    SQUARE
    X/YHeight
    13 x 4.0
    19 x 4.5
    25 x 5.0
    35 x 6.5
    45 x 10
    Other Sizes Available


    Rectangle
     X  Y Z
    13 x 20 x 4.0
    19 x 25 x 4.5
    25 x 32 x 5.0
    32 x 50 x 10
    Other Sizes Available


    Option-Rev
    CodeVersion
    A • 01
    B • 02
    C • 03
    Z • 26
    - - - -
    BA • 27
    BB • 28
    BC • 29
    BZ • 52
    - - - -
    CA • 53
    CB • 54
    CC • 55
    CZ • 77
    - - - -
    DA • 78
    DB • 79
    DC • 80
    DU • 99


    Filled Drawing Number System

        1         1         591         1
    Series Mount Style Mass (gm)
    9 = Decimal Point
    Option Code
    CodeItem Description
    1 = PID
    Filled & Sealed

    2 = TBA
    3 = TBA
    4 = TBA
    CodeDescription
    1 = LGA
    2 = Screw
    3 = Adhesive
    4 = BGA SAC305
    5 = BGA SnPb
    9 = Custom
    CodeWeight
    001~008 = Accessory
    — — —
    908 = 0.08 gm
    912 = 0.12 gm
    948 = 0.48 gm
    962 = 0.62 gm
    993 = 0.93 gm
    — — —
    190 = 1.0 gm
    197 = 1.7 gm
    295 = 2.5 gm
    591 = 5.1 gm
    792 = 7.2 gm
    — — —
    010 = 10 gm
    024 = 24 gm
    052 = 52 gm
    — — —
    126 = 126 gm
    254 = 254 gm

    Code 9 = Decimal

    Other Mass Available
    Filled/Sealed
    CodeOption
    1 = Option A
    2 = Option B
    3 = Option C

    Other Options Available


    Empty Drawing Number System

        7         1         13         01
    Series Mount Style Package Type Option Code
    CodeItem Description
    5 = Engineering Development Kit
    6 = Interposer Bridge
    7 = Empty Cavity Package
    8 = Empty Wafer Array
    9 = Hardware & Accessories

    CodeDescription
    1 = LGA
    2 = Screw
    3 = Adhesive
    4 = BGA SAC305
    5 = BGA SnPb
    9 = Custom
    CodeSize
    10 = 10mm
    13 = 13mm
    15 = 15mm
    17 = 17mm
    23 = 23mm
    27 = 27mm
    35 = 35mm

    More Sizes
    Available
    CodeOption
    01 = Option A
    02 = Option B
    03 = Option C
    04 = Option D
    05 = Option E
    06 = Option F
    07 = Option G
    08 = Option H
    10 = Option J
    11 = Option K
    12 = Option L
    13 = Option M
    14 = Option N
    16 = Option P
    17 = Option Q
    18 = Option R
    19 = Option S
    20 = Option T
    21 = Option U
    22 = Option V
    23 = Option W
    24 = Option X
    25 = Option Y
    26 = Option Z
    CodeOption
    27 = Option BA
    28 = Option BB
    29 = Option BC
    30 = Option BD
    31 = Option BE
    32 = Option BF
    33 = Option BG
    34 = Option BH
    36 = Option BJ
    37 = Option BK
    38 = Option BL
    39 = Option BM
    40 = Option BN
    42 = Option BP
    43 = Option BQ
    44 = Option BR
    45 = Option BS
    46 = Option BT
    47 = Option BU
    48 = Option BV
    49 = Option BW
    50 = Option BX
    51 = Option BY
    52 = Option BZ
    CodeOption
    53 = Option CA
    54 = Option CB
    55 = Option CC
    56 = Option CD
    57 = Option CE
    58 = Option CF
    59 = Option CG
    60 = Option CH
    62 = Option CJ
    63 = Option CK
    64 = Option CL
    65 = Option CM
    66 = Option CN
    68 = Option CP
    69 = Option CQ
    70 = Option CR
    71 = Option CS
    72 = Option CT
    73 = Option CU
    74 = Option CV
    75 = Option CW
    76 = Option CX
    77 = Option CY
    78 = Option CZ
    CodeOption
    79 = Option DA
    80 = Option DB
    81 = Option DC
    82 = Option DD
    83 = Option DE
    84 = Option DF
    85 = Option DG
    86 = Option DH
    88 = Option DJ
    89 = Option DK
    90 = Option DL
    91 = Option DM
    92 = Option DN
    94 = Option DP
    95 = Option DQ
    96 = Option DR
    97 = Option DS
    98 = Option DT
    99 = Option DU

    Other Options
    Available

    ECCN: EAR99 Export Administration Regulations
    HS Code: 8542.90.0000 ELECTRONIC INTEGRATED CIRCUITS AND MICROASSEMBLY PARTS
    ITAR: Not Restricted.
