906000 Kit

Flip Chip Kit
Ceramic Substrate

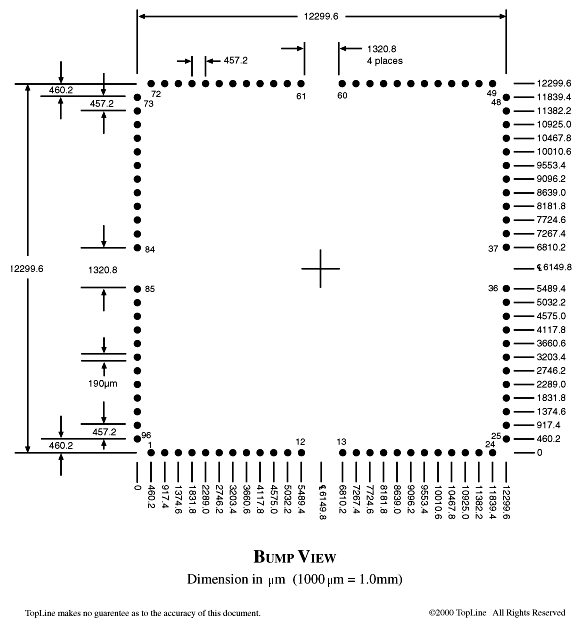

FC96 457µm (18 mils) Pitch
K&S PB18-500x500 (old FTC FTB500)

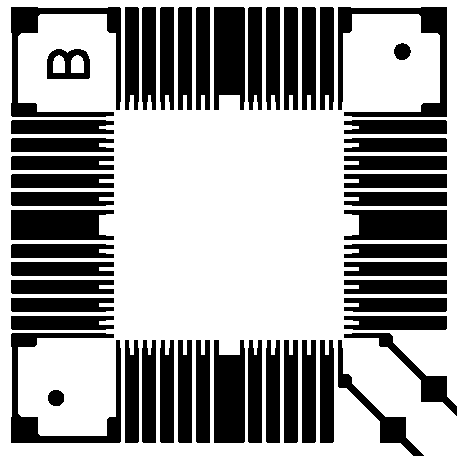

Single Site       Pad Detail      Quick View All Kits

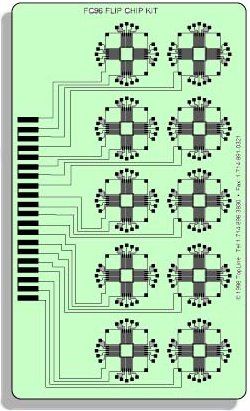

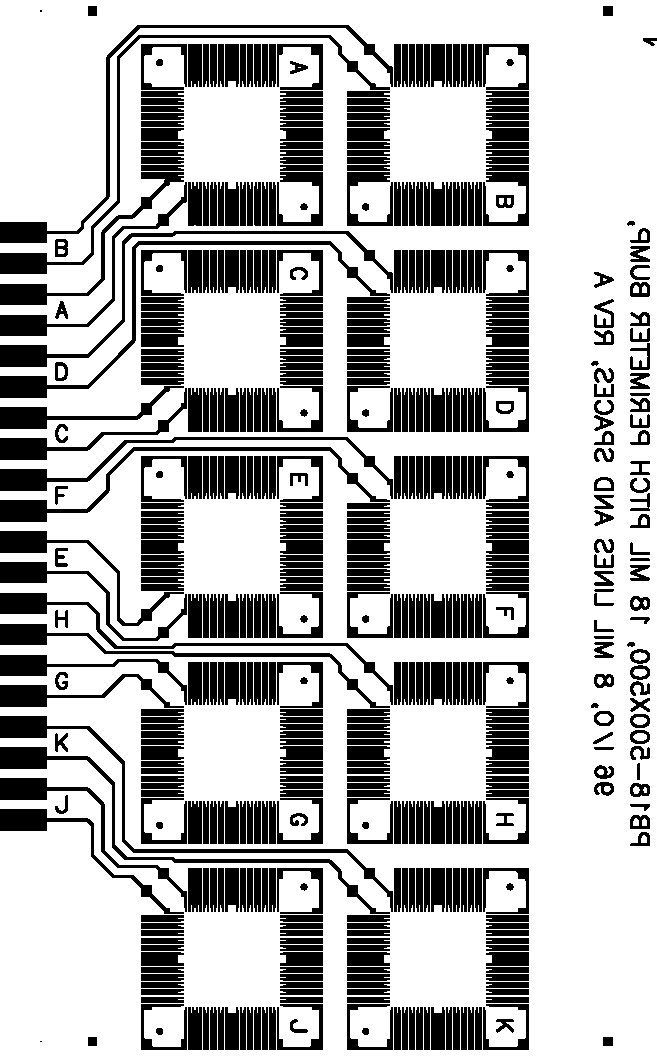

Ceramic single layer substrate for placement and daisy chain continuity testing after assembly. Substrate has 10 mounting sites for 96 bumps 12.7mm x 12.7mm    Go to--> 907000 Laminate kit

Ceramic Substrate

  • White Ceramic
  • Tin composite screened ink
  • No Fiducial Marks
  • traces 8 mil lines and spaces
  • Fingers .156" (4.0mm) pitch
  • Board 3.5" x 5.5" (89mm x 140mm)
  • Board Thickness .035" (0.89mm)

  • Manual Assembly or Machine Run
    Kit Contents Kit Order Number
    Ceramic Board 1
    Flip Chip FC96 9

    Optional Accessories
    Spare Board Only, Order Number 906001
