908000 Kit

Flip Chip Kit
Ceramic Substrate

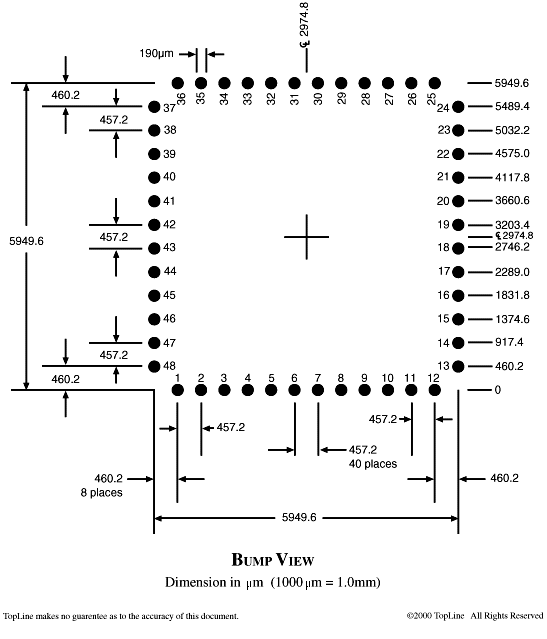

FC48 457µm (18 mils) Pitch
K&S PB18-250x250 (old FTC FTB250)

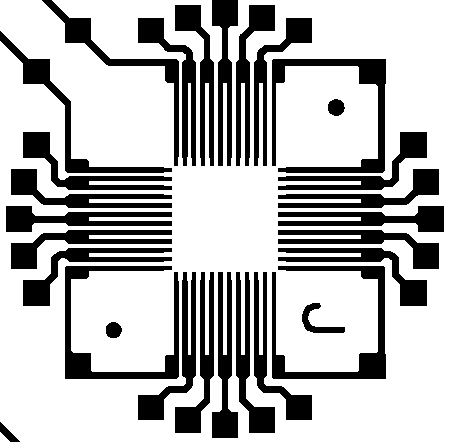

Single Site     Pad Detail     Quick View All Kits

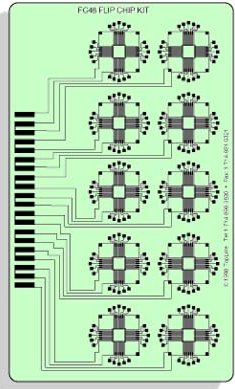

Ceramic substrate for placement and daisy chain continuity testing after assembly. Substrate has 10 mounting sites for 48 bumps 6.3mm x 6.3mm.
Go to--> 909000 Laminate Kit


Laminate Substrate:

  • White Ceramic
  • Silver composite screened ink
  • No Fiducial Marks
  • Traces 8 mil lines and spaces
  • Fingers .156" (4.0mm) pitch
  • Board 3.5" x 5.5" (89mm x 140mm)
  • Board Thickness .035" (0.89mm)


    • Manual Assembly or Machine Run
    B.O.M. Bill of Materials
    Kit Contents Kit Order Number
    908000
    Ceramic Board 1
    Flip Chip FC48
    Eutectic Sn63/Pb37    		 10

    Optional Accessories
    Spare Board Only, Order Number 908001
