Beginners Throughhole Kit
Entry Level Soldering Skills

Go to: Recertification Kit   •   Multipurpose Throughhole Kit

Plated Through Hole Kit
Machine Run and Hand Assembly

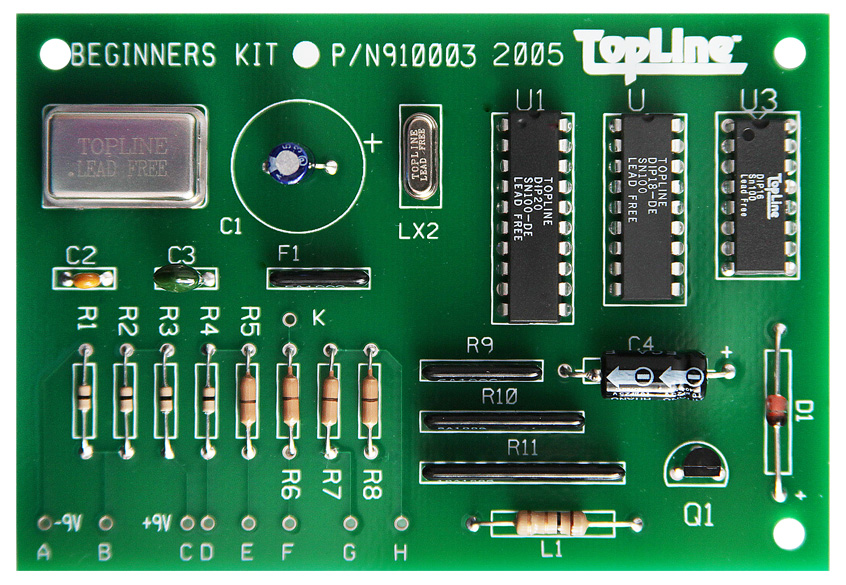

Enlarge: Top Side After Assembly
Board Size 2.75"x4.0" (7x10cm)



Kit includes the PC Board and a wide assortment of through hole components. Includes PDIP, axial lead and radial lead components.

Board Features:

  • Choice of Final finish:
        • HASL SnPb
        • Immersion Tin (Sn)
        • ENIG (Ni/Au)Gold
        • ENIPEG (NiPdAu)
        • OSP Copper
        • Immersion Silver
  • LPI Solder Mask - PSR4000 AUS5
  • FR4 Tg=170°C
  • Size - 2.75"x4.0" (7x10cm)
  • Thickness 0.062" (1.6mm)
  • 2-Layer - Double Sided
  • Solderable Land Pads Ø0.069" (Ø1.75mm)
  • Plated Holes Ø0.045" (Ø1.14mm)
  • Plated Holes Per Board: 120x
  • RoHS Compliant
  • Tooling Holes .15" (3.8mm)
  • Without Fiducials

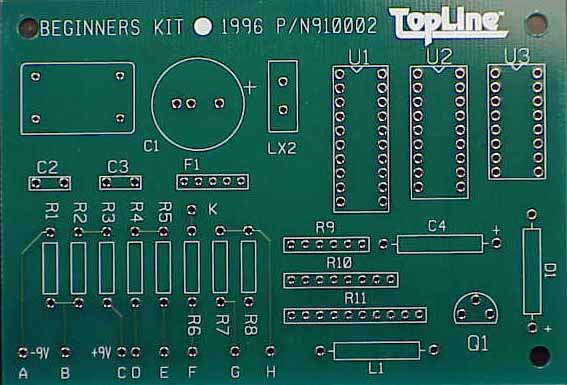

    Enlarge:  Top Side Before Assembly

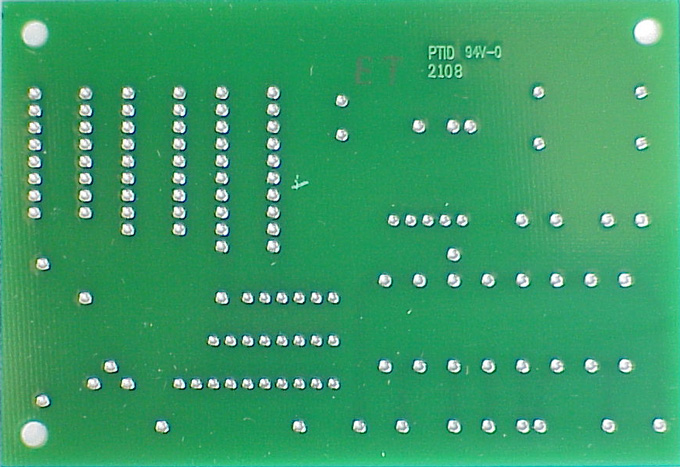

    Click for Bottom View

    		•

      BOM Kit Contents
    Multipurpose Throughhole Kit
    Kit Quantities Available
    Hand Assembly
    Kit BOM Reference
    Designator    		 Order #
    910X00
    1 Kit    		 Order #
    910X10
    10 Kits    		 Order #
    910X25
    25 Kits    		 Order #
    910X50
    50 Kits    		 Order #
    910X99
    100 Kits
    Board HASL - SnPb
    X = 0
    4th Digit Order#    		   1 10 25 50 100
    Board - Tin (Sn)
    X = 2
    4th Digit Order#    		 RoHS Pb-Free 1 10 25 50 100
    Board Silver (Ag)
    X = 6
    4th Digit Order#    		 RoHS Pb-Free 1 10 25 50 100
    Board ENIPEG (NiPdAu)
    X = 7
    4th Digit Part#    		 RoHS Pb-Free 1 10 25 50 100
    Board OSP (Cu)
    X = 8
    4th Digit Part#    		 RoHS Pb-Free 1 10 25 50 100
    Board - ENIG
    Gold (Ni/Au)
    X = 9
    4th Digit Order#    		 RoHS Pb-Free 1 10 25 50 100
    Oscillator LX0 1 10 25 50 100
    Crystal LX2 1 10 25 50 100
    Aluminum Cap C1 1 10 25 50 100
    Ceramic Capacitor C2 1 10 25 50 100
    Film Capacitor C3 1 10 25 50 100
    Axial Aluminum Cap C4 1 10 25 50 100
    Inductor L1 1 10 25 50 100
    Resistor Network SIP6 R9 1 10 25 50 100
    Resistor Network SIP8 R10 1 10 25 50 100
    Resistor Network SIP10 R11 1 10 25 50 100
    Filter F1 1 10 25 50 100
    Transistor TO92 Q1 1 10 25 50 100
    Diode D1 1 10 25 50 100
    DIP16 IC U1 1 10 25 50 100
    DIP18 IC U2 1 10 25 50 100
    DIP20 IC U3 1 10 25 50 100
    Resistor 1/8W R1-4 4 40 100 200 400
    Resistor 1/4W R5-8 4 40 100 200 400
    Total Components - 24 240 600 1200 2400

    Download Solder Paste Gerber & Parts Placement Data
    Step 1. Click Here for TopLine's Document Center. Sign up and Log in.
    Step 2. Click link "Gerber Files"
    Step 3. Click link "910001a" Multi Purpose Throughhole
    Step 4. Download files

    Kit Order Number System
    910 2 # #
    Series Board Finish Quantity
    910=Hand Assembly
    2.75"x5.0" (7x10cm)    		 0 = HASL
    2 = Tin (Sn)
    6 = Silver (Ag)
    7 = ENIPEG (NiPdAu)
    8 = OSP (Cu)
    9 = ENIG Gold (NiAu)    		 00 = 01 Kits
    10 = 10 Kits
    25 = 25 Kits
    50 = 50 Kits
    99/100 = 100 Kits

    Other quantites available.

    Spare Boards
    Board Finish Lead-Free
    Pb-Free    		 Order Number
    HASL (SnPb) Non RoHS 910002
    Tin (Sn) RoHS 910003
    Silver (Ag) RoHS 910006
    ENIPEG (NiPdAu) RoHS 910007
    OSP (Cu) RoHS 910008
    ENIG Gold (Ni/Au) RoHS 910009


    Spare Parts
    Plating Lead-Free
    Pb-Free    		 SnPb
    Tin/Lead
    Tin
    Sn    		 RoHS Ask for available
    components
    Tin/Lead
    SnPb    		 Non-RoHS Ask for available
    components
