ECONO IV Mixed Technology
Low Cost Recertification Kit

Go to: Beginners Throughhole Kit   •   Multipurpose Throughhole Kit   •   Mixed Technology 2 Kit

Econo IV Recertification Kit
Mixed Technology
Hand Assembly

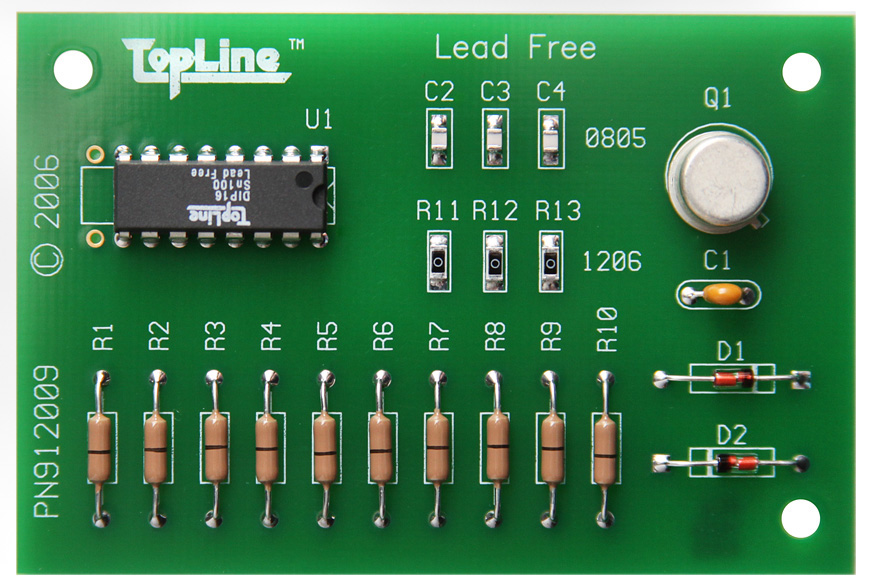

Enlarge: Top Side After Assembly
Board Size 2.0"x3.0" (5x7.5cm)

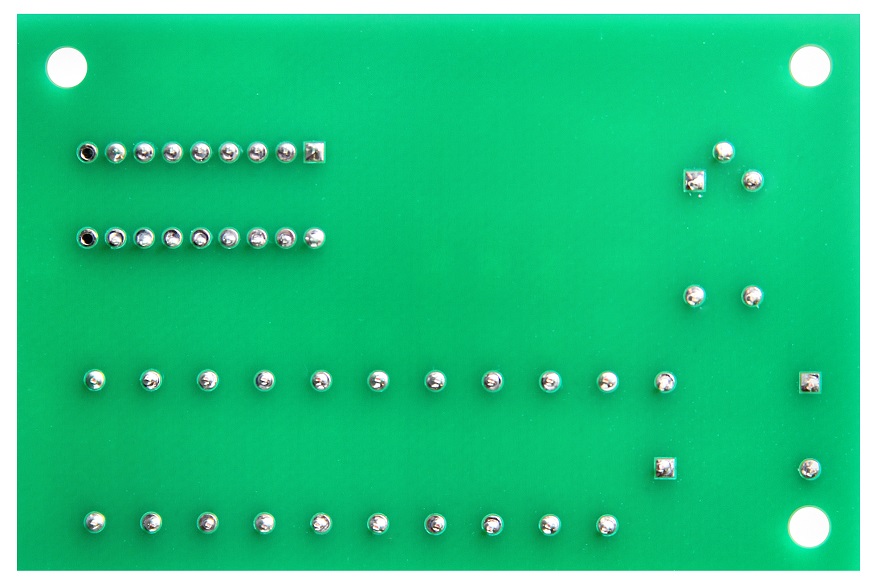

Click Solder Side Bottom After Assembly



Kit includes the PC Board and assortment of SMT and through hole components. Includes PDIP, axial lead and radial lead components, diodes, transistor , chip resistors and chip capacitors.

Board Features:

  • Choice of Final finish:
        • HASL SnPb
        • Immersion Tin (Sn)
        • ENIG (Ni/Au)Gold
  • LPI Solder Mask - PSR4000 AUS5
  • FR4 Tg=170°C
  • Size - 2.0"x3.0" (5x7.5cm)
  • Thickness 0.062" (1.6mm)
  • 2-Layer - Double Sided
  • Solderable Land Pads Ø0.075" (Ø1.9mm)
  • Plated Holes Ø0.036" (Ø0.92mm)
  • Plated Holes Per Board: 120x
  • RoHS Compliant
  • Tooling Holes .125" (3.17mm)
  • Without Fiducials

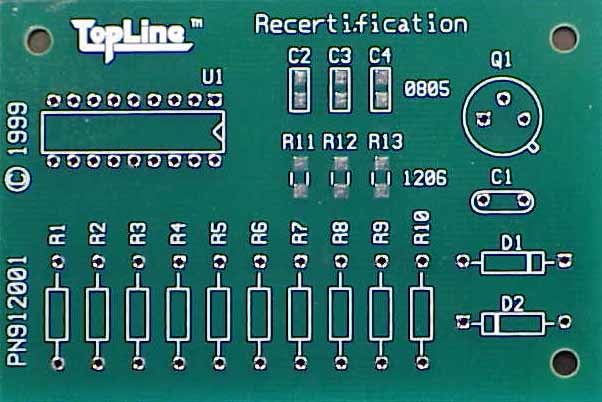

    Enlarge:  Top Side Before Assembly

    •
      BOM Kit Contents
    Recertification Kit
    Kit Quantities Available
    Hand Assembly
    Kit BOM Reference
    Designator    		 Order #
    912X00
    1 Kit    		 Order #
    912X10
    10 Kits    		 Order #
    912X25
    25 Kits    		 Order #
    912X50
    50 Kits    		 Order #
    912X99
    100 Kits
    Board HASL - SnPb
    X = 0
    4th Digit Order#    		   1 10 25 50 100
    Board - Tin (Sn)
    X = 2
    4th Digit Order#    		 RoHS Pb-Free 1 10 25 50 100
    Board - ENIG
    Gold (Ni/Au)
    X = 9
    4th Digit Order#    		 RoHS Pb-Free 1 10 25 50 100
    DIP16 U1 1 10 25 50 100
    TO-5 Q1 1 10 25 50 100
    CK05 Radial Cap C1 1 10 25 50 100
    0805 chip C2~C4 4 40 100 200 400
    DO-35 D1~2 2 20 50 100 200
    1/4W Res R1~R10 10 100 250 500 1000
    1206 Chip R11~R13 4 40 100 200 400
    Total Components - 21 210 525 1050 2100

    Download Solder Paste Gerber & Parts Placement Data
    Step 1. Click Here for TopLine's Document Center. Sign up and Log in.
    Step 2. Click link "Gerber Files"
    Step 3. Click link "912001a" Recertification
    Step 4. Download files

    Kit Order Number System
    912 0 # #
    Series Board Finish Quantity
    912=Hand Assembly
    2.0"x3.0" (5x7.5cm)    		 0 = HASL
    2 = Tin (Sn)
    9 = ENIG Gold (NiAu)    		 00 = 01 Kits
    10 = 10 Kits
    25 = 25 Kits
    50 = 50 Kits
    99/100 = 100 Kits

    Other quantites available.

    Spare Boards
    Board Finish Lead-Free
    Pb-Free    		 Order Number
    HASL (SnPb) Non RoHS 912000
    Tin (Sn) RoHS 912002
    ENIG Gold (Ni/Au) RoHS 912009


    Spare Parts
    Plating Lead-Free
    Pb-Free    		 SnPb
    Tin/Lead
    Tin
    Sn    		 RoHS Ask for available
    components
    Tin/Lead
    SnPb    		 Non-RoHS Ask for available
    components
