BGA256/272 Kit
1.27mm Pitch

Go to: More Kits

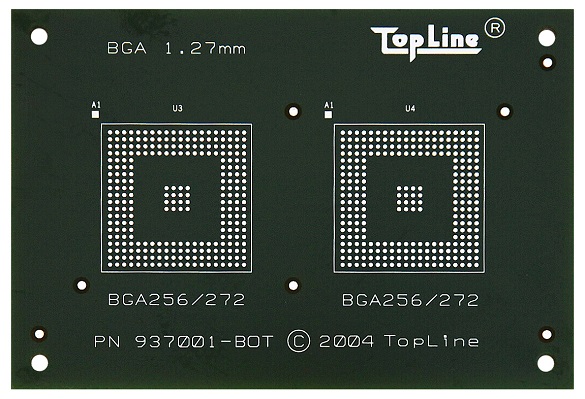

Enlarge: Bare Board Top

Board Size 2.75"x4.0" (7x10cm)
Same patterns repeated on bottom side.



TopLine BGA256/272 Kit with 1.27mm Pitch. Includes non-daisy chain BGA. TopLine's most economical BGA kit. Use this kit to practice placement, soldering and rework.

Board Features:

  • Choice of Final finish:
        • Immersion Tin (Sn)
        • ENIG (Ni/Au)Gold
        • HASL SnPb
  • LPI Solder Mask - PSR4000 AUS5
  • FR4 Tg=170°C
  • Size - 2.75"x4.0" (7x10cm)
  • Thickness 0.062" (1.6mm)
  • Lead Free RoHS Version
  • Double Sided - Patterns repeat on both sides.

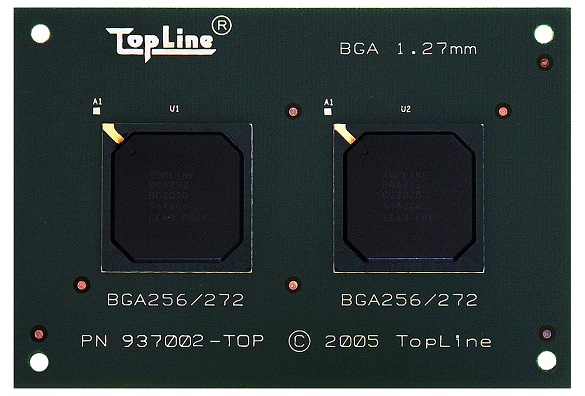

    Enlarge Assembly:  Top

    		•

      BOM Kit Contents
    BGA256/272 Kit
    Kit Quantities Available
    Kit BOM Components
    Per
    Board
    Order #
    937X00
    1 Kit
    Order #
    937X10
    10 Kits
    Order #
    937X20
    20 Kits
    Order #
    937X40
    40 Kits
    Order #
    937X80
    80 Kits
    Board HASL - SnPb
    X = 0
    4th Digit Order#    		 Tin-Lead 1 10 20 40 80
    Board - Tin (Sn)
    X = 2
    4th Digit Order#    		 RoHS Pb-Free 1 10 20 40 80
    Board - ENIG
    Gold (Ni/Au)
    X = 9
    4th Digit Order#    		 RoHS Pb-Free 1 10 20 40 80
    BGA256/272
    Size 27x27mm
    Pitch 1.27mm (50mil)    		 2 2 20 40 80 160


    Free Download Solder Paste Gerber & Parts Placement Data
    Step 1. Click Here for TopLine's Document Center. Sign up and Log in.
    Step 2. Click link "Gerber Files"
    Step 3. Click link "937001a" BGA256/272
    Step 4. Download files


    Kit Order Number System
    937 0 # #
    Series Board Finish Quantity
    BGA256/272

    Board Size:
    2.75"x4.0" (7x10cm)    		 0 = HASL
    2 = Tin (Sn)
    9 = ENIG Gold (NiAu)    		 00 = 1 Kit
    10 = 10 Kits
    20 = 20 Kits
    40 = 40 Kits
    80 = 80 Kits

    Other quantites available.

    Spare Boards
    Board Finish Lead-Free
    Pb-Free    		 Order Number
    HASL (Sn/Pb) Tin-Lead 937001
    Tin (Sn) RoHS 937002
    ENIG Gold (Ni/Au) RoHS 937009
      *Check Availability


    Spare Parts
    Full range of RoHS Lead Free and Tin-Lead spare parts available.
    Ask for quote on Spare Parts Kit for second side of board.
    Contact TopLine for to discuss your requirements.
