Econo II Mixed Technology Kit
Fine-Pitch, SMT & Throughhole

Go to: More Kits

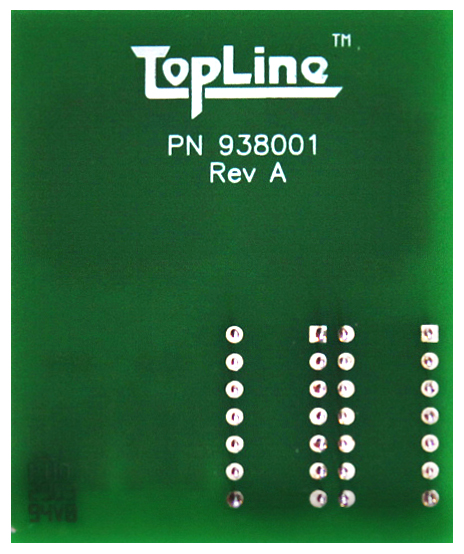

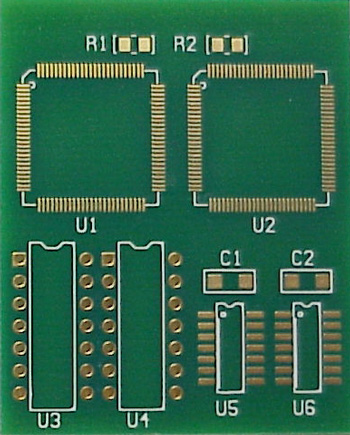

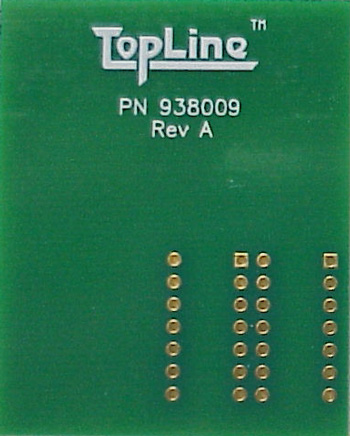

Enlarge: Bare Board  Top   •   Bottom

Board Size 1.62"x2.0" (4x5cm)
With Plated Through holes.



TopLine Econo II Mixed Technology Kit. Includes Fine-pitch TQFP, SOIC , DIP Throughhole and chip resistors and capacitors. This is our most economical mixed technology kit. Popular components. This kit is low cost way for employment agencies to quickly certify the competency of assemblers.

Board Features:

  • Choice of Final finish:
        • Immersion Tin (Sn)
        • ENIG (Ni/Au)Gold
        • HASL SnPb
  • LPI Solder Mask - PSR4000 AUS5
  • FR4 Tg=170°C
  • Size - 1.62"x2.0" (4x5cm)
  • Thickness 0.062" (1.6mm)
  • Lead Free RoHS Version
  • Plated Throughholes (PTH)

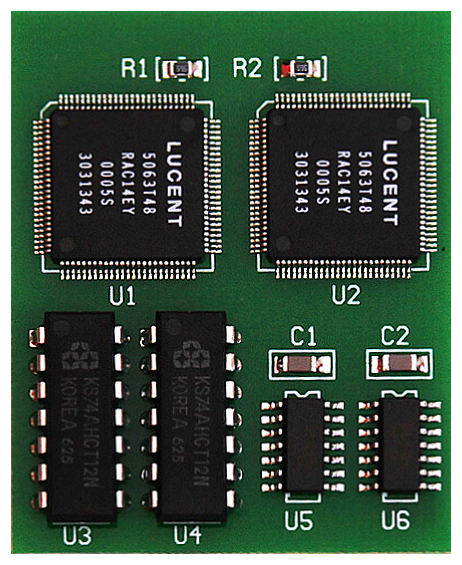

    Enlarge Assembly:  Top   •   Bottom

    		•

      BOM Kit Contents
    Econo II Kit
    Kit Quantities Available
    Kit BOM Components
    Per
    Board
    Order #
    938X00
    1 Kit
    Order #
    938X10
    10 Kits
    Order #
    938X25
    25 Kits
    Order #
    938X50
    50 Kits
    Order #
    938X99
    100 Kits
    Board HASL - SnPb
    X = 0
    4th Digit Order#    		 Tin-Lead 1 10 25 50 100
    Board - Tin (Sn)
    X = 2
    4th Digit Order#    		 RoHS Pb-Free 1 10 25 50 100
    Board - ENIG
    Gold (Ni/Au)
    X = 9
    4th Digit Order#    		 RoHS Pb-Free 1 10 25 50 100
    TQFP100
    Size 14x14mm
    Pitch 0.5mm (19.7mil)    		 1 1 10 25 50 100
    SO14
    Pitch 1.27mm (50mil)    		 2 2 20 50 100 200
    DIP14
    Pitch 2.54mm (100mil)    		 2 2 20 50 100 200
    0805 Resistor
    Metric 2012    		 10 10 100 250 500 1000
    1206 Capacitor
    Metric 3216    		 10 10 100 250 500 1000


    Free Download Solder Paste Gerber & Parts Placement Data
    Step 1. Click Here for TopLine's Document Center. Sign up and Log in.
    Step 2. Click link "Gerber Files"
    Step 3. Click link "938001a" Econo II
    Step 4. Download files


    Kit Order Number System
    938 0 # #
    Series Board Finish Quantity
    Econo II

    Board Size:
    1.62"x2.0" (4x5cm)    		 0 = HASL
    2 = Tin (Sn)
    9 = ENIG Gold (NiAu)    		 00 = 1 Kit
    10 = 10 Kits
    25 = 25 Kits
    50 = 50 Kits
    99 = 100 Kits

    Other quantites available.

    Spare Boards
    Board Finish Lead-Free
    Pb-Free    		 Order Number
    HASL (Sn/Pb) Tin-Lead 938001
    Tin (Sn) RoHS 938002
    ENIG Gold (Ni/Au) RoHS 938009
      *Check Availability


    Spare Parts
    Full range of RoHS Lead Free and Tin-Lead spare parts available.
    Ask for quote on Spare Parts Kit for second side of board.
    Contact TopLine for to discuss your requirements.
